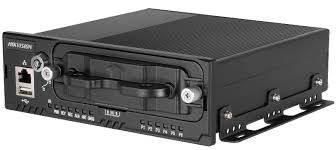

The Hikvision AE-MN5043(RJ45) is a 4-channel Mobile NVR designed specifically for vehicle environments like trucks, buses, and delivery vans.
The “(RJ45)” in the model name is the critical identifier: while many mobile NVRs use specialized 4-pin or 6-pin aviation connectors that require adapter cables, this model features standard RJ45 Ethernet ports on the rear for direct “plug and play” with standard IP cameras.
4-ch IP cameras connectable via PoE interfaces, and 4-ch IP cameras extendable via PoE switch.
Up to 5MP resolution of H.264/H.265 compression for each IP camera.( *Support this function since V5.6.4 )
Pluggable dummy HDD for HDD with up to 2 TB capacity.
User-friendly GUI providing easy and flexible operations.
COMES WITHOUT Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions. NEED 4G/WIFI MODULE?
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support recording backup on redundant HDD/SSDs.
