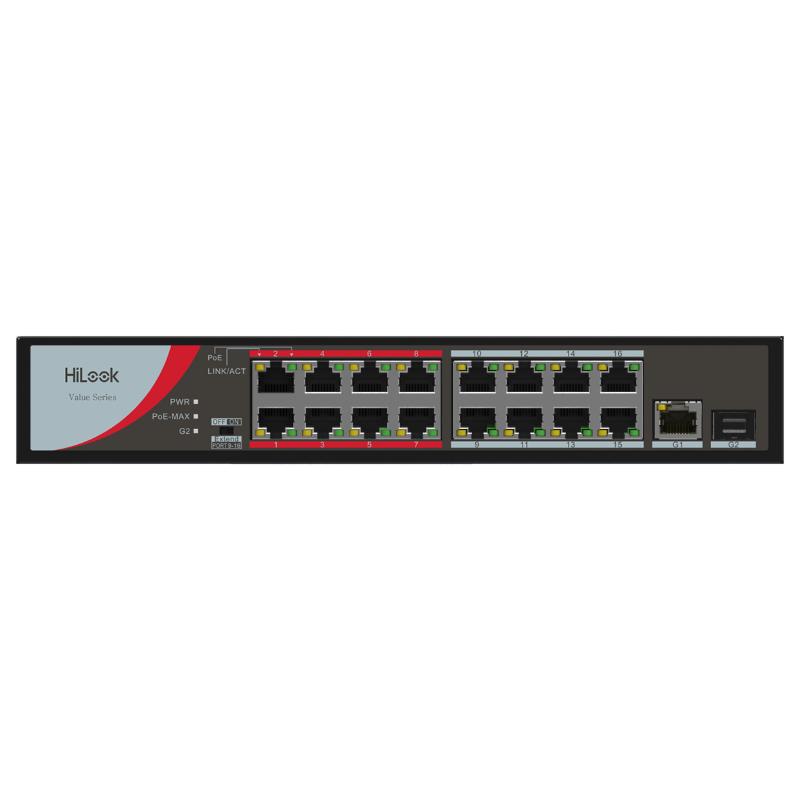

Hikvision NS-0318P-130(B) 16Port 100 Mbps Long-Range PoE Unmanaged Switch with Gigabit Uplink and 250m Extend Mode

The Hikvision NS-0318P-130(B) is a 16-port 100 Mbps unmanaged PoE switch designed for high-density IP surveillance systems. It features 16 × 100 Mbps PoE ports, one 1000 Mbps RJ45 uplink port, and one 1000 Mbps SFP fiber optical slot for high-speed connectivity. The switch supports “Extend Mode,” which allows for power and data transmission up to 250 meters over Cat5e or Cat6 cabling at a reduced speed of 10 Mbps. It provides a total PoE power budget of 130 W and includes 6 KV surge protection to ensure reliability in harsh electrical environments.

16 × 100 Mbps PoE ports (IEEE 802.3af/at), with up to 30 W per port

1 × 1000 Mbps RJ45 uplink port and 1 × 1000 Mbps SFP fiber port

Extend mode enables long‑distance PoE (up to 250 m on ports 9–16)

130 W overall PoE power budget, plus robust 6 kV surge protection

Compact, rugged metal housing with IP-grade durability for outdoor-ready deployment

The Hikvision NS‑0318P‑130(B) is a high-capacity, unmanaged PoE switch featuring 16 fast Ethernet PoE ports alongside gigabit uplinks over RJ45 and SFP, ideal for powering and connecting IP cameras. With extend mode capability reaching up to 250 metres, plus surge protection and full PoE functionality, it delivers reliable long-range network access in demanding environments.
