Dahua HAC-HDW2221R-Z
POSMarket SKU: Z18349

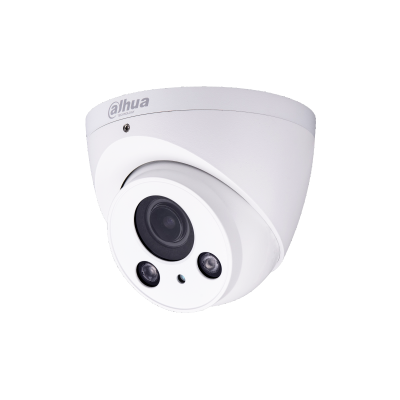

HAC-HDW2221R-Z: 2MP WDR HDCVI IR Eyeball Camera
2MP WDR HDCVI IR Eyeball Camera.
Product Overview
Committed to the mission of ''Enabling a safer society and smarter living'', Dahua Technology will adhere to its core value of ''customer-centered,'' in order to provide the market with excellent quality and service, to create more value for customers, and make unremitting efforts to build a safe, intelligent, convenient and efficient society.
At Tensor Security, you will find a wide variety of alarm products, ranging from motion detectors and kits, to remotes, keypads and accessories.
Need help finding the right alarm system? Ask us about 2MP WDR HDCVI IR Eyeball Camera.
Features
- 120dB true WDR, 3DNR
- Max 30fps@1080P
- HD and SD dual-output
- 2.7-12mm motorized lens
- Max. IR length 60m, Smart IR
- IP67, DC12V
Our expert team has specialised training and experience to help find the right solution for your business.
Call 1300 737 99
Product Specifications
| Camera | |
| Image Sensor | 1/2.7'' CMOS |
| Effective Pixels | 1928(H)×1088(V), 2.1MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1.3s~1/30000s NTSC: 1s~1/30000s |
| Minimum Illumination | 0.03Lux/F1.4, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 60m (197feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Motorized lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.7-12mm |
| Max Aperture | F1.4 |
| Angle of View | H: 99 Deg to 37 Deg |
| Focus Control | Auto / Manual |
| Close Focus Distance | 300mm 11.81'' |
| Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Eelectrical | |
| Power Supply | 12V DC +/-25% |
| Power Consumption | Max 10W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -30 C - +60 C (-22 F - +140 F) /Less than 90% RH * Start up should be done at above -30 C (-22 F) |
| Storage Conditions | -30 C - +60 C (-22 F - +140 F) /Less than 90% RH |
| Ingress Protection And Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 122mm×104.9mm (Φ4.8''×4.13'') |
| Net Weight | 0.58kg (1.28lb) |
| Gross Weight | 0.73kg (1.61lb) |
