Dahua IPC-HFW3449E-AS-LED
$179.23 (incl. GST)
POSMarket SKU: Z18356

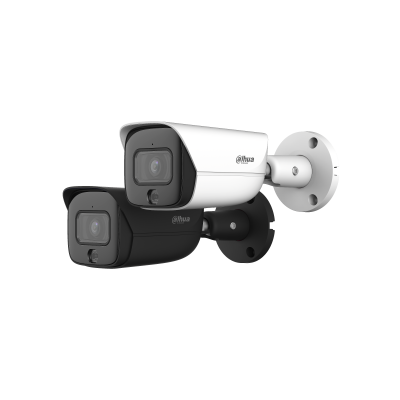

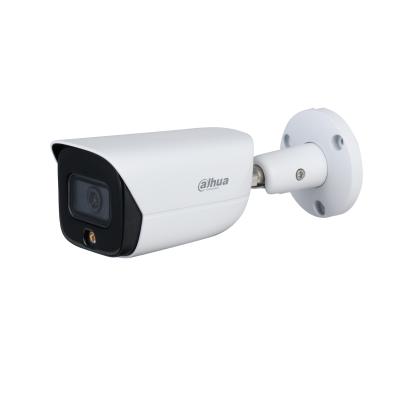

DH-IPC-HFW3449EP-AS-LED: 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera,PAL
4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera
Product Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, with full-color technology, it provides a better image effect in the condition of low illuminance.
The Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP WizSense IP Camera with Full-color technology, Warm LED lighting, fixed lens with a viewing angle of 80 degrees Full-colour. With high-performance sensor and large aperture lens, Dahua Full-colour technology can display clear colourful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colourful image details.
The Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP WizSense IP Camera with Full-color technology, Warm LED lighting, fixed lens with a viewing angle of 80 degrees Full-colour. With high-performance sensor and large aperture lens, Dahua Full-colour technology can display clear colourful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colourful image details.
- 4MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688 x 1520) @ 30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in Warm LED, max. LED distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- 12V DC/PoE power support
- IP67 protection
- SMD Plus
Product Specifications
| IPC-HFW3449E-AS-LED | |
| Camera | |
| Image Sensor | 1/2.7" 4MP progressive CMOS |
| Max. Resolution | 2688 (H) x 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s - 1/100, 000 s |
| Min. Illumination | 0.003 Lux @ F1.0 |
| S/N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (warm LED) |
| Pan/Tilt/Rotation Range | Horizontal: 0°-360°; Vertical: 0°-90°; Rotation: 0°-360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122°
3.6 mm: Horizontal 80° × vertical 43° × diagonal 95° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.2 m (3.9 ft) 3.6 mm: 2.4 m (7.9 ft) |
| Professional, Intelligent | |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream(2688 × 1520 @ 1–25/30 fps) <br>Sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps) <br>Third stream (1280 × 720 @ 1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M(2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps - 8192 kbps H.265: 3 kbps - –8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726; AAC |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G); CGI; P2P; Milestone; Genetec |
| Scene self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64M.) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8; IE9; IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V - 5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Power | |
| Power Supply | 12V DC/PoE |
| Power Consumption | < 8.4W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F ) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (632.2″ × 231.3″ × 217.8″ ) (L × W × H) |
| Net Weight | 590 g (1.3 lb) |
| Gross Weight | 780 g (1.7 lb) |
