Concept 995036PCB&K
POSMarket SKU: Z16456
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
2-Door Plug-on Expansion Board
Product Overview
This board provides a 2 door expansion option effectively converting it to an Intelligent 4 Door Access Module.
Connectivity
The Intelligent 2 Door Access Module is connected directly to the Concept RS485 LAN. Up to 64 modules may be installed in a single panel system.

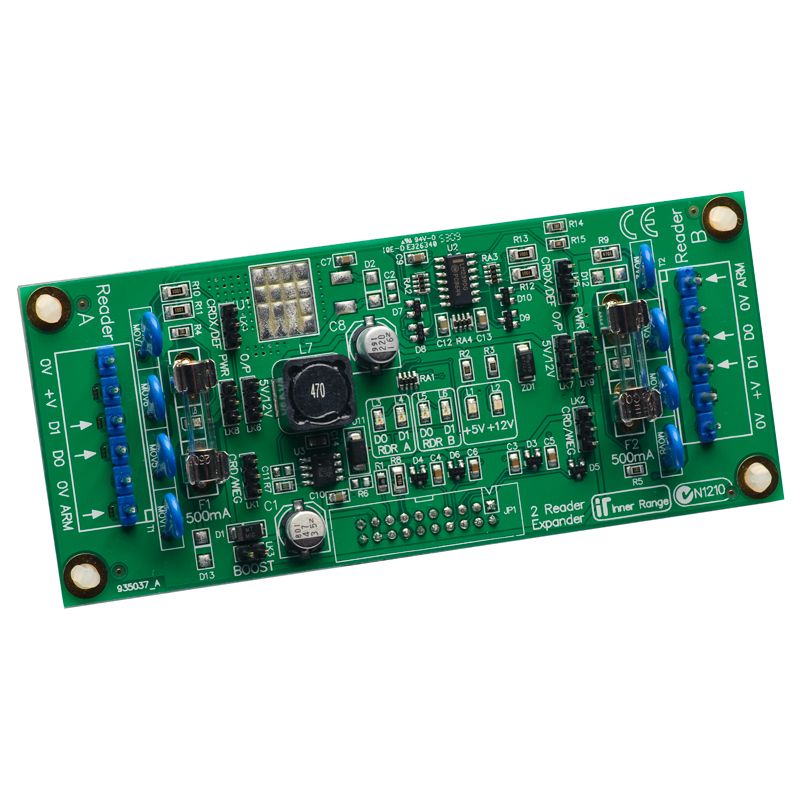

Plug on Reader Expander Board
The Plug-on Reader Expander allows the Intelligent 2 Door Access Module and/or 2 Door Expander Board to be expanded to connect up to 4 or 8 card readers.
Features
- On-board 3 amp power supply
- 2 on-board lock relays
- Optically isolated LAN input provides 5kV isolation for protection from surges
- Separate valid, invalid and Door Open Too Long (DOTL) output for each door
- Separate reed, tongue, Request to Enter (REN), Request to Exit (REX) & Arm inputs for each reader
- All card reader interfaces operate with common magnetic swipe and Wiegand readers without the need for any additional interfaces
- Onboard review buffer for offline operation
- Each card reader may be independently configured, allowing a combination of card reader technologies
- Door open too long pre warn function
- 8 General purpose Onboard zone inputs
- Configuration and expansion options Include:
- - 2 Door / 2 Reader - Standard Configuration Part 995035
- - 2 Door / 4 Reader - Requires 1 x Plug-on Reader Expander
- - 4 Door / 4 Reader - Requires 1 x 2 Door Expander Board
- - 4 Door / 6 Reader - Requires 1 x 2 Door Expander Board & 1 x Plug-on Reader Expander
- - 4 Door / 8 Reader - Requires 1 x 2 Door Expander Board & 2 x Plug-on Reader Expanders
Product Specifications
| 2 Door Expander Board Option | |
| Physical | |
| Cabinet Dimensions | 460(L) x 358(W) x 85(D) (mm) |
| Installation Environment | 0°C - 40°C @15 - 85% Relative humidity (non-condensing) |
| Electrical | PCB Versions; Transformer Versions |
| Mains Input Voltage | N/A; 240VAC 50Hz |
| Mains Input Current | N/A; Max 500mA |
| Input Voltage to PCB | 16-18VAC; 16-18VAC |
| Total Current Limit Power supply | Source dependent; 3A |
| Recommended current allowance for battery charging | N/A; 300mA |
| Available Current (for detectors, Power supply aux’s, relays, local LAN etc) | Source dependent; 2A |
| All versions | |
| Fuse Protection | Separate fuses for DET+, LAN, Locks & Readers |
| Operational Current (no peripherals connected) | |
| Intelligent 2DAM | 145mA (Both lock aux’s on: 240mA) - Plug-on Reader Expander Add 20mA - 2 Door Expander Board Add 30mA (Both lock aux’s on: 120mA) |
| Inputs | |
| Zone Inputs | 8 General purpose Zone Inputs |
| Door Inputs | Door reed, REX, REN, Arm & tongue sense per door |
| Reader Ports | 2 (Expandable to 8) |
| Outputs | |
| Relays | 2 (Expandable to 4, typically used for door locks) |
| Outputs (open collector) | 14 expandable to 20 (8 General purpose; separate valid, invalid and DOTL output for each door) |
