Concept 995050AU
POSMarket SKU: Z16409
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

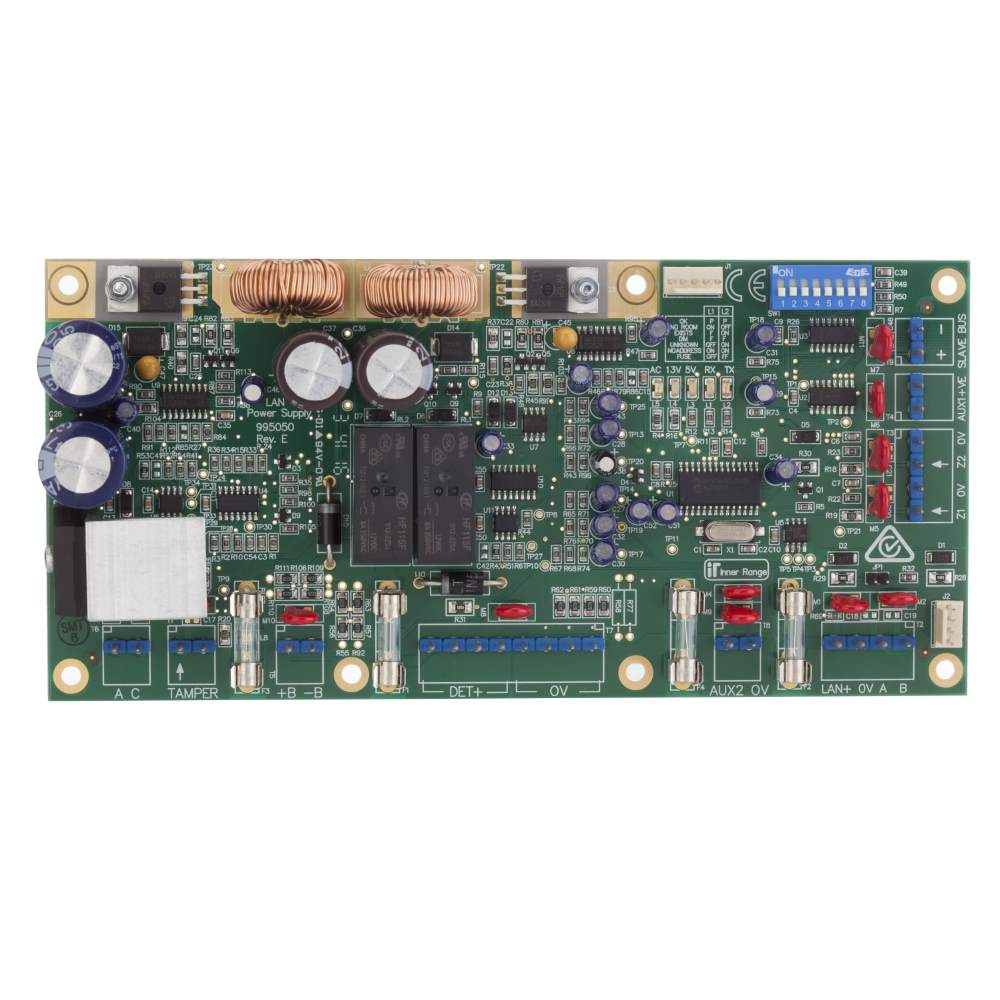

LAN Power Supply
Product Overview
The LAN Power Supply connects to the Concept system LAN, communicating status of the supply and is applicable where battery backed 12V supplies are required to power other unpowered Inner Range modules, detectors, readers and auxiliary devices such as strobes, sounders, locks, etc.
Features
- Dual 2A power supply (2A system power + 2A battery charging)
- Up to 4 units can be linked in a master / slave layout toprovide 14A dedicated for charging or detector power.
- Slaves can be configured as:
- Split (2A power / 2A charging)
- Charger only
- Power only
- Spare
- Reports status of fault, tamper plus input and output conditions to Control Module via Concept LAN
- Contains 2 general purpose zone inputs
- Additional switched 12V output auxiliary with current monitoring for use with satellite sirens
- 12V auxiliary can be used as 12V power source for strobes,
- 12V lamps when current monitoring switched off LAN Power Supply
- Dual 2A power supply (2A system power + 2A battery charging)
- Up to 4 units can be linked in a master / slave layout to provide up to 14A dedicated to charging or detector power
- Reports status of fault, tamper plus input and output conditions to Control Module via Concept LAN
- Contains 2 general purpose zone inputs
- 240V AC @ 500mA mains input
- 16-18V AC input to PCB
Product Specifications
| LAN Power Supply | |
| Physical | |
| Cabinet Dimensions | 325(L) x 250(W) x 112(D) (mm) |
| PCB Dimensions | 200(L) x 95(W) x 40(D) (mm) |
| Installation Environment | 0° – 40°C @ 15% to 85% Relative humidity (non-condensing) |
| Weight | 8kg (including mains transformer, battery and cover) |
| Cabinet Battery Bracket | To suit 12V, 7AH Sealed Lead Acid Battery |
| Electrical | PCB versions; Transformer Versions |
| Mains Input Voltage | N/A; 240VAC 50Hz |
| Mains Input Current | N/A; 500mA |
| Input Voltage to PCB | 16-18VAC; 16-18VAC |
| Current Consumption | |
| Total Current Limit | 4A;4A |
| Available current for battery charging | 2A*; 2A* |
| Available Current (for detectors, auxiliaries, relays, etc). | 2A*; 2A* |
| *Slaved LAN Power Supply units can be configured to deliver 4A of battery charging current but no detector power or vice-versa. | |
| Power Supply Output | |
| Output Voltage | 13.75VDC +/-2% up to 4A |
| Maximum Output Current | 4A (combined current from DET+, LAN+, BAT+ and auxiliaries) |
| Output Ripple | 100mV RMS maximum @ Iout=2A |
| Switching Frequency | ~50kHz |
| Load Regulation | +/-100mV @ Iout=0.1A to 4A |
| Conversion Efficiency | ~80% |
| Battery | |
| Battery Capacity (per 2A supply) | 12V 7AH Sealed Lead Acid Battery (no slaves connected) |
| Battery Input Fuse | 5A |
| Output Protection | |
| DET+ Fuse | 5A |
| LAN+ Fuse | 5A |
| AUX2 Fuse | 5A |
