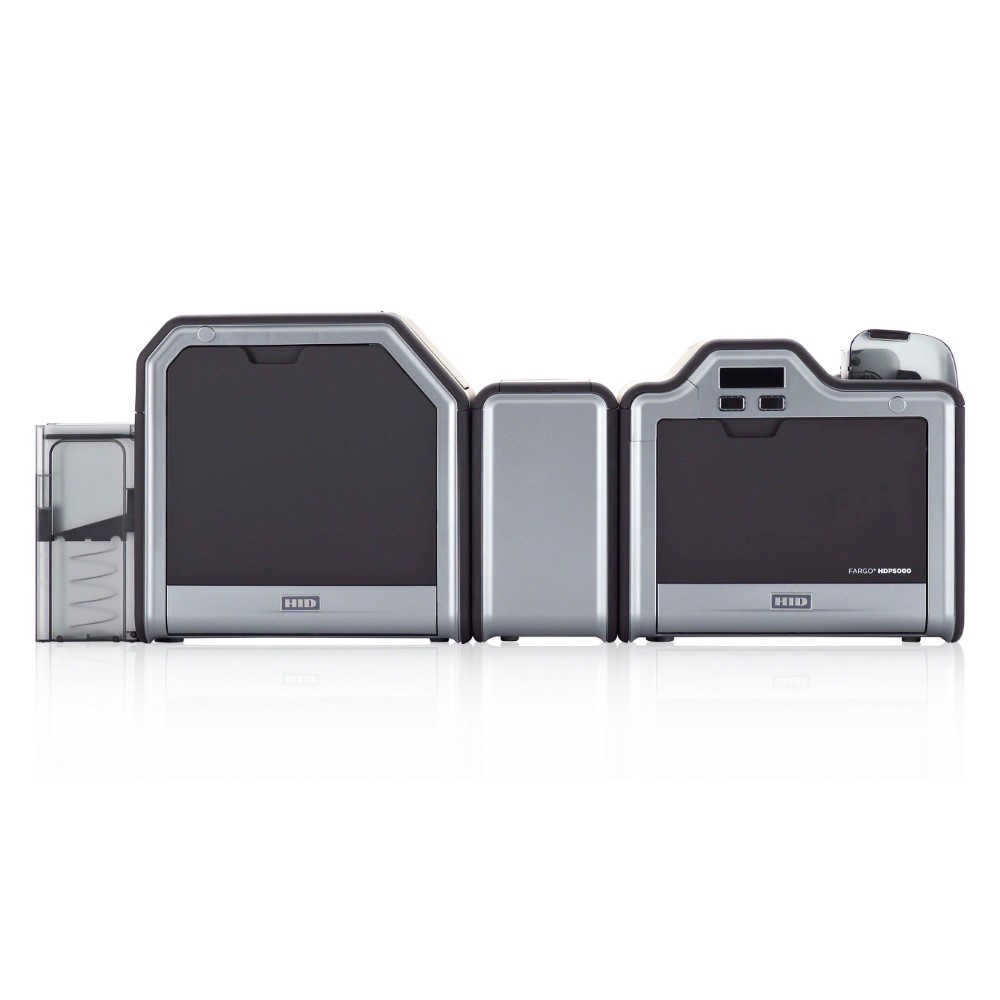

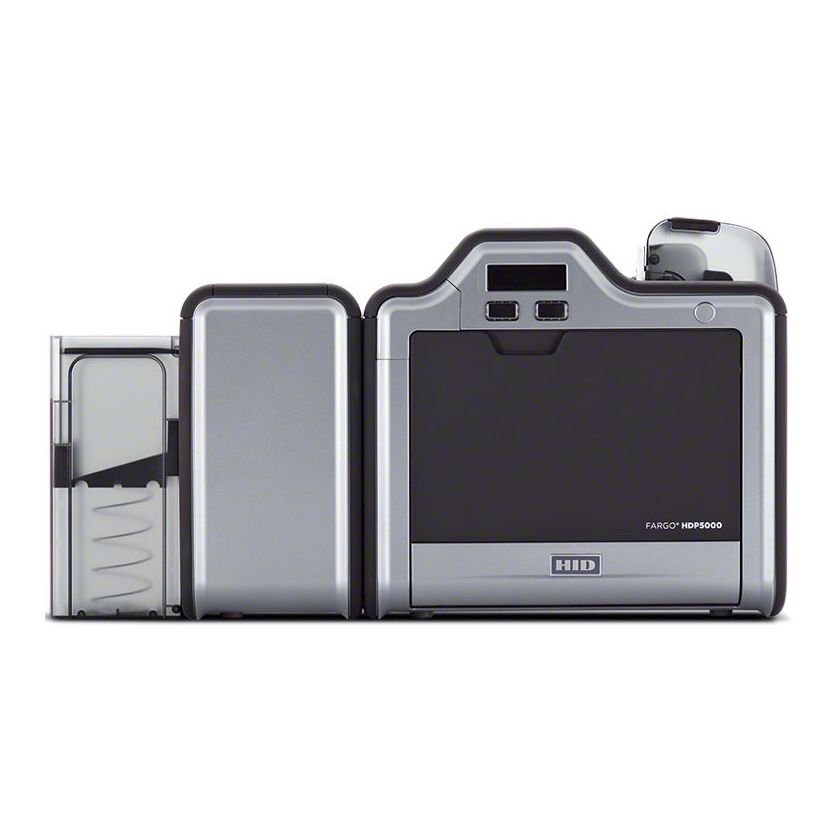

Fargo HDP5000
from $7,710.59 (incl. GST)
POSMarket SKU: Z17906
This model is available in 5 different configurations. Select a configuration below or contact our experts on 1300 737 998.
The ideal solution for printing on technology-rich smart cards
Product Overview
The Fargo HDP5000 offers the versatility to meet your card application needs today and in the future. The system's flexible architecture lets you expand or reduce production instantly, with add-on dual sided printing, encoding and lamination modules. For greater system capacity, an optional dual card input hopper lets you easily manage multiple card types and higher card volumes. Because the HDP5000 easily integrates with other products within the HID ecosystem, you can leverage your existing Genuine HID technology investments.
Features
Our enhanced HDP5000 ID card printer and encoder is feature-packed. Perfect for smart cards with embedded electronics, it reliably produces cards in High Definition with the highest image quality available. The HDP5000 ID card printer and encoder upgrades easily in the field, with additional modules.
Features
Our enhanced HDP5000 ID card printer and encoder is feature-packed. Perfect for smart cards with embedded electronics, it reliably produces cards in High Definition with the highest image quality available. The HDP5000 ID card printer and encoder upgrades easily in the field, with additional modules.
- New optional dual card input hopper simplifies card handling and minimizes downtime.
- HID Global next-generation HDP platform enables faster print speed.
- Optional single-sided or simultaneous dual-sided lamination for higher card security--quickly.
- Dual-sided card printing option lets you double the print area available without manually reloading cards.
- SmartScreenâ„¢ LCD Control Panel displays helpful status messages and prompts.
Product Specifications
| HDP5000 | |
| Print Method | HDP® Dye-Sublimation / Resin Thermal Transfer |
| Resolution | 300 dpi (11.8 dots/mm) |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | ** Full-color, YMC*, 750 prints ** Full-color with resin black, YMCK*, 500 prints ** Full-color with two resin black panels, YMCKK*, 500 prints, ** Full-color with resin black and heat seal panel for difficult-to-print surfaces, YMCKH*, 500 prints ** Full-color with resin black and inhibit panel for signature or other non-printing areas, YMCKI*, 500 prints ** Full-color with fluorescing and resin black, YMCFK*, 500 prints ** Resin black, K, 3000 prints |
| HDP Film Options | **Clear (1,500 prints) ** Standard Holographic (500 prints) ** Custom Holographic, special order (500 prints) |
| Overlaminate Options | ** Thermal Transfer Overlaminate, .25 mil thick, 500 prints ** PolyGuard® Overlaminate, 1.0 mil and .6 mil thick, 250 prints (PolyGuard available in a CR-80 patch size) All overlaminates available in clear, standard holographic design or custom holographic design |
| Print Speed | |
| Batch Mode | **Up to 24 seconds per card / 150 cards per hour (YMC with transfer) ** Up to 29 seconds per card / 124 cards per hour (YMCK with transfer)* ** Up to 40 seconds per card / 90 cards per hour (YMCKK with transfer) ** Up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination) ** Up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)* |
| Accepted Standard Card Sizes | CR-80 (3.370â€L x 2.125â€W / 85.6mmL x 54mmW) |
| Print Area | Over-the-edge on CR-80 cards |
| Accepted Card Thickness | ** Print only: .030†(30 mil) to .050†(50 mil) / .762mm to 1.27mm ** Print/Lamination: .030†(30 mil) to .050†(50 mil) / .762mm to 1.27mm |
| Accepted Card Types | ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards |
| Note | ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module. |
| Input Card Cartridge Capacity | 100 cards (.030†/ .762mm) |
| Output Hopper Card Capacity | 200 cards (.030†/ .762mm) |
| Card Cleaning | Replaceable cleaning roller (included with each print ribbon) |
| Display | User-friendly, SmartScreenâ„¢ LCD Control Panel |
| Software Drivers | Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP; Mac OS X v10.6 / v10.5 / & Linux* |
| Single Wire | USB 2.0 |
| Encoding Options | **ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3 ** Contactless Smart Card Encoder (HID iCLASS® and MIFARE) ** ISO 7816 Contact Smart Card Encoder ** Prox Card Reader (HID read-only) |
| Interface | USB 2.0 (high speed) and Ethernet with internal print server |
| Operating Temperature | 65° to 90° F / 18° to 32° C |
| Humidity | 20 - 80% non-condensing |
| Dimensions: | HDP5000: 11.50â€H x 12.25â€W x 9.25â€D / 292mmH x 313mmW x 235mmD ** HDP5000 + Dual-Sided Module: 11.50â€H x 17.50â€W x 9.25â€D / 292mmH x 445mmW x 235mmD ** HDP5000 + Single-Sided Lam Module: 12.75â€H x 25â€W x 9.25â€D / 324mmH x 635mmW x 235mmD ** HDP5000 + Dual-Sided Module + Dual-Sided Lam Module: 12.75â€H x 30â€W x 9.25â€D / 324mmH x 762mmW x 235mmD ** Lam Module: 12.75â€H x 12.25â€W x 9.25â€D / 324mmH x 313mmW x 235mmD |
| Weight | ** HDP5000: 16 lbs. / 7.3 kg, HDP5000 + Dual-Sided Module: 22 lbs. / 10 kg, HDP5000 + Single-Sided Lam Module: 28 lbs. / 12.7 kg, ** HDP5000 + Dual-Sided Module + Dual-Sided Lam Module: 36 lbs. / 16.4 kg |
| Certifications | UL, CE, IC, FCC Class-A, CCC, BSMI, KC, MIC |
| Supply Voltage | 100-240 VAC, 3.3A |
| Supply Frequency | 50 Hz / 60 Hz |
| Warranty | **Printer – Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only), ** Printhead – Lifetime; unlimited pass |
| FARGO Secure Materials | FARGO Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only HID Secure Materials. HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used. |
| Options | **Dual card input hopper module ** Card lamination module – single-sided or dual-sided (simultaneous)* ** Magnetic stripe encoding ** 200-card input hopper ** Smart card encoding (contact/contactless) ** Dual-sided printing ** Door and cartridge locks ** Printer cleaning kit ** Secure proprietary consumables system • Custom secure holographic HDP Film and over laminate |
| Software | FARGO Workbench diagnostic utility with Color Assist spot-color matching |
