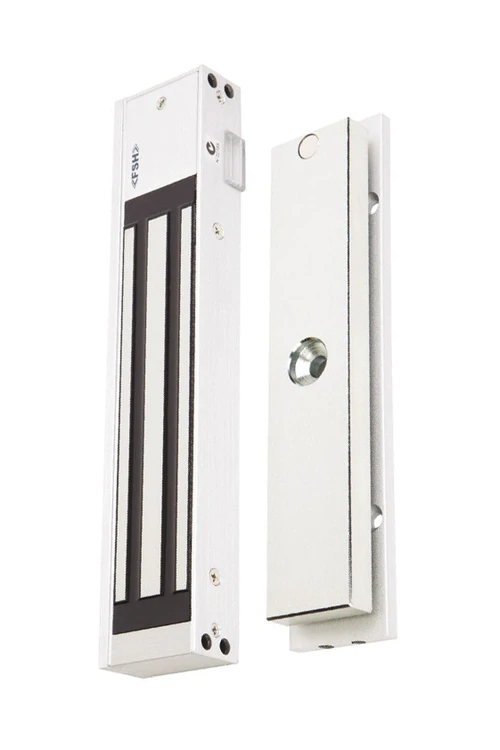

FSH ECO3500M

$278.16 (incl. GST)

POSMarket SKU: Z17276

ECO3500M: Power Saving Single Mag, 100- 280kg, Monitored LP/LSS/DSS/ EW, Slimline, 10-26V DC

Power Saving Electro Magnetic Locking Device

Product Overview

The FSH-ECO3500M model is a power saving Electro-Magnetic Lock. Under normal, non-alarm conditions, the FSH-ECO3500M "EcoMag" operates in a low current 'Sleeping Mode' of 60mA @ 24V with a holding force of 100kg. In the event of an unauthorised attempt to open the door, the FSH-ECO3500M EcoMag 'wakes up' and goes into an Alarm Mode with full current of 300mA@24V applied to the device, instantly increasing the holding force to up to 280kg.

The EcoMag operates on multi Voltage 10-26VDC, provides an Early Warning (EW) signal output, has a built-in local Alarm Buzzer, with full monitoring of Lock Status and Door Status, long distance Light Panel indicator.

The device comes with the FSH patented Anti-Tamper-Plate as standard.

Features
  • Truly green product
  • Door and sock status monitoring sensor (DSS & LSS)
  • Early warning signal output and local alarm buzzer (EW)
  • Multi voltage 10-26VDC low power consumption (60mA @ 24VDC sleep-mode)
  • Exit switch delay function
  • Long distance light panel (LP)
  • Anti-tamper plate

Product Specifications

Power Saving Electro Magnetic Locking Device
Part No. ECO3500M
Function Power To Lock (Fail Safe)
Holding Strength Up to 280 kg in ‘Alarm-Mode’
100kg in ‘Sleep-Mode’
Voltage/ Current
Multi Voltage 10-26VC
Sleep-Mode 12VDC=120mA / 24VDC=60mA
Alarm-Mode 12VDC=600mA / 24VDC=300mA
Monitoring Door Status Monitoring Sensor (DSS)
Lock Status Monitoring Sensor (LSS)
Early Warning Signial Output and Local Alarm Buzzer (EW)
Long Distance Light Panel (LP)
Size Magnet: L=238 W=48 D=24mm
Armature Plate: L=185 W=38 D=12mm
