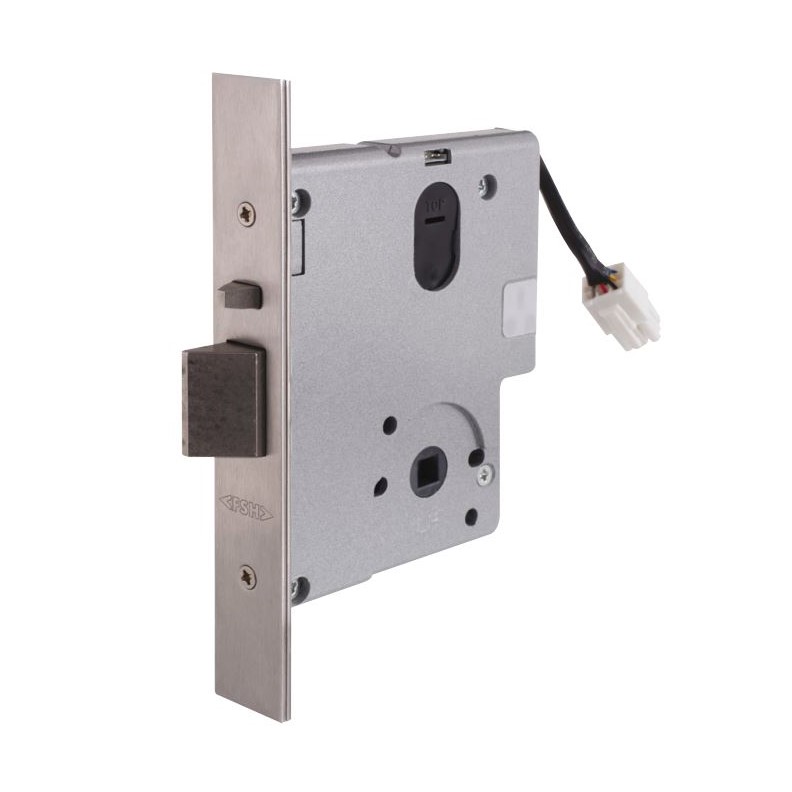

FSH FEL990
POSMarket SKU: Z17270
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Electric Mortice Lock
Product Overview
The FEL990 Series locks can be easily site configured as follows:
- single-sided locking (Vertibute) / double-side locking (Combination)
- power to lock (fail safe) / power to open (fail secure)
- left hand / right hand operation
- Door position monitoring by reed switch
- Lock status by combination of:
- Locking bar status
- Dead latch bolt status
- Latch bolt status
- Dual key override monitoring
- Request to exit via hub or handle
- LED indication
- Multi-voltage - 12-24VDC/350mA momentary
- Reverse polarity protected
- 3m cable with industry standard 12 pin plug
- 60mm backset
- Fail safe / fail secure field selectable
- Satin chrome finish
Product Specifications
| Electric Mortice Lock | |
| Part No. | FEL990M / FEL |
| Function | Vestibule and Combination lock (field selectable of either/ or both sides locked) Lock handed (Left/ Right Hand field selectable) |
| Lock Operation | FAIL SAFE / FAIL SECURE adjustable on site - one product for both applications |
| Voltage/ Current | |
| Multi-voltage | 12-24 VDC / 350mA momentary, 100mA operating including LED furniture if applicable Reverse polarity protected Lock secure status and key override micro switch max. Rating 500mA@30VDC Door status reed switch max. Rating 100mA operating |
| Approvals | C-tick Tested to 4 hour on fire door assemblies as specified in AS/NZ 1905.1 1997 Part 1 Fire Resistant Doorsets Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2:1993) Conforms when used with equivalent S3 keying system |
| Monitoring (990M version only) | Lock bolt and locking solenoid |
| Environmental | -20 to +60 degrees C |
| Door Thickness | 32-50mm |
| Backset | 60mm Optional: 70mm, 89mm and 127mm |
| Cabling | 3m cable with 12 pin plug supplied |
| Standard Finish | Satin stainless steel (other finishes on request) |
| Factory Configuration | Vestibule / 60mm backset / Fail Safe / Left handed / Satin chrome finish |
