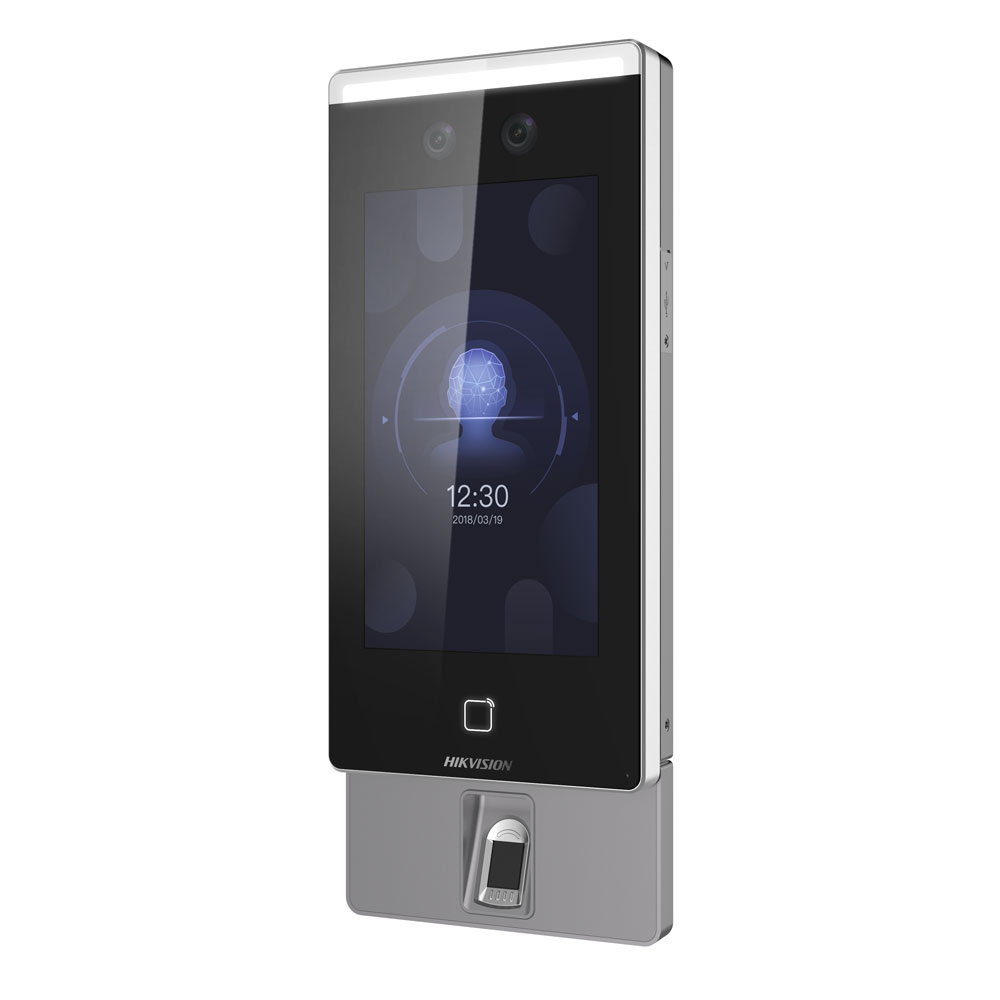

Hikvision DS-K1T671
POSMarket SKU: Z17948
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Pro Face Access Terminal Series
Product Overview
The DS-K1T671 series face recognition terminal is a kind of access control device with large screen ratio which supports 1: N face authentication, fingerprint authentication, card authentication etc. It can be mainly applied in multiple scenarios, such as dwellings, government buildings, banks, enterprises and so on.
Features
- 7-inch touch screen, 2 Mega pixel wide-angle lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3m to 3m
- Suggested height for face recognition between 1.4 m and 1.9 m
- Deep learning algorithm
- 6,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Face anti-spoofing
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Manage, search and set device data after logging in the device locally
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, and Russian
- Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
- Configuration via web browser
Product Specifications
| DS-K1T671 Series | |
| System | |
| Operation System | Linux |
| Display | |
| Dimensions | 7-inch |
| Type | LCD |
| Operation Method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | 2 |
| Audio | |
| Tone Quality | Noise suppression and echo cancellation |
| Network | |
| Wired Network | 10 M/100 M/1000 M self-adaptive |
| Interface | |
| Network Interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Output | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| IO Input | 2 |
| IO Output | 1 |
| Power Interface | 2-pin |
| TAMPER | 1 |
| USB | 2 |
| Capacity | |
| Card Capacity | 6000 |
| Face Capacity | 6000 |
| Event Capacity | 50,000 |
| Authentication | |
| Card Type | Mifare 1 card |
| Card Reading Frequency | 13.56MHz |
| Card Reading Distance | 0 to 5 cm |
| Face Recognition Duration | ＜ 0.2 s per person |
| Face Recognition Accuracy Rate | ≥99% |
| Face Recognition Distance | 0.3 to 3 m (Without face mask) |
| Fingerprint recognizer DS-K1T671M DS-K1T671MF | / Support |
| Fingerprint capacity DS-K1T671M DS-K1T671MF | / 5000 |
| Function | |
| QR Code Recognition | Support |
| Face Anti-Spoofing | Support |
| Advertisement | Support |
| Audio Prompt | Support |
| Time Synchronization | Support |
| General | |
| Power Supply Method | 2-pin connecter |
| Power Supply | 12 VDC/2 A |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 10 to 90ï¼… (No condensing) |
| Dimensions | 239 mm × 116.5 mm × 33 mm (9.4" × 4.6" ×1.3") |
| Protective Level | IP65 |
| Installation | Surface |
