IK-ELITEXSIFER: EliteX OLED Keypad with SIFER Reader Add-on Module
EliteX OLED Keypad with SIFER Reader Add-on Module
Product Overview
1 x SIFER Reader Add-On to suit EliteX / PrismaX
1 x Inner Range EliteX Standard Keypad
The EliteX OLED keypad is an elegantly designed terminal that features a clear and easy to read OLED display. Users can utilise the keypad to perform typical operations on the Integriti system including control of security areas, door access, event activity review and controlling the state of outputs.

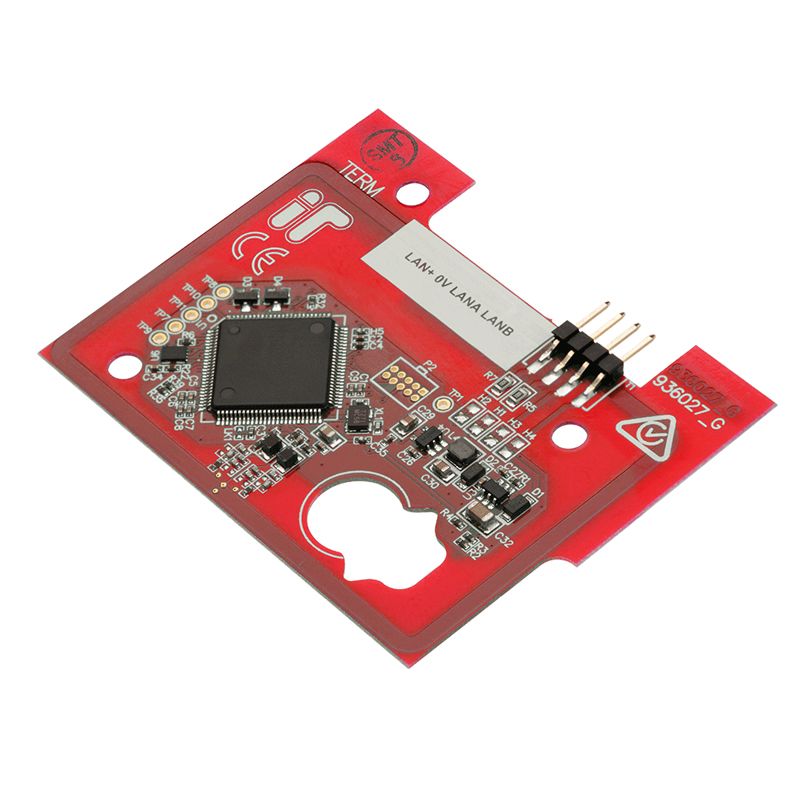

Kitted together with the IR-994721PCB&K SIFER Reader add on board, this module allows the EliteX keypad to be used for single or dual high security credential authentication. With the IR-994721PCB&K fitted a SIFER card or keyfob can be read by placing it directly in front of the alphanumeric keypad area.
Features
- Support for all types of SIFER credentials
- Multi-format reader compatible with 13.56Mhz cards (CSN only)
- Support for card access control
- Support for card & PIN access control
- Support for card only keypad login
- Support for card & PIN keypad login
Product Specifications
| IK-ELITEXSIFER EliteX OLED Keypad with Add-on module | |
| SIFER reader Add-on Module | |
| Physical | |
| Installation Environment | 0°C to 50°C @ 15% to 85% relative humidity (non-condensing) |
| Electrical | |
| Input Voltage | Powered from host keypad |
| Operational Current | Up to 60mA in addition to the current already drawn by the keypad |
| Compatibility | EliteX PrismaX |
| Integriti / Infiniti Controller | V17.0.1 V18.1 |
| Inception Controller | V1.3.5 Not Supported |
| Part number | 994721PCB&K |
| Inner Range EliteX Standard Keypad | |
| Physical | |
| Housing Dimensions | 152(H) x 90(W) x 18(D) (mm) |
| Installation Environment | 0°C - 50°C @ 15% to 85% relative humidity (non-condensing) |
| Electrical | |
| Input Voltage | 11V – 14V DC |
| Operational Current | 14.4mA (Back-light & LEDS off), 42mA (Back-light & LEDS max brightness) |
| Operating Current with SIFER PCB | 46mA (Back-light & LEDS off), 186mA (Peak, Back-light & LEDS max brightness) |
| Auxiliary Open Collector Output Current | 18VDC, 500mA maximum each (PTC protected) |
| Display & Indicator Brightness | |
| Display/ Keypad | Variable brightness via programming (Can be turned off) |
| LED Indicators | Variable brightness via programming |
| Indicators & I/O’s | |
| LED Indicators | 8 |
| Aux Outputs (Open collector) | 2 |
| Universal I/O’s | 2 (Input mode is compatible with original Elite, or EOL/Multi-state compatible) |
| Part number | 995400 |
