Lockwood EMZ4-SN
POSMarket SKU: Z17341
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

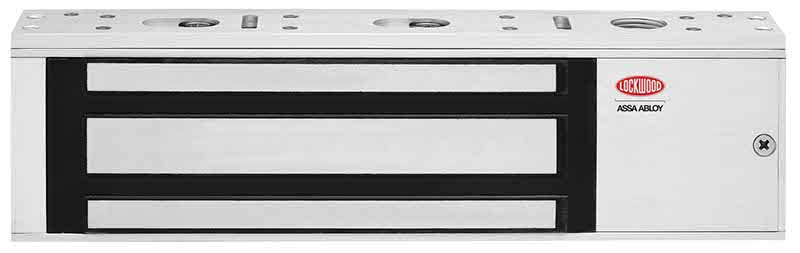

Z4 and Z8 Single Non Monitored Electromagnetic Locks
Product Overview
With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
The Lockwood EMZ4-SN is the EMZ4 E/Magnet 12/24Vdc Single Non Monitored version, whilst Lockwood EMZ8-SN is EMZ8 E/Magnet 12/24Vdc Single Non Monitored version.
Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: refer to the technical data overleaf
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Instantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetism
Product Specifications
| Z8 Magnet | |
| General | |
| Holding Force | * 550kg - 580kg |
| Dimensions | (L)266 x (H)72 x (D)40 mm |
| Voltage | 12Vdc/ 24Vdc ±10% |
| Current | 512mA @ (12Vdc) 256mA @ (24Vdc) |
| Monitoring | None |
| Operating Temperature | -10 to 55 Degrees |
| Operating Humidity | 0 - 95% |
| Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created. | |
| Applications | Aluminium doors Glass doors IT Storage rooms Access control Surface mount for inswing and outswing doors |
| Standards and Compliance | Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) CE Approved C-Tick Certified |
| Specification Statement | The Single Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop. The lock needs to be equipped with "smart electronics" that have zero residual magnetism, (instantaneous release). This is crucial for correct operation. |
