Lockwood ES2600-1
POSMarket SKU: Z17376
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

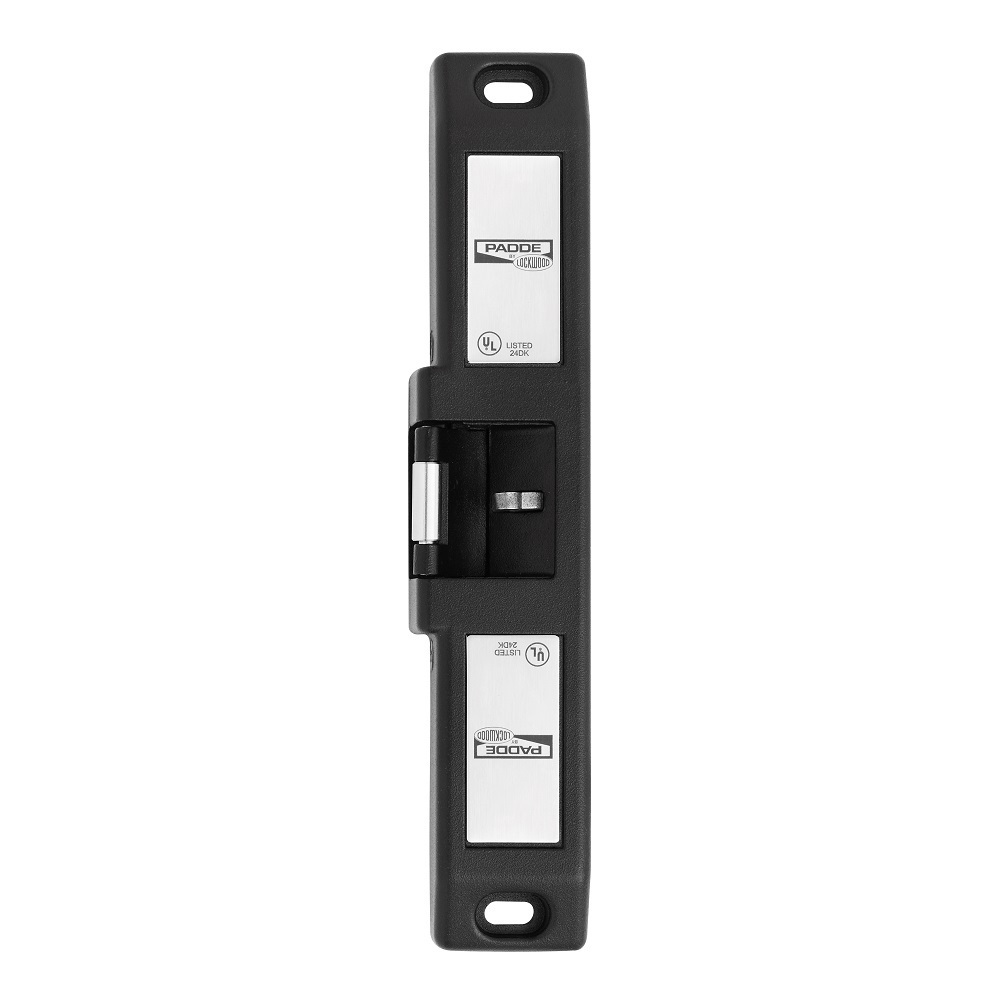

ES2600 Panic Bar Monitored Electric Strike
Product Overview
When used in conjunction with a standard access control system, these strikes convert "Exit only" doors with "Pullman type" latches into a full access controlled door, thereby allowing authorised access from the secure side.
The ES2600 series are fully monitored with both solenoid and latch/door monitoring functions & can be changed from fail safe to fail secure on site.
The ES2600-1 is the ES2600 Panic Bar E/Strike 12Vdc Fail Safe Monitored version.
Features
- Fail safe/fail secure changeable on site
- High security
- Available in 12 or 24Vdc
- 650kg holding force
- 1 million cycles endurance rating
- Body depth only 27mm
- Cast stainless steel body
- Low current consumption - max 175Ma @ 12Vdc
- Continuously rated solenoid
- Installation template
- TRICARE® 5 Year Warranty
- For use with panic bars
- Surface mount
- Egress doors
- Fire rated door sets
- Open out door sets
- Suitable for use with all access control systems
Product Specifications
| ES2600 Panic Bar Monitored Electric Strike | ||
| General | ||
| Voltage | 12 or 24Vdc | |
| Current | 175mA @ 12Vdc - 88mA @ 24Vdc | |
| Solenoids | Solenoids rated for continuous use. | |
| Monitoring | ||
| Solenoid Monitor | - 1 amp NO/NC microswitch | |
| Door / Latch Monitor | - 1 amp NO/NC microswitch | |
| Holding Force | 650kg Static Strength Rating | |
| Endurance | Cycle tested to 1,000,000 operations | |
| Additional | Anti friction roller (patented) Suits panic bars with 15 to 20mm Pullman latch projection | |
| Environment | ||
| Operational temperature range | - 20C to +60C | |
| Body | Solid Stainless Steel Construction | |
| Keeper | Stainless Steel | |
| Latch | Suitable for 15-20mm pullman latch | |
| Standards and Compliance | Approved to UL1034 (highest level) CE Approved | |
| Specification Statement | The strike should be constructed of solid stainless steel, have a minimum holding force of 650kg and have an endurance rating of 1 million cycles. Maximum penetration into the door frame should not exceed 12mm. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use. Certifications must include CE and C-Tick. | |
