LOX Locking ES10

from $129.94 (incl. GST)

POSMarket SKU: Z17208

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Light Commercial and Residential Electric Strikes - ANSI Footprint Latch

Product Overview

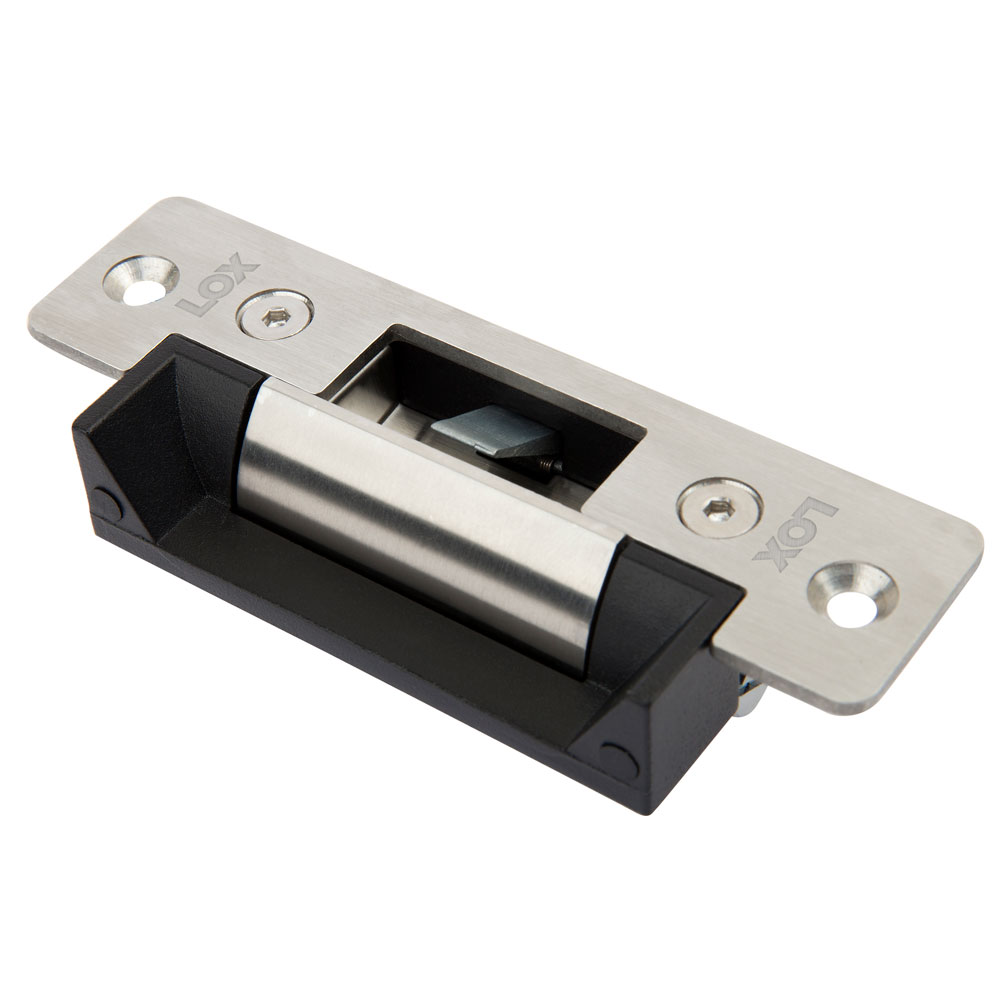

The LOX ES10 Series ANSI Electric Door Strikes is one of the most successful residential & light commercial Electric Strike products in Australia. It is a dual voltage product accepting voltages of either 12 or 24VDC. The LOX ES10 Series Electric Strikes are site interchangeable from FailSecure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver. The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock.

The LOX ES10 Series Strikes are pre-drilled to accommodate for extension lips, come with a 5-year warranty and have a holding strength of up to 1200kg. The monitored ES10M version comes with Door Status Sensor (door latch monitoring). The non-monitored ES10 version is weather resistant IP56 rated.

Features
  • ES10 Weather Resistant (IP56)
  • ES10M monitored version available
  • (not weather resistant)
  • 5 year warranty
  • Simple Power To Lock/Power To Release interchange
  • Pre-drilled for extension lips
  • Dual-Voltage: 12 or 24VDC
  • Fire rated

Product Specifications

ANSI Profile non-monitored door strike. Mortice mount, Power to lock or to open field selectable IP rated ES10
Monitored Version of the ES10 non-weather resistant ES10M
General
Holding Strength Up to 1200kg
Cycle Tested 1 million Cycles
Voltage/Current
Dual voltage 12/24VDC

12VDC = 200mA
24VDC = 100mA
Approvals up to 4 hour fire rated to A.S Standard, CE & C-TICK
DSS Monitoring Door Latch Sensor
Door Latch engaged within a strike keeper (ES10M version)
IP RATING IP56(ES10)
Not weather resistante(ES10M)
Environmental
Operational Temperature Range - 20°C to 60°C
