Nemtek Sliding Gate Contact
POSMarket SKU: Z18043
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Used for wiring live wires in series onto a sliding gate.
Product Overview

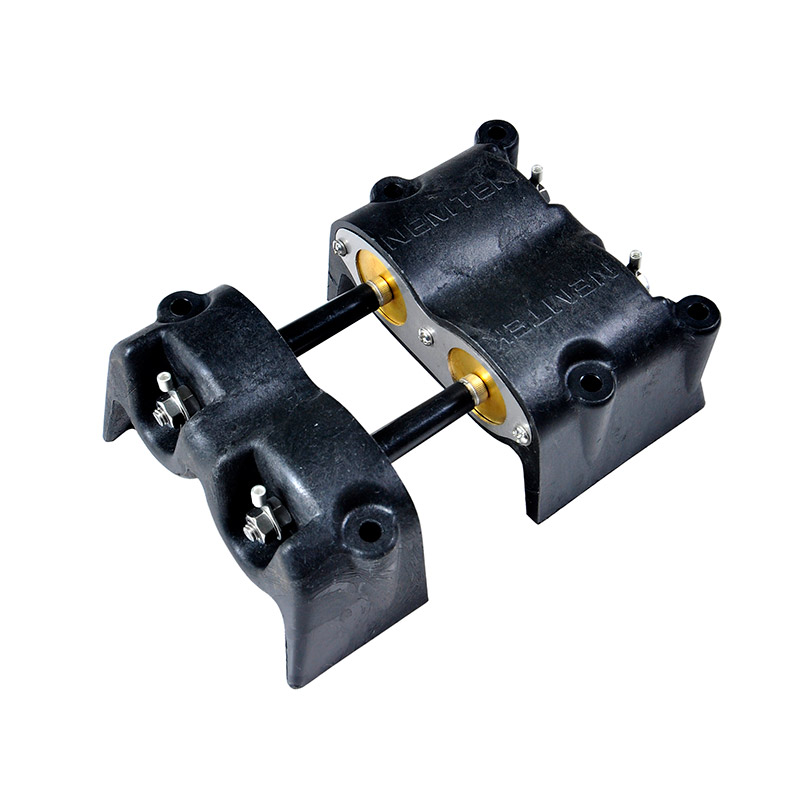

Nemtek's EA-SGC13 is a heavy duty sliding gate contact is used for series wiring of sliding gates. Including an earth plate, the gate contact will switch to earth when the gate is opened forcing an alarm condition. The connect is only used when the system is off while the gates are opened.
The EA-SGC13/EARTH includes an earth plate. The gate contact will switch to earth when the gate is opened forcing an alarm condition. The connect is only used when the system is off while the gates are opened.
Features
- Heavy duty design
- Large location plates allow for increased tolerance
- Available with brass cable connectors (SGC13) or crimp lug connectors (SGC07)

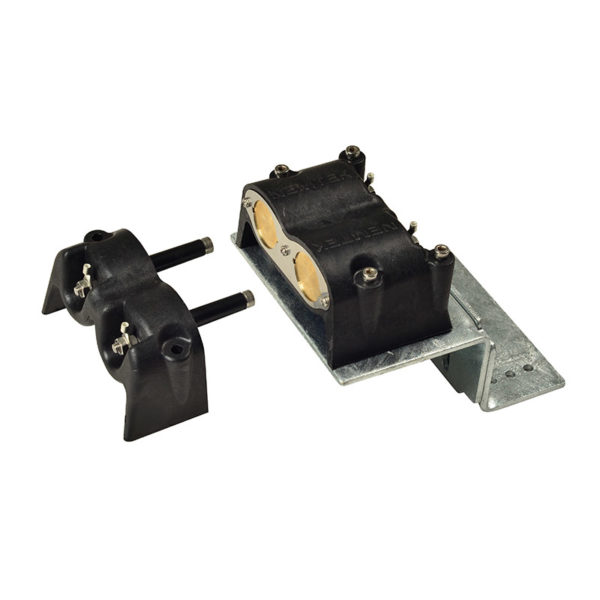

- Mounting the gate contact bracket available. (EA-SGC07ZB/HDG)
Product Specifications
| 2-Way Gate Contact | |
| Part no. EA-SGC07 EA-SGC13 | Description 2-Way Gate Contact with crimp lug connectors 2-Way Gate Contact with brass cable connectors |
| Material | Brass Stainless Steel UV stabilised Nylon |
| Dimensions | Dimensions of Part 1: 80(L) x 60(H) x 118(D)mm Dimensions of Part 2: 95(L) x 60(H) x 114(D)mm |
