Paradox PGM4

The PGM82 / PGM4 Programmable Output Expansion Module includes eight / four programmable relay outputs. Compatible with all Paradox control panels. Outputs can be activated using the Insite GOLD mobile application, integrated manual switches or programmed to follow system events. Each output can drive 4A/24V loads.

4-Output Expansion Module
The PGM4 is a 4-PGM Expansion Module from Paradox that Compatible with E55/E65 (V2.00), MG/SP (V3.00) and EVO.

The PGM4 expansion module (previously APR3-PGM4) provides 4 programmable outputs to Digiplex, Spectra, Esprit E55 or MG/SP systems. The PGM4 automatically detects the system to which it is connected to and adjusts its internal communication parameters accordingly.

8-PGM Expansion Module

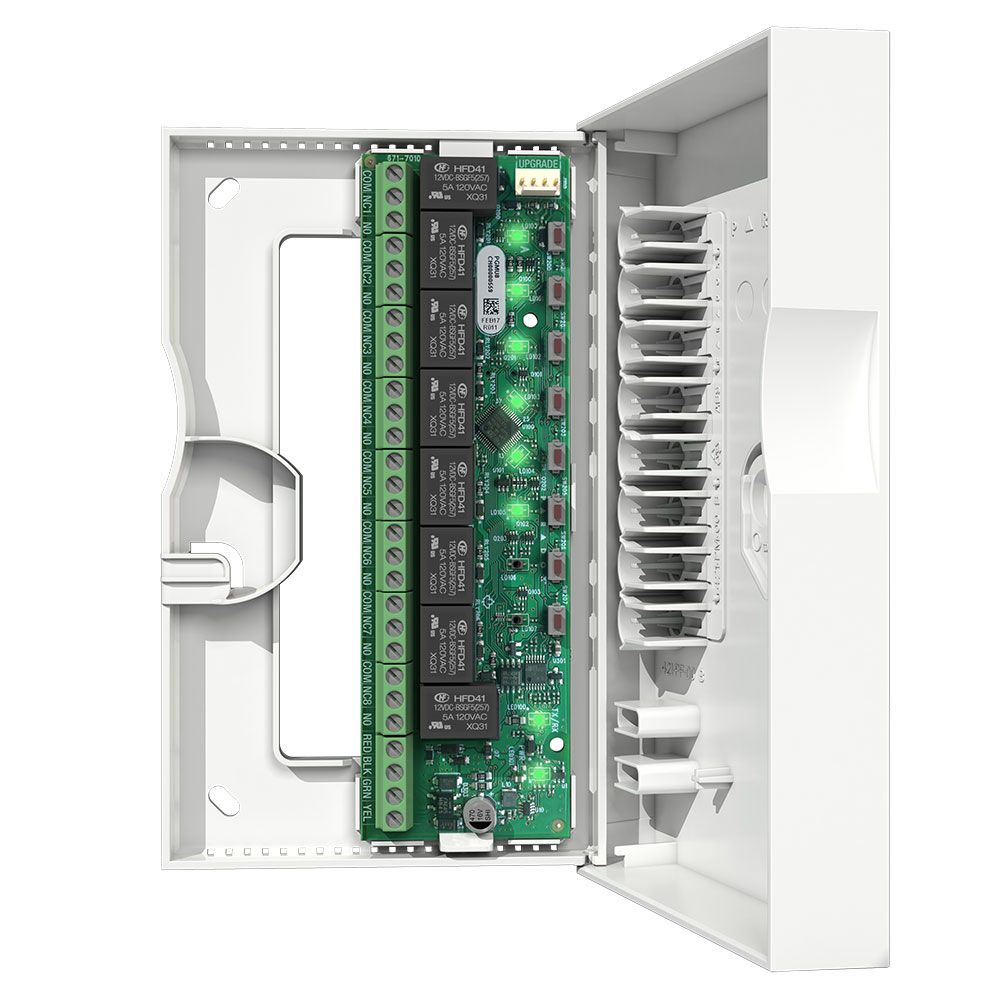

The Paradox PGM82 programmable output expansion module includes eight programmable relay outputs and is compatible with all Paradox panels. Outputs can be activated using the Insite Gold mobile application, integrated manual switches or programmed to follow system events.

The PGM82 comes mounted in its own ABS enclosure and includes Status LED indication for power, data and for each individual PGM.

Features

• Expansion of 8 programmable outputs
• PGM control via Insite GOLD application
• PGM control with manual on-box switches (PGM82)
• Can follow system events
• Display for each PGM, Data and Power
• Box cover lock mechanism (PGM82)
• Supports SP, MG, EVO and Swan
• Connects to control panel via 4-wire on keypad bus
• Firmware upgradeable
