Rosslare PS-C25TB
POSMarket SKU: Z17979
PS-C25TB: Intelligent Power Supply to suit AYC Readers / Keypads, 2x Relay Outputs

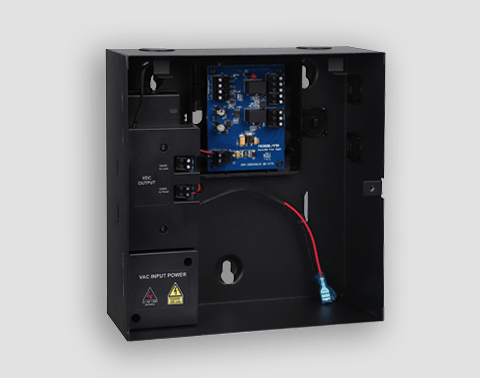

The Power Managment Enclosure with built in Secure Relay I/O Module
Product Overview
The secure module also communicates the REX input status to the Controller Unit. A red LED indicates the secure module power status. The secure module includes removable terminal blocks for ease of wiring and installation.
The enclosure features a switch-mode power supply (SMPS) that outputs power to the PM-05 power management module. The PM-05 power management module has two independent power channels with an isolated PTC (self-resetting fuse). One channel powers the MD-25TB while the other channel may be used to power a lock. Battery backup is available. When AC power fails, the PM-05 instantaneously (UPS) switches power over to a stand-by sealed lead acid (SLA) battery (not included) charged by a built-in battery charger. A low battery cutoff prevents batteries from deep discharge.
Features
- Compatible with Rosslare AYC readers and keypads
- 2x relay outputs (1x for a door, 1x for an auxiliary)
- Includes ME-0515M power supply and MD-25TB secure I/O module
- Enclosure to fit standard 12V 7Ah lead acid batteries
- Preventative deep discharge circuitry
- C14 inlet plug
- C13 AC cable
- Enclosure lock
Product Specifications
| PS-C25TB | |
| Electrical Specifications | |
| SMPS | |
| Input | 110 – 240 VAC, 50/60 Hz, 1.5 A |
| Output | 15 VDC, 4 A |
| PM-05 | |
| Input | 15 VDC, 4 A |
| Output | 14.5 VDC, 2 A (CH1/CH2) |
| Battery Charge current | 1.5 A |
| MD-25TB | |
| Input | 12 VDC, 2 A |
| Output | 12 VDC, 0.25 A (PCB maximum output current) 5 A Form C, SPDT Relay |
| Auxiliary Output | Max Switched Current: 5 A Max Switched Voltage: 150 VDC or 300 VAC UL Rating: 5 A at 30 VDC or 5 A at 125 VAC |
| Speaker Output | 0.25 W, 8 Ω (minimum) |
| LED indicators Power Status | Red shows power on Off shows power off |
| Environmental Specifications | |
| Operating Environment | Indoor |
| Operating Temperature Range | -10°C - 50°C (14°F - 122°F) |
| Operating Humidity Range | 0 to 85% (non-condensing) |
| Mechanical Specifications | |
| Enclosure Dimensions | 228 x 224 x 84 mm (9.0 x 8.8 x 3.3 in.) |
| Weight | 2.21 kg (4.87 lb) |
| Compatible Devices | Rosslare AYC readers |
| Product Warranty | 2-year limited product warranty |
