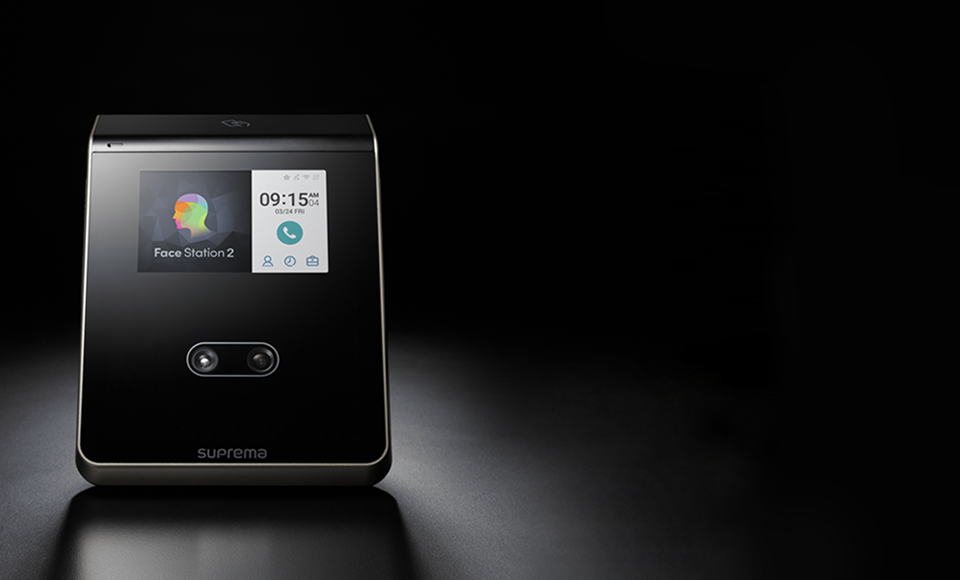

Suprema FaceStation 2
POSMarket SKU: Z17988
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
The Smart Face Recognition Terminal
Product Overview
Features
- Stores up to 30,000 faces (template on card)
- Stores up to 4,000 faces (template in database)
- Stores up to 5,000,000 event logs
- 1/4,000 second matching speed
- 25,000 lux operating illuminance
- LCD display
- Ethernet port
- WiFi
- Wiegand output
- 2x inputs
- 1x relay output
compatible with FaceStation 2. **RF read range will vary depending on the installation environment.
Product Specifications
| FaceStation 2 | |
| Credential | |
| Biometric | Face |
| RF Options FS2-D FS2-AWB | 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, NFC 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE |
| RF Read Range* | MIFARE/DESFire/ iCLASS : 50 mm EM/HID Prox/FeliCa: 30 mm, BLE: 50 mm |
| General | |
| CPU | 1.4 GHz Quad Core |
| Memory | 8GB Flash + 1GB RAM |
| LCD type | 4†color TFT LCD |
| LCD resolution | 800 x 480 pixels |
| IR LED | 140 ea |
| Sound | 24 bit Voice DSP (echo cancellation) |
| Operating temperature | -20°C ~ 50°C |
| Operating humidity | 0% ~ 80%, non-condensing |
| Dimensions (W x H x D) | 141 x 164 x 125 |
| Weight | Device: 548g, Bracket: 74g (incl. washer and bolt) |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, BT SIG |
| Power | DC 24V 2.5 A |
| Face | |
| Image dimension | 720 x 480 pixels |
| Live Face Detection | Supported |
| Capacity | |
| Max. User | 30,000 (1:1), 4,000(1:N) |
| Max. Log | 5,000,000 (text), 50,000 (image) |
| Interfaces | |
| Wi-Fi | IEEE 802.11 b/g (FS2-AWB only) |
| Ethernet | Supported (10/100/1000 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (Selectable) |
| Wiegand | 1ch In and 1ch Out |
| TTL input | 2 Inputs |
| Relay | 1 Relay |
| USB | USB 2.0 (Host) |
| Tamper | Supported |
| Video Phone | SIP-based VoIP (Video + Voice) |
