Aetek A1000

from $250.64 (incl. GST)

POSMarket SKU: Z15792

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Affordable AC24V (DC24V Optional) Camera Housing, also comes with IR housing version

Product Overview

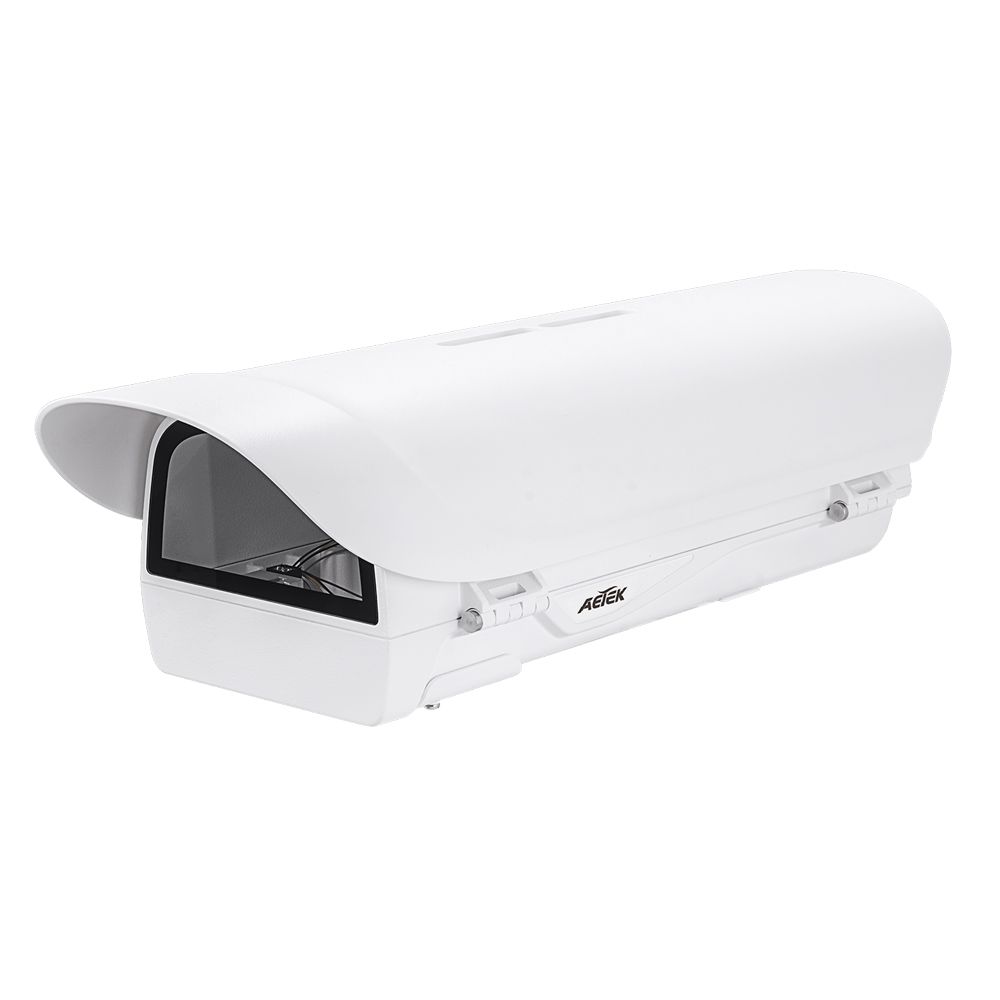

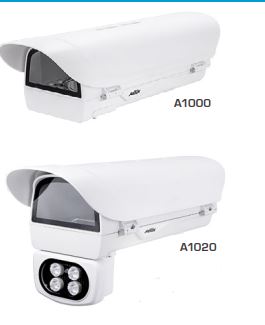

The Aetek A10 Series is a cost-effective camera housing that is supported with 24VAC/DC input and is equipped with a heater and blower to demist and de-ice the window. It is compatible with most of today's box/fixed cameras and is even capable of being used with wide-angle or long-distant vari-focus lenses. This camera housing is constructed with cast aluminum to meet IP68 and IK10 standards and all components have been tested to work in temperatures between -20 and 65 degrees Celsius.

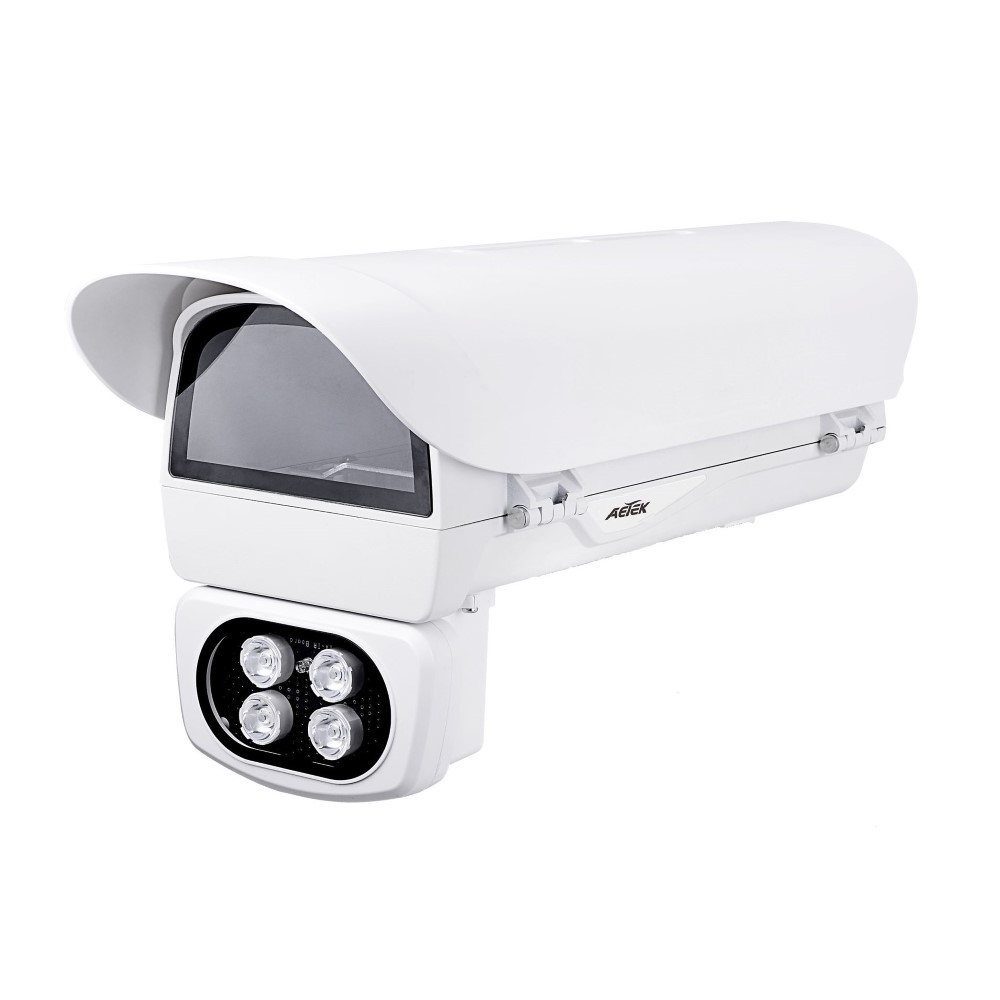

Additionally, the A1020 is designed with built-in IR illuminator for night mode environment.

Numerous available accessories include junction box, power box, brackets, and adapters for diversified installations.

Features
  • Window heater and blower enables demisting and anti-icing for window
  • Adjustable sunshield
  • Accommodates box cameras that are equipped with wide-angle lens and long-distance lens (8 -80 mm)
  • Supported 24VAC/DC power input
  • IP66 standard
  • IK10 impact rated cast aluminium housing
  • For model *A1020 Built-in IR LEDs viewing up to 50m
  • For model *A1020 Plug-and-play over a single network cable

Product Specifications

A1000
A1020
Electrical Specifications
Input Voltage
30W
24VAC/DC Output Power Budget
48W
IR LEDs Range
‐‐‐
Up to 50m
Power Consumption
Window Heater: 10W
Blower: 2W
Camera: 6 ~ 8W
Window Heater: 10W
Blower: 2W
Camera: 6 ~ 8W IR LEDs: 6W
Environmental Specifications
Operating Temperature*
-20°C ~ 65°C (-4°F ~ 149°F)
-20°C ~ 50°C (-4°F ~ 122°F)
Window Heater ON / OFF
<30°C (86°F) ON
Blower ON / OFF
>30°C (86°F) ON
Weather Rating
IP68
IP66
Vandal Proof
IK10 Impact Rated on Cast Aluminum Housing
Mechanical Specifications
Body Material
Cast Aluminum
Body Weight
2.2 kg (4.85 lb)
2.48 kg (5.46 lb)
Cable Grants
M16 x 4
IR LEDs Dimensions
---
135 x 88 x 87 mm (5.32x3,47x3.43")
IR LEDs Weight
---
0.34 kg (0.75 lb)
