Aetek A5020
POSMarket SKU: Z15764
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

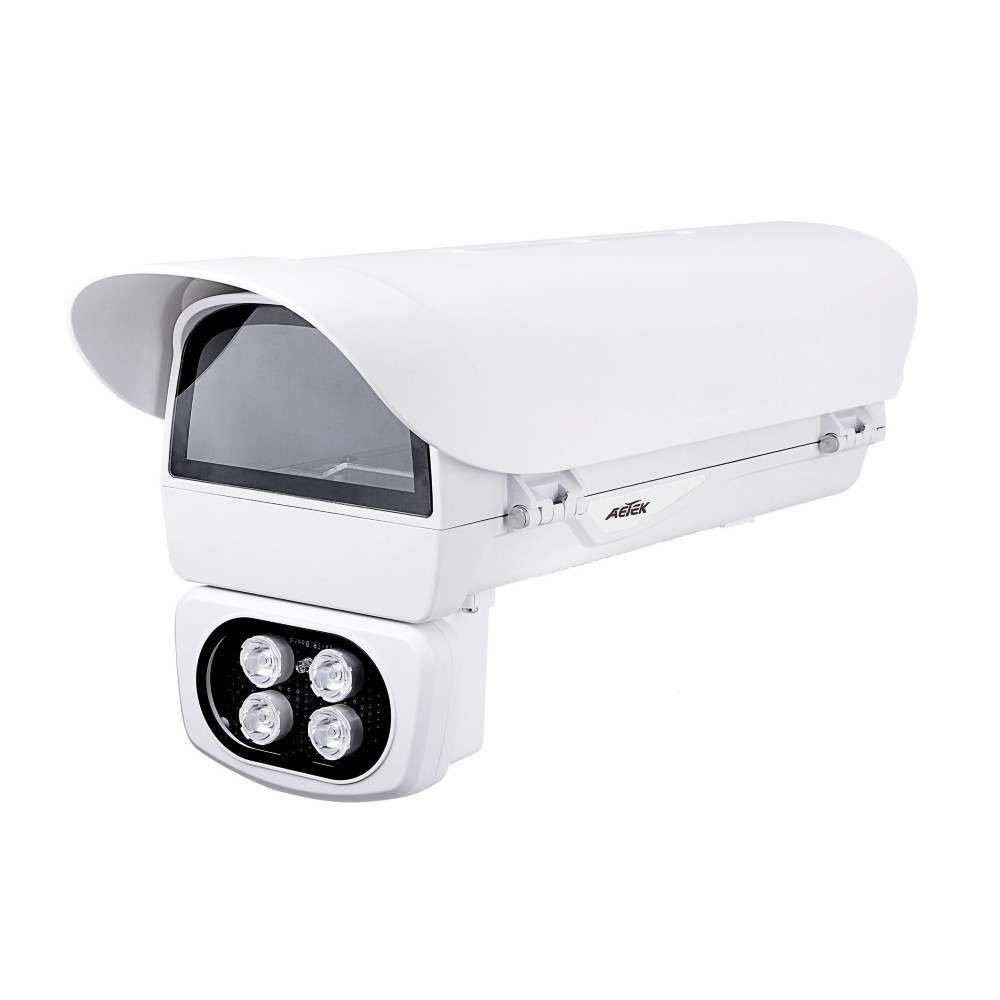

An affordable 30W PoE Camera Housing w/IR
Product Overview
Features
- IP66 standard
- IK10 impact rated cast aluminum housing
- Window heater & blower enable demisting / deicing for window
- Adjustable sunshield
- Accommodates box cameras equipped wide-angle lens & long-distance lens (8 -80 mm)
- Supported 30W PoE input
- Built-in IR LEDs viewing up to 50m

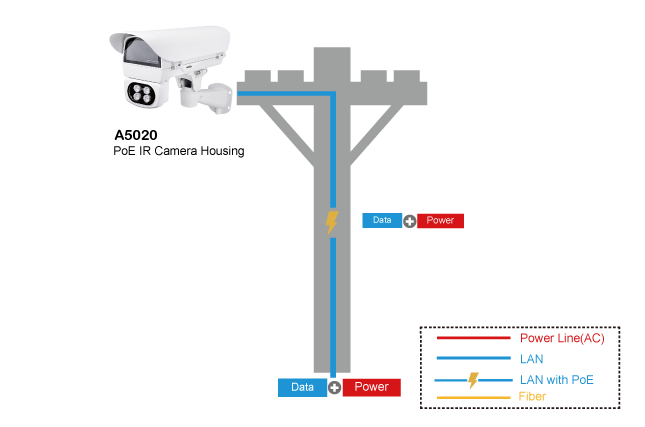

- Plug-and-play over a single network cable
Product Specifications
| A5020 | |
| Electrical Specifications | |
| Input Voltage | PoE at 50~57VDC |
| Max Output Power Budget | 25 W thru 30W PoE PSE |
| 12VDC Output Power Budget | 12W |
| Camera Power Input | PoE |
| IR LEDs Range | Up to 50m |
| Power Consumption | Window Heater: 5W Blower: 2W Camera: 6 ~ 8W IR LEDs: 6W |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) * Inside camera specifications must be within -20°C ~ 50°C |
| Window Heater | ON / OFF ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF |
| Weather Rating | IP66 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 502.8 x 170 x 217.4 mm |
| Body Material | Cast Aluminum |
| Body Weight | 2.2 kg (4.84 lb) |
| Cable Grants | M16 x 4 |
| IR LEDs Dimension | 135 x 88 x 87 mm |
| IR LEDs Weight | 0.34 kg (0.75 lb) |

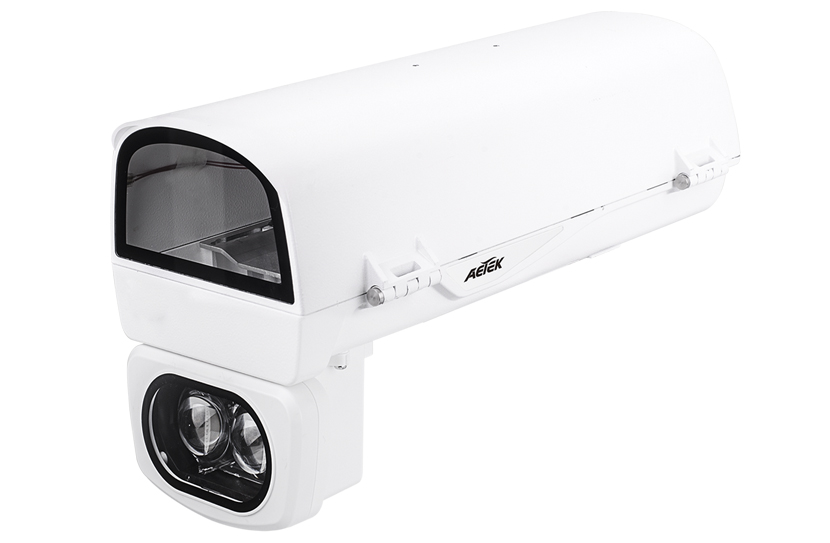

| A5000 | |
| Electrical Specifications | |
| Input Voltage | PoE at 50~57VDC |
| Max Output Power Budget | 25 W thru 30W PoE PSE |
| 12VDC Output Power Budget | 12W |
| Camera Power Input | PoE |
| Power Consumption | Window Heater: 5W; Blower: 2W; Camera: 6 ~ 8W |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) * Inside camera specifications must be within -20°C ~ 65°C |
| Window Heater ON / OFF | ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F)OFF |
| Weather Rating | IP68 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 502.8 x 170 x 158.5 mm |
| Body Material | Cast Aluminum |
| Body Weight | 2.2 kg (4.85 lb) |
| Cable Grants | M16 x 4 |
