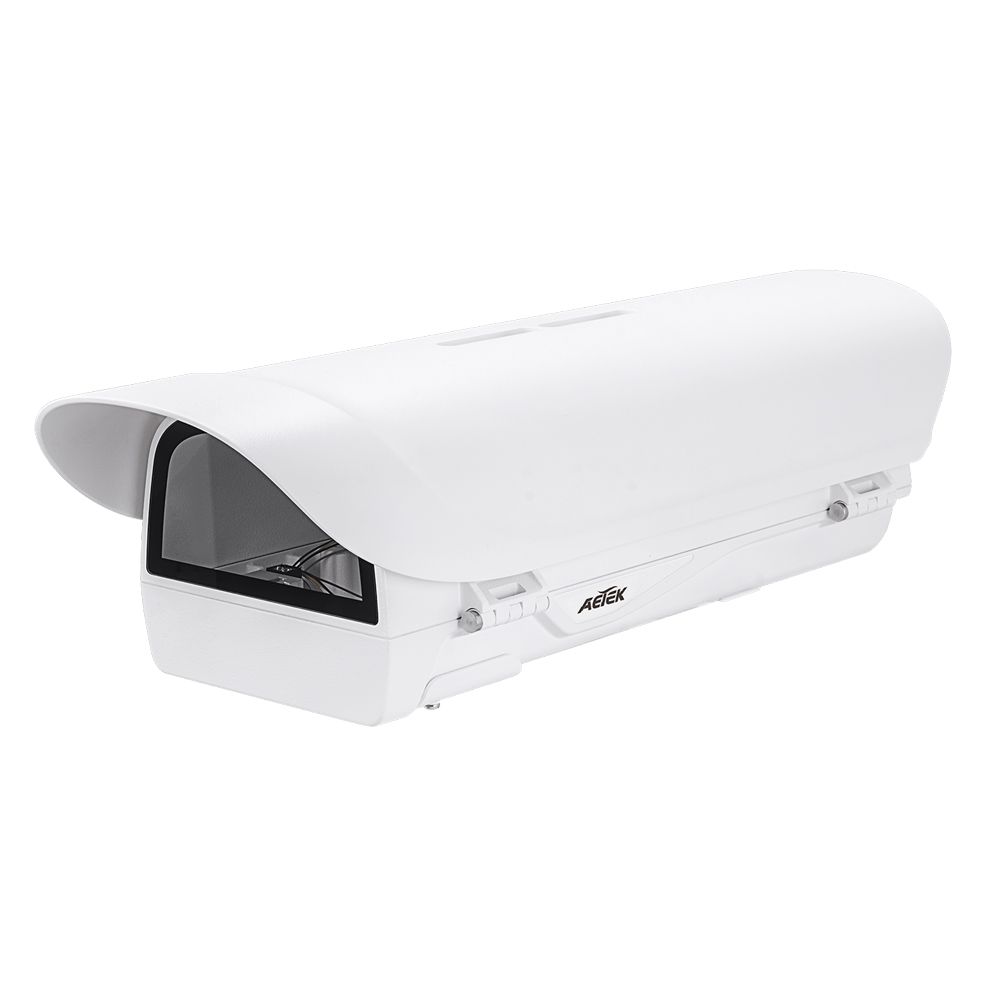

Aetek P2000-AI
POSMarket SKU: Z15797
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Professional AC24V (DC24V Optional) Cold Start Camera Housing, also comes with a wiper version camera housing
Product Overview
Features
- IP66 standard (P2000-IW, P2000-AIW)
- IP68 standard (P2000-I, P2000-AI)
- IK10 impact rated cast aluminum housing
- Heater & blower enable demisting / deicing for window
- Adjustable sunshield
- Side-opening alarm switch
- ITB (Illuminator Touch Board) snaps IR LEDs directly to the housing & conceals the wiring
- Accommodates box cameras equipped with wide-angle lenses & long-distance remote focus lenses (8-80 mm)
- Built-in wiper (P2000-IW, P2000-AIW)
- Camera heater supports cold start at -40°C(P2000-AI, P2000-AIW)
Product Specifications
| P2000-AIW | |
| Electrical Specifications | |
| Input Voltage | 24VAC (24VDC Optional) |
| DC12V Output Power Budget | 30W |
| AC24V Output Power Budget | 80W |
| Power Consumption | Window Heater: 10W Blower: 2W Camera: 6 ~ 8W Cold Start Heater: 30W Wiper: 6W |
| Optional VAIR LEDs Power Consumption | VR-060: 6W VR-120: 12W VR-240/241: 24W VR-480/481: 48W |
| Optional | 10L Water Tank & Pump TP-100: 12W |
| Environmental Specifications | |
| Operating Temperature | -50°C ~ 65°C (-58°F ~ 149°F) -50°C ~ 50°C (w/IR LEDs) Cold Startup: -40°C (-40°F) * Inside camera specifications must be within -20°C ~ 65°C |
| Window Heater ON / OFF | ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Cold Start Heater ON/OFF | ≤ 0°C (32°F) ON ≥ 5°C (41°F) OFF |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF |
| Weather Rating | IP66 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 502.8 x 170 x 158.5 mm |
| Body Material | Cast Aluminum |
| Body Weight | 2.9 kg (6.39 lb) |
| Cable Grants | M16 x 4 |
| P2000-AI | |
| Electrical Specifications | |
| Input Voltage | 24VAC (24VDC Optional) |
| DC12V Output Power Budget | 30W |
| AC24V Output Power Budget | 80W |
| Power Consumption | Window Heater: 10W Blower: 2W Camera: 6 ~ 8W Cold Start Heater: 30W |
| Optional VAIR LEDs Power Consumption | VR-060: 6W VR-120: 12W VR-240/241: 24W VR-480/481: 48W |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) -50°C ~ 50°C (w/IR LEDs) Cold Startup: -40°C (-40°F) * Inside camera specifications must be within -20°C ~ 65°C |
| Window Heater ON / OFF | ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Cold Start Heater ON/OFF | ≤ 0°C (32°F) ON ≥ 5°C (41°F) OFF |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF |
| Weather Rating | IP68 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 502.8 x 170 x 158.5 mm |
| Body Material | Cast Aluminum |
| Body Weight | 2.8 kg (6.17 lb) |
| Cable Grants | M16 x 4 |
