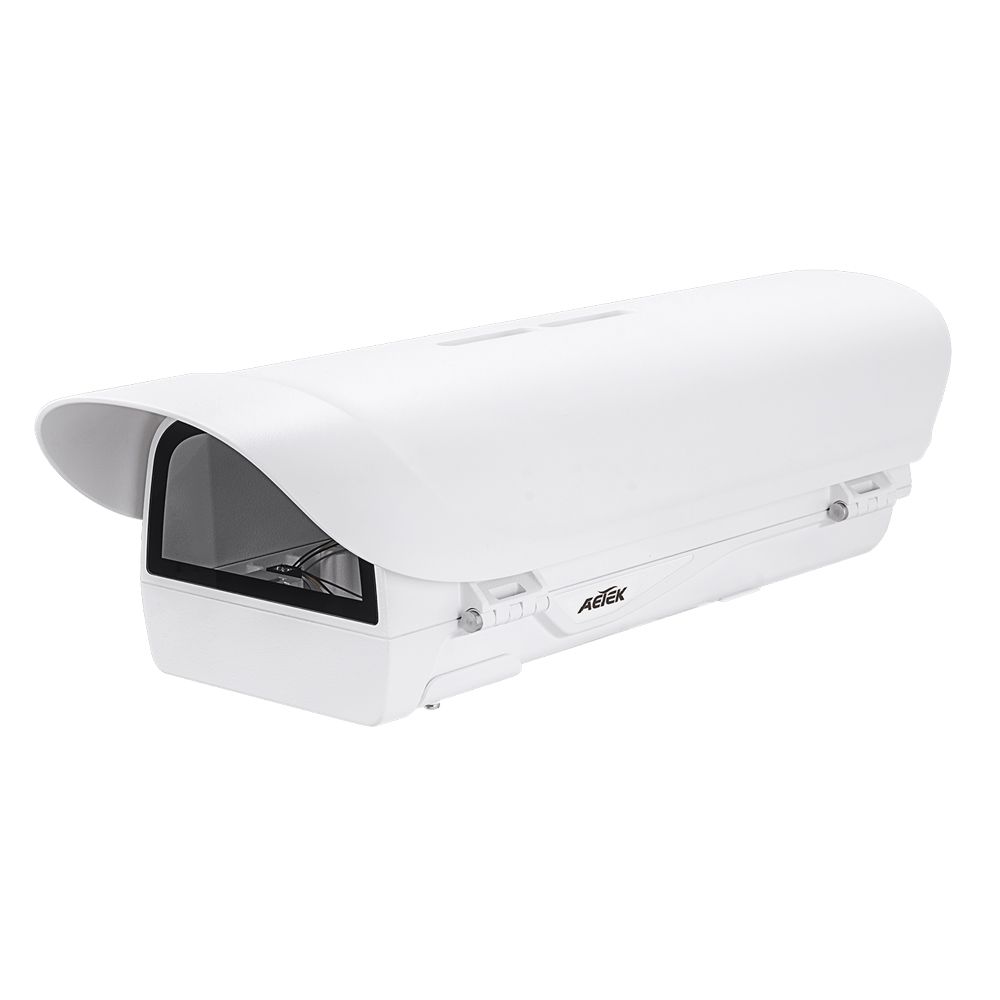

Aetek P2000-I
POSMarket SKU: Z15907
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Professional 24VAC Camera Housing
Product Overview
Some models also offer a built-in wiper or -40°C cold start.
Numerous available accessories include junction box, power box, water tank, brackets, and adapters for diversified installations.
Features
- Window heater and blower enables demisting and anti-icing for window
- Adjustable sunshield
- Side-opening alarm switch
- Illuminator touch board (ITB) snaps IR LEDs directly to the housing and conceals wiring
- Accommodates box cameras that are equipped with wide-angle lens and long-distance lens (8 -80 mm)
- IP66 standard
- IK10 impact rated cast aluminium housing
- Built-in wiper with model*P2000-IW
Product Specifications
| P2000-I | |
| Electrical Specifications | |
| Input Voltage | AC24V (DC24V Optional) |
| DC12V Output Power Budget | 30W |
| AC24V Output Power Budget | 80W |
| Power Consumption | Window Heater: 10W; Blower: 2W; Camera: 6 ~ 8W |
| Optional Vari IR LEDs Power Consumption | VR-060: 6W VR-120: 12W VR-240/241: 24W VR-480/481: 48W |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) -20°C ~ 50°C (w/IR LEDs) * Inside camera specifications must be within-20°C ~ 65°C |
| Window Heater ON / OFF | ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF |
| Weather Rating | IP68 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 502.8 x 170 x 158.5 m |
| Body Material | Cast Aluminum |
| Body Weight | 2.8 kg (6.17 lb) |
| Cable Grants | M16 x 4 |
| P2000-IW | |
| Electrical Specifications | |
| Input Voltage | AC24V (DC24V Optional) |
| DC12V Output Power Budget | 30W |
| AC24V (DC24V Optional) Output Power Budget | 80W |
| Power Consumption | Window Heater: 10W; Blower: 2W; Camera: 6 ~ 8W; Wiper:6W |
| Optional VAIR IR LEDs Power Consumption | VR-060: 6W VR-120: 12W VR-240/241: 24W VR-480/481: 48W |
| Optional 10L Water Tank & Pump | TP-100: 12W |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) -20°C ~ 50°C (w/IR LEDs) * Inside camera specifications must be within -20°C ~ 65°C |
| Window Heater ON / OFF | ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF |
| Cold Start Heater ON/OFF | - |
| Blower ON / OFF | ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF |
| Weather Rating | IP66 |
| Vandal Proof | IK10 Impact Rated on Cast Aluminum Housing |
| Mechanical Specifications | |
| Dimensions (L x W x H) 502.8 x 170 x 158.5 mmBody Material | Cast Aluminum |
| Body Weight | 2.9 kg (6.39 lb) |
| Cable Grants M16 x 4 |
