Aetek PB-024-1AC
POSMarket SKU: Z15806
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

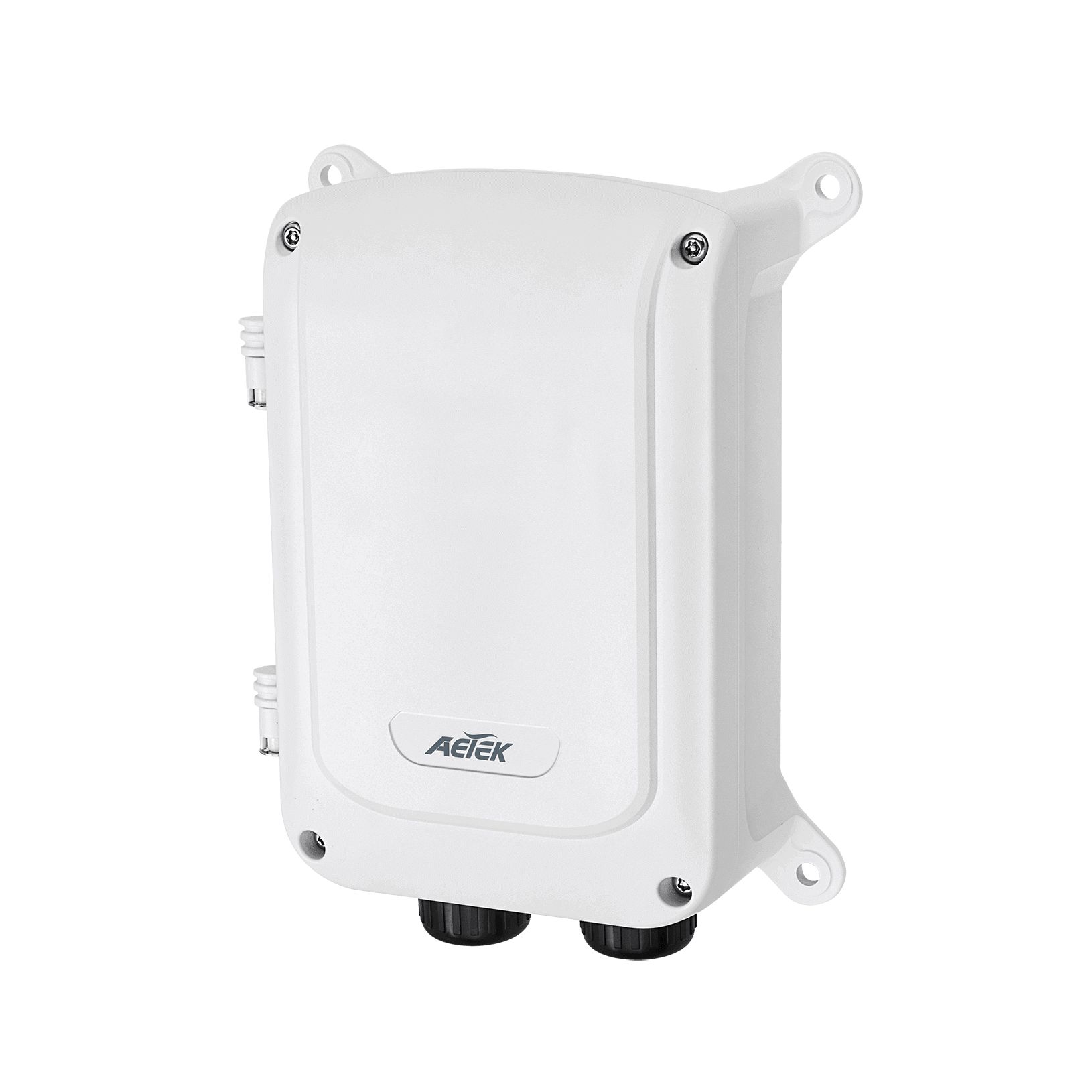

Outdoor Power/Junction Box
Product Overview
- Outdoor Power Box for Camera Housing Use. (PB-024-1AC)

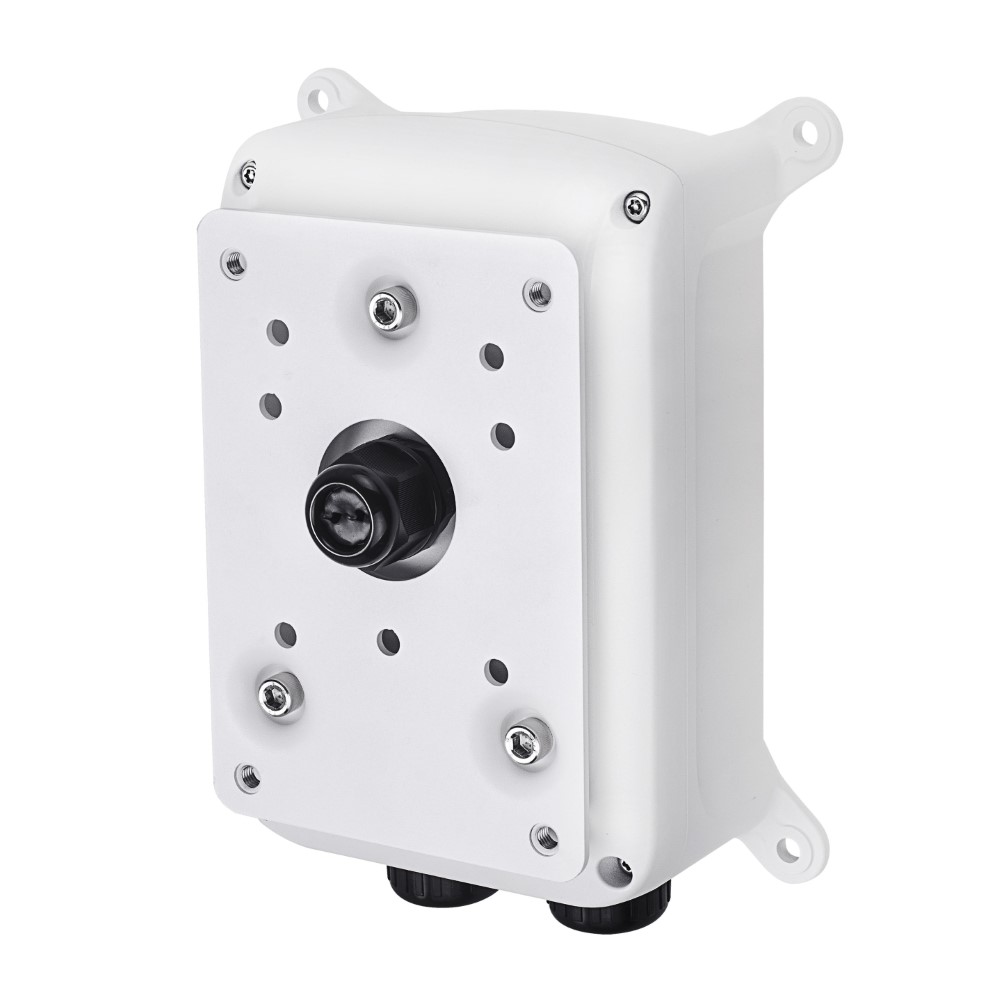

- PB-024-2AC:
- Input Power: 115/230VAC
- Output Power : 24VAC/6A
- Supported Models : A10/P20 Camera Housing Series
Call 1300 737 998
Product Specifications
| PB-024-1AC | |
| Construction | Aluminum |
| Dimensions | 255.2 x 199.9 x 90 mm |
| Input Power | 115/230VAC |
| Output Power | 24VAC/6A |
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
| Color | White |
| Weight | 3.35 KG |
| Connectors | PF 3/4"x1 + M25x1 |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Certification | CE, FCC, LVD |
| Supported Models | |
| Camera Housing | A10/P20 Series |
| Pole Mount | AT-100,AT-101 |
| Corner Mount | AT-200 |
| Surge | SD-101 |
| PB-024-2AC | |
| Construction | Aluminum |
| Dimensions | 255.2 x 199.9 x 90 mm |
| Input Power | 115/230VAC |
| Output Power | 24VAC/6A |
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
| Color | White |
| Weight | 3.35 KG |
| Connectors | PF 3/4"x1 + M25x1 |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Certification | CE, FCC, LVD |
| Supported Models | |
| Camera Housing | A10/P20 Series |
| Mount Bracket | BK-100, BK-101 |
| Pole Mount | AT-100,AT-101 |
| Corner Mount | AT-200 |
| Surge | SD-101 |
