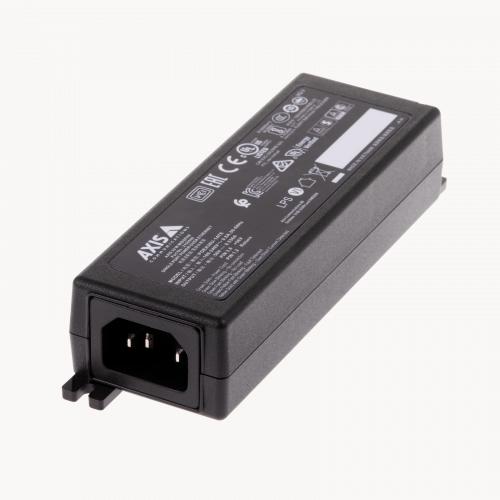

Axis 30 W Midspan
POSMarket SKU: Z15221
02172-006: Indoor PoE Midspan, 802.3af, 30W, 56V DC
1-port midspan that can deliver up to 30 W to one network device, for indoor use, 240 V AC
Product Overview
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure. Power PoE/PoE+ devices such as IP cameras with the single-port 30W Midspan from Axis Communications. This unit will support devices that require up to 30W of PoE power. It complies with IEEE 802.3af/at standards and supports 1000 Mb/s passthrough data rates.
FEATURES
- IEEE 802.3af and IEEE 802.3at
- 10/100/1000 Mbps
- 100 to 240 V AC
- Plug-and-play
Product Specifications
| 30 W Midspan | |
| Type | Injector |
| General | |
| Connectors | 2 x RJ45 1 x C13 |
| Shielded Connections | Yes |
| Supported IEEE Standards | 802.3af, 802.3at |
| Electrical | |
| Power Consumption | 100 mW |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -40 to 167°F / -40 to 75°C |
| Physical | |
| Environmental Use | Indoor |
| LED Indicators | Yes |
| Material of Construction | Plastic |
| Wall Mountable | Yes |
| Dimensions | 5.5 x 1.8 x 1.2" / 140.1 x 46.0 x 30.0 mm |
| Weight | 0.3 lb / 145 g |
