Axis C1410

$726.00 (incl. GST)

POSMarket SKU: Z15189

01916-001: C1410 Network Mini Speaker, PoE, 2.5 Inch, 7 Watt

Axis' Network Mini Speaker with wide-area coverage for voice messages

Product Overview

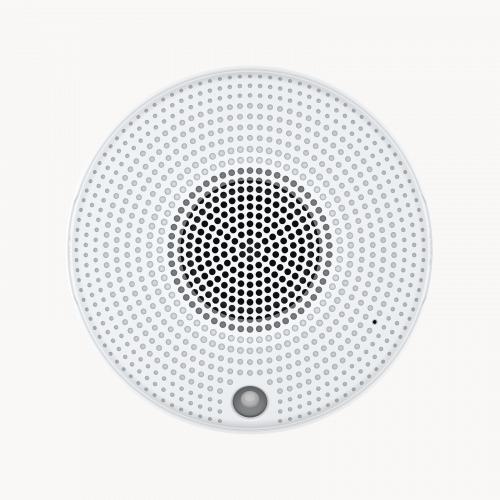

The Axis / AXIS-01916-001 Network Mini Speaker is designed to be a discrete speaker which provides wide-area audio coverage. Perfect for small spaces, and armed with Digital Signal Processing (DSP), this speaker allows for clear and concise messages to be delivered.

All-in-one and easy

AXIS C1410 is an all-in-one unit. There’s no need for separate power amplifier and signal processor (DSP). Pre-configured digital signal processing produces clear voice every time. Onboard memory supports pre-recorded messages. Or, personnel can respond to notifications with live speech. Thanks to the built-in microphone, AXIS C1410 also supports two-way communication allowing you to get an immediate response from the people involved such as acknowledgement of your instructions, providing more info when needed, etc. The microphone can also be used for remote health testing of the speaker, so you know it’s working.

A speaker everywhere you need one

Thanks to its small and flexible design, you can combine AXIS C1410 with other Axis network speakers and enjoy complete audio coverage throughout your premise. You can install it anywhere, also in smaller environments. On ceilings, walls, and in narrow corridors. And it blends discreetly into any indoor environment. To complement your AXIS C1410 we also offer AXIS TC1601 Universal Mount enabling a variety of installation possibilities.

FEATURES
  • All-in-one speaker system
  • Connects to standard network
  • Simple installation with PoE
  • Remote health testing

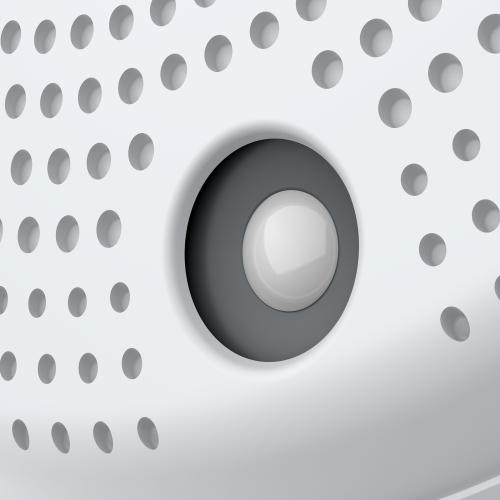

  • PIR sensor for motion detection

Product Specifications

C1410 Network Mini Speaker
Audio
Audio Streaming One-Way/Two-Way (Mono)
Audio Encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in Mono/Stereo from 64 to 320 kb/s
CBR and VBR
Sampling Rate from 8 to 48 kHz
Audio Input/Output Built-In Microphone (Can Be Disabled Mechanically)
Built-In Microphone Specifications: 50 Hz to 12 kHz
Speaker
Enclosure One-Way Enclosure with 2.5" / 6.4 cm Broadband Dynamic Cone Speaker
Max SPL 90 dB
Frequency Response 100 Hz to 20 kHz
Coverage Pattern 140°Coaxial
Amplifier
Type Built-In 7 W Class D Amplifier
Network
Security Password Protection, IP Address Filtering, HTTPS Encryption, IEEE 802.1x Network Access Control, Digest Authentication, User Access Log, Centralized Certificate Management
Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
System Information
API Open API for Software Integration, including VAPIX, AXIS Video Hosting System (AVHS) with One-Click Connection, AXIS Camera Application Platform (ACAP)
VoIP Support for Session Initiation Protocol (SIP) for Integration with VoIP Systems, P2P or Integrated with SIP/PBX
Synchronization Built-In Audio Synchronization for up to 50 Speakers with Unicast and Hundreds of Speakers with Multicast
Audio Intelligent Audio: Auto Speaker Test
Event Triggers Virtual Inputs, AXIS Camera Application Platform (ACAP)
Call: DTMF, State Changes
Event Actions Play Audio Clip, Send SNMP Trap, Send Auto Speaker Test, Status LED, File Upload via HTTP, Network Share and Email, Notification via Email, HTTP, HTTPS, and TCP
Built-In Installation Aids Test Tone Verification and Identification
General
Casing IP40-Rated White Plastic Casing
Memory 256 MB RAM, 512 MB Flash
Power PoE IEEE 802.3af/at Type 1 Class 3 (Maximum 12.95 W)
Connectors 100M RJ45 PoE
Reliability Designed for 24/7 Operation
PIR Sensor Range 19.7' / 6 m
Video Management Software AXIS Companion, AXIS Camera Station, VMS from Axis' Application Development Partners
Languages English, German, French, Spanish, Italian
Operating Conditions 4 to 122°F / -20 to 50°C
Humidity: 10-85% RH (Condensing)
Storage Temperature -40 to 149°F / -40 to 65°C
Dimensions 7.2 x 2.1" / 182 x 52 mm
Weight 1.3 lb / 600 g
