Axis S1148
POSMarket SKU: Z15033
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis' camera station recorder that is out-of-the box ready server for UHD surveillance
Product Overview

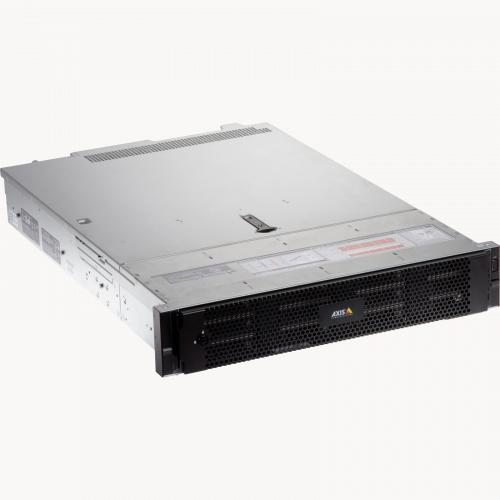

AXIS Camera Station S1148 Recorder is an out-of-the-box, ready-to-use recording solution designed to deliver reliable high-definition surveillance. This recorder comes as a rack server, with the possibility to add extra hard disks and a storage capacity of up to 144 TB. This easy-to-install solution includes AXIS Camera Station video management software licenses for mid-sized installations, so you have everything you need to help ensure every customer installation is trouble-free. From manufacturing facilities to schools and retail, AXIS Camera Station S1148 Recorder meets the requirements of a wide variety of businesses and industries. It’s ideal whenever reliable and secure surveillance is required.
FEATURES
- 2U Rackmount form factor
- 24TB of raw storage (6 x 4TB)
- Supports RAID 5
- Quick system setup and intuitive operation
- Includes 48 AXIS Camera Station licences
- Expandable up to 64 cameras
Product Specifications
| Video | |
| Licenses | 48 Camera Station Core Licenses Included Supports up to 64 Licenses |
| Processor | Intel Xeon Bronze 3104 |
| Memory | 8 GB |
| Storage | S1148 24 TB Hot swappable Enterprise Class HDD Total HDD slot: 8 Free HDD slot: 2 Out-of-the-box storage: 20 TB after RAID 5 Out-of-the-box capacity without RAID: 24 TB (6x4 TB) S1148 64 TB Hot swappable Enterprise Class HDD Total HDD slot: 12 Free HDD slot: 4 Out-of-the-box storage: 56 TB after RAID 5 Out-of-the-box capacity without RAID: 64 TB (8x8 TB) S1148 140 TB Hot swappable Enterprise Class HDD Total HDD slot: 12 Free HDD slot: 0 Out-of-the-box storage: 120 TB after RAID 6 Out-of-the-box capacity without RAID: 144 TB (12x12 TB) |
| RAID | S1148 24 TB Factory RAID level: 5 RAID levels: 0, 1, 5, 6, 10 S1148 64 TB Factory RAID level: 5 RAID levels: 0, 1, 5, 6, 10 S1148 140 TB Factory RAID level: 6 RAID levels: 0, 1, 5, 6, 10 |
| Operating System Recovery | Yes |
| Operating System Drive | 240 GB SSD |
| Video Streaming | Not Intended for Local Video |
| Total Recording Rate | Up to 512 Mb/s |
| Power | S1148 24 TB 2 x 495 W hot-plug redundant power supplies (included) (100-240 V AC, 6.5 - 3 A, 50/60 Hz) S1148 64 TB 2 x 750 W hot-plug redundant power supplies (included)(100-240 V AC, 10 - 5 A, 50/60 Hz) S1148 140 TB 2 x 750 W hot-plug redundant power supplies (included)(100-240 V AC, 10 - 5 A, 50/60 Hz) |
| Connectors | 2 x USB 3.1 1 x USB 3.1 Type-C 2 x USB 2.0 2 x RJ45 Gigabit Ethernet 2 x VGA 1 x Serial Port |
| Operating Temperature | 50 to95°F / 10 to 35°C |
| Operating Humidity | 20 to 80% RH, Non-Condensing |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Rack Height | 2 RU |
| Dimensions | 26.8 x 19.0 x 3.4" / 681 x 482 x 87 mm |
| Weight | S1148 24 TB 20.3 kg (45 lb) S1148 64 TB 22.3 kg (49 lb) S1148 140 TB 26.5 kg (58 lb) |
