Axis T8061
POSMarket SKU: Z15140
5801-641: T8061 Ethernet Surge Protector, Up to 1 Gbps, 10kV, IP66
Axis' Ethernet Surge Protector to protect PoE device from lightning
Product Overview

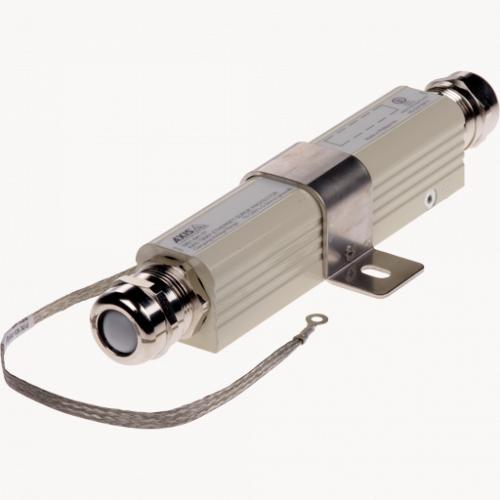

The T8061 Ethernet Surge Protector from Axis Communications to a wall with the included mount to protect your Ethernet lines and network devices from surges. Ideally mounted outside of the building, this surge protector is IP66- and NEMA-4X-rated for protection against dust, water, ice, and corrosion. It supports data rates of up to 1 Gbps and protects your devices from surges up to 10kV.
Install AXIS T8061 before the cable enters the building or immediately adjacent to a wall or pole-mounted network cameras. With a network device and a surge protector from Axis, you get first-class support from a single point of contact. For installation indoors or in an electrical enclosure cabinet, please use AXIS TU8001 Ethernet Surge Protector.
FEATURES
- Protects up to 10 kV surge
- Supports data rates of up to 1 Gbps
- Robust and waterproof - IP66 rated
- Can be wall or pole mounted
- Tested with Axis devices
Product Specifications
| T8061 Ethernet Surge Protector | |
| Casing | IP66- and NEMA-4X-rated metal enclosure |
| Mounting | Wall |
| Surge Protection | 10 kV, 5 kA to ground in 8/20 µs 800 V, 100 A PoE |
| Input Power | 95 W maximum |
| Input Current | 2 A maximum |
| Data Rates | Up to 1 Gbps |
| Connectors | RJ45 10Base-T/100Base-TX/1000Base-T PoE |
| Operating Temperature | -40 to 185°F (-40 to 85°C) |
| Operating Humidity | 10 to 95% non-condensing |
| Dimensions | Surge Protector Only: 7.1 x 1.1 x 1.1" (181 x 29 x 29 mm) With Wall Mount Bracket: 7.1 x 1.3 x 2.9" (181 x 32 x 74 mm) |
| Weight | 0.6 lb (270 g) |
