Axis T94S01P

$288.75 (incl. GST)

POSMarket SKU: Z15058

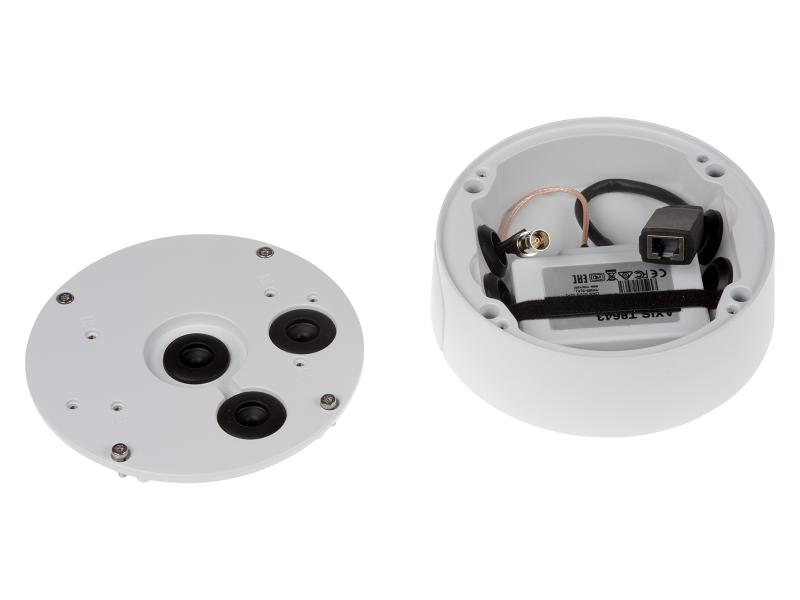

01190-001: T94S01P Outdoor Conduit Back Box to suit Network Cameras, IP66 & IP67, IK10+

Axis' outdoor protection for cabling and devices connected to Axis cameras

Product Overview

Designed for a wide range of Axis network cameras, the Axis T94S01P / AXIS-01190-001 Conduit Back Box is outdoor-ready and impact resistant (IK10+) with an ingress-protected compartment for secure storage of connectivity devices. The AXIS T94S01P enables both camera and connectivity device to be safely mounted at the same point, without need for extra cabinet installation (even directly onto junction boxes). The finished installation is both aesthetically pleasing and able to withstand challenging outdoor conditions.

FEATURES
  • IP66/IP67 storage compartment for connectivity devices
  • Impact resistant (IK10+) against vandalism attempts
  • Compatible with a wide range of Axis network cameras

Product Specifications

T94S01P
Compatibility Axis P14 network camera series (requires T94F01M junction box / gang box plate)
Axis P32 network camera series
Axis P33 network camera series
Axis Q17 network camera series
Axis Q19 thermal network camera series
Axis Q35 network camera series
Axis Q36 network camera series
Environment Indoor/outdoor
Mounting Double gang box, single gang box,4" / 10.2 cm octagon junction box, 4"/ 10.2 cm square junction box
Casing Material: Powder-coated aluminum casing, stainless steel screws (TX20)
Color: White NCS S 1002-B
Cable Routing Back: 3 cable holes
Sides: 3/4" / 1.9 cm conduit entrances
Underside: 4 x gaskets C M20 0.2-0.37" / 5-9.5 mm
Top Cover: 3 x gaskets C M20 0.2-0.37" / 5-9.5 mm
Maximum Load 5 lb / 2.3 kg
Sustainability PVC-free
Approvals Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
Environment IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X
Impact IEC/EN 62262 IK10+
Dimensions Ø6.18 x 2.1" / Ø157 x 53.5 mm
Weight 1.65 lb / 750 g
