Axis TQ6501-E

POSMarket SKU: Z15135

This model is a special order item. Please contact one of our experts on 1300 737 998 for details.

Axis' Parapet mount outdoor-ready with conduit side entry and made of aluminum

Product Overview

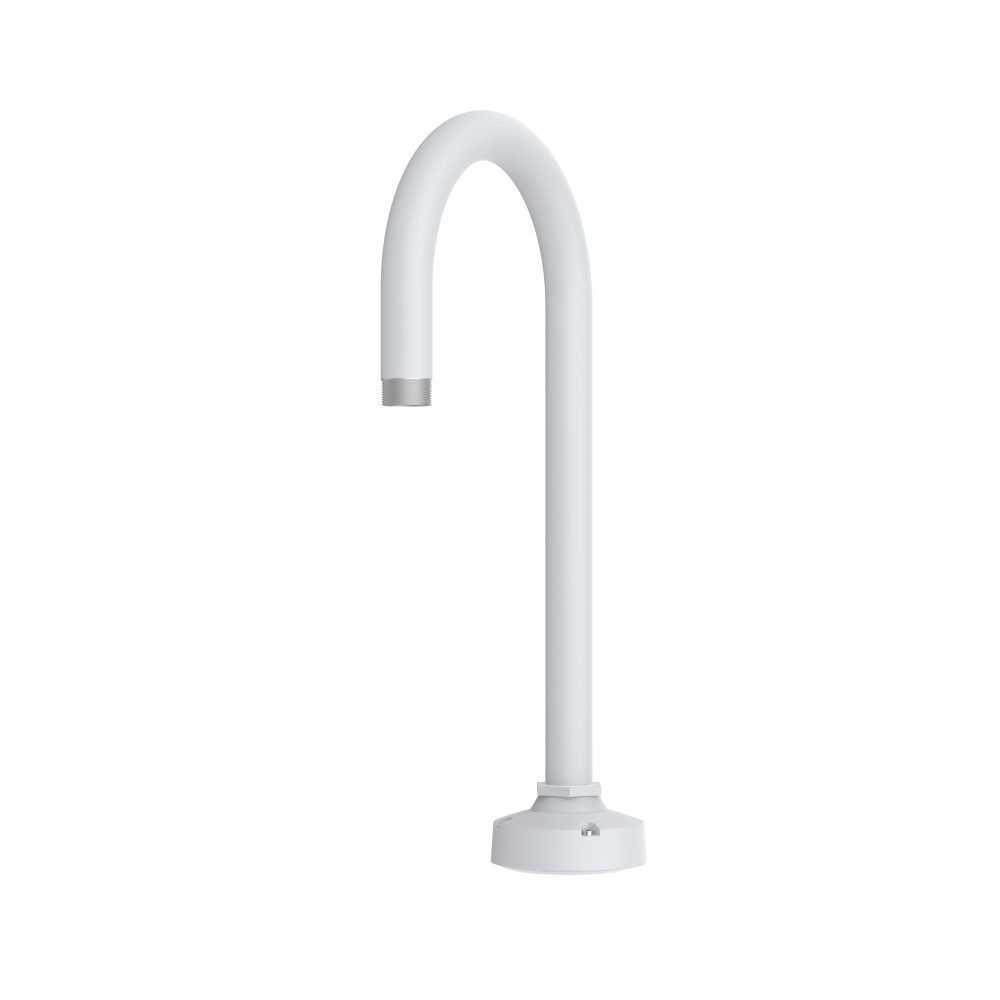

The Axis TQ6501-E Parapet Mount is a robust, outdoor-ready mount made of aluminum. The round base of the mount makes it easy to install as well as suitable for installations on poles. It’s compatible with Axis pendant kits with 1.5" NPS or NPT inner thread which enables mounting of several Axis cameras, and Axis ACI ¾’’ conduit adapters. Cables can be routed through the bottom, or from the side by using a conduit connection. AXIS TQ6501-E has four holes for standard pole mounted pan and tilt camera fixings, equi-spaced on 101.6 PCD.

FEATURES
  • Outdoor-ready
  • Lightweight, made of aluminum
  • Robust, IK10-rated
  • Easy to install
  • Compatible with standard pan tilt pole mounted camera fixings

Product Specifications

AXIS TQ6501-E Parapet Mount
General
Supported products AXIS P56 Series (requires T94A01D Pendant Kit), AXIS Q60 Series (requires T94A01D Pendant Kit), AXIS Q61 Series (requires T94A01D Pendant Kit), AXIS M5525–E (requires T94A01D Pendant Kit)
Optional accessories AXIS ACI Conduit Adapter 3/4” U-shape 30 mm, AXIS ACI Conduit Adapter 3/4” NPS, AXIS Bird Control Spike, T94A01D Pendant Kit, T94B02D Pendant Kit, T94F01D Pendant Kit, T94F02D Pendant Kit with Sunshield, T94K01D Pendant Kit, T94M01D Pendant Kit, T92M02D Pendant Kit, T94N01D Pendant Kit, T9402D Pendant Kit, T94T01D Pendant Kit, AXIS T94T02D Pendant Kit, AXIS T94V01C Dual Camera Mount, AXIS T94V01D Pendant Kit, AXIS T94V02D Pendant Kit
Environment Outdoor / Indoor
Casing Aluminium
Color: White NCS S 1002-B
This product can be repainted
Cable routing Bottom: Cable hole
Side: Cable conduit hole M20 (3/4”)
Sustainability PVC free
Halogen free
Dimensions Height: 754 mm (29.69 in)
Width: 160 mm (6.3 in)
Depth/Length: 418 mm (16.46 in)
Weight 2.5 kg (5.51 lb)
