Generic E10172
POSMarket SKU: Z15842
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

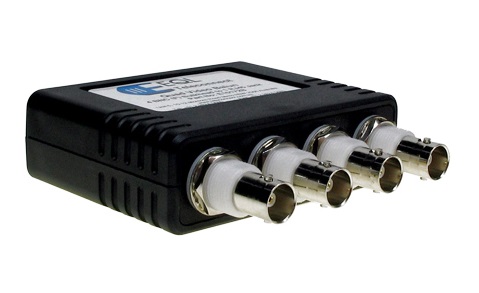

Quad Video Balun
Product Overview
These Quad Baluns enable 4 video signals to be interfaced using coaxial on one side to twisted pair cabling on the other using modular RJ45 connectors to achieve quick and reliable connections.
Features
- Offers 4 video paths from BNC Female into 1 RJ45 socket.
- Bi-directional signal conversion.
- High Reliability and Durability
- Housed in a fire retardant wall mountable Case
- Impedance 75 to 100 Ohm
- Low cost, high quality and performance
- Passive device (no power supply required)
- Stable over working temperature between 0°C to +55°C
Call 1300 737 998
Product Specifications
| Quad Video Balun | |
| Bandwidth | DC to 8MHz |
| Insertion Loss | < 2 dB to 8MHz |
| Impedance | 75 ohm Coaxial, 100 ohm RJ45 |
| Maximum Signal Voltage | 1.1 Vp-p |
| Return Loss | > 15 dB to 8 MHz |
| Cross Talk | > 50 dB to 8 MHz |
| Common Mode Rejection | > 40 dB @ 8 MHz |
| RJ45 Contacts | Gold, 50 micro inch |
| RJ45 Pin Out | 1 (+) , 2 (-) 3 (+) , 6 (-) 5 (+) , 4 (-) 7 (+) , 8 (-) |
| Temperature Range | 0 to 55 oC operating, 95% Relative Humidity |
| Casing | Fire Retardant Plastic ABS UL 94V-0 |
| Maximum Distance | Color: Up to 400 m Cat 5e B&W: Up to 600 m Cat 5e |
| Dimensions | 81 x 60 x 24 mm |
| Compatible with | E10172B Note: Specifications subject to change without notice. |
