Hanwha SLA-2M2400P

from $80.85 (incl. GST)

POSMarket SKU: Z15576

This model is available in 5 different configurations. Select a configuration below or contact our experts on 1300 737 998.

2MP Optical lens to suit HAN-PNM-9320VQP

Product Overview

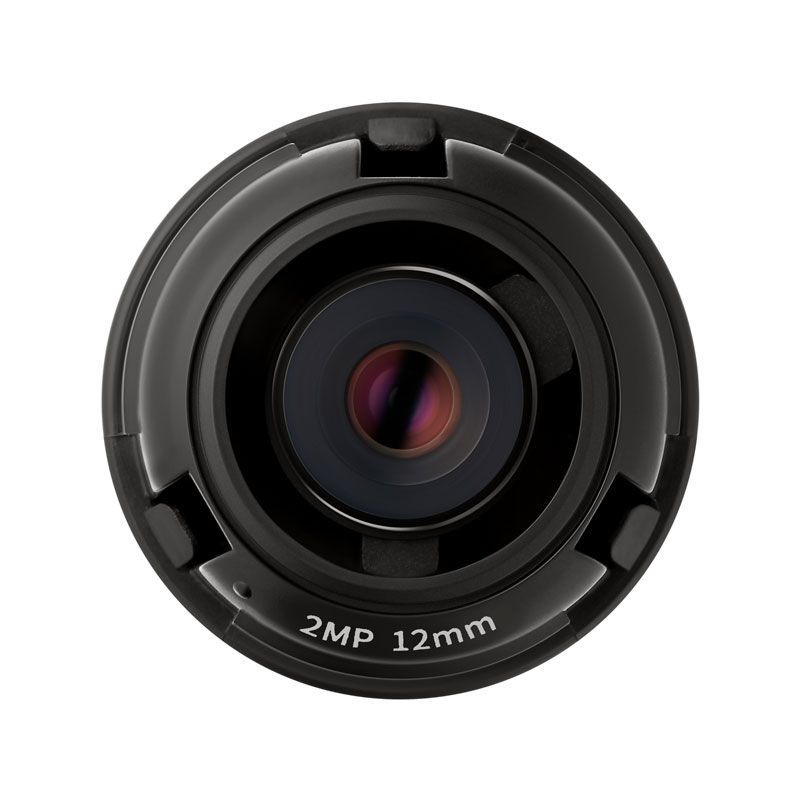

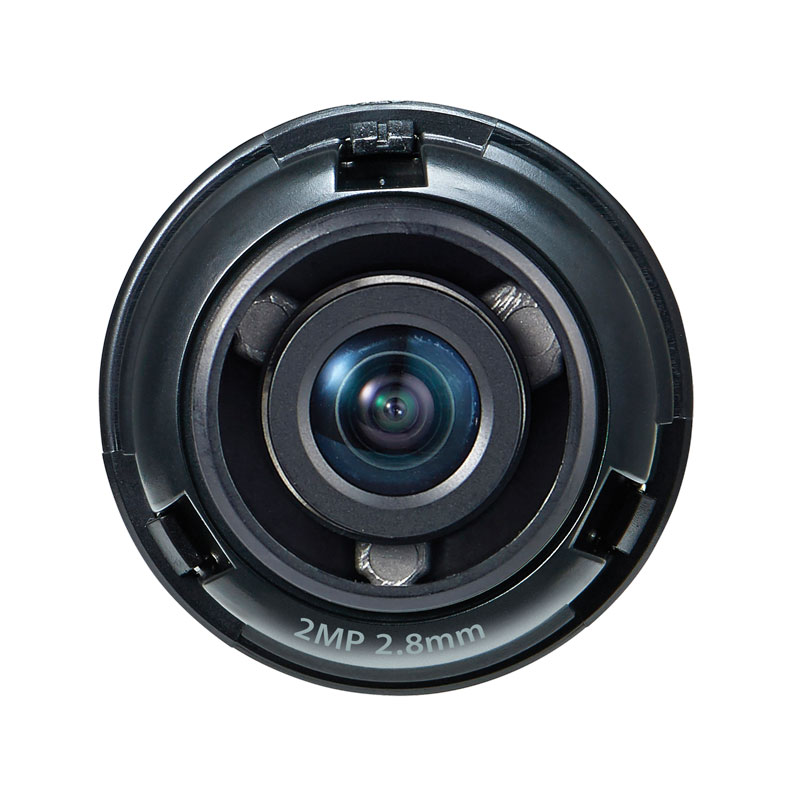

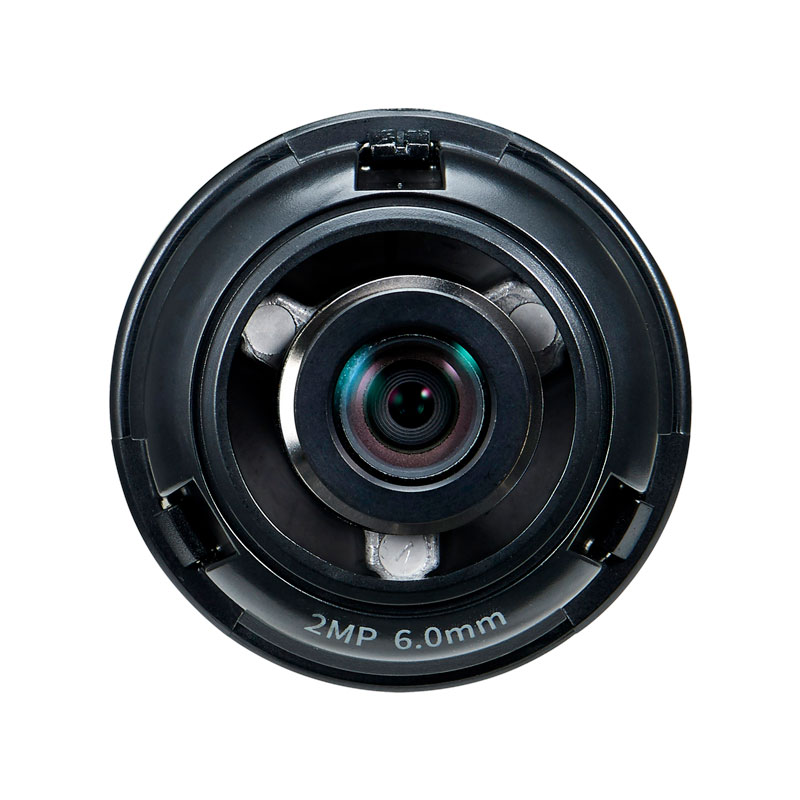

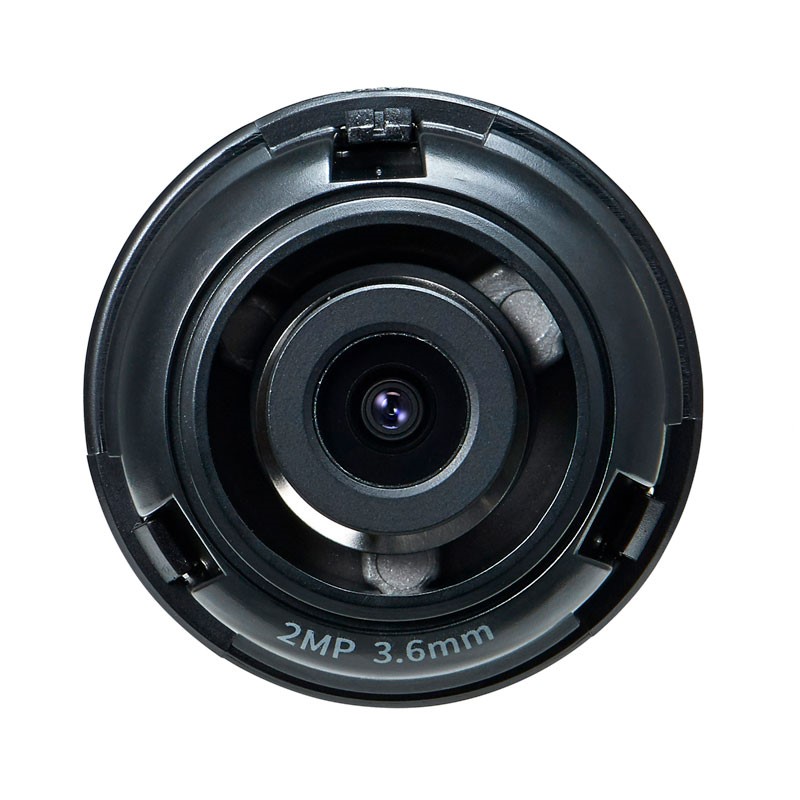

With Hanwha 2MP Fixed Focal Lens & Sensor Module you can customize your PNM-9320VQP camera. This module integrates a 1/2.8" 2M CMOS sensor and a 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens, enabling the PNM-9320VQP to capture video at up to 1945 x 1097 resolution in 135.4 x 71.2°, 107.4 x 62.2°, 94.8 x 49.3°, 50.4 x 28.8°, 26.3 x 14.9° field of view depending with lens versions. Featuring electrical day/night functionality and 150 dB wide dynamic range, the module is designed to deliver clear images in low-light conditions down to 0.055 lux and to balance exposure in scenes with sharp lighting contrasts.

FEATURES
  • For PNM-9320VQP Camera Body
  • 1/2.8" 2MP Progressive Scan CMOS Sensor
  • 1945 x 1097 Effective pixels
  • 0.055Lux at F2.0 colour, B/W
  • 150dB WDR
  • Selectable lens options: 2.4 /2.8 / 3.6 / 6.0 / 12.0mm fixed lens (2MP)
Need help finding the right part or accessory for your CCTV/ Camera? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998

Product Specifications

SLA-2M2400PSLA-2M2800PSLA-2M3600PSLA-2M6000PSLA-2M1200P
Video
Imaging Device1/2.8" 2M CMOS
Total Pixels1945(H) x 1109(V) 2.16M
Total Pixels1945(H) x 1097(V) 2.13M
Scanning SystemProgressive Scan
Min. IlluminationColor : 0.055Lux (F2.0, 1/30sec, 30IRE)
B/W : 0.055Lux (F2.0, 1/30sec, 30IRE)
S / N Ratio50dB
Wide Dynamic Range150dB
Day & NightElectrical
Lens
Focal Length (Zoom Ratio)2.4mm2.8mm3.6mm6mm12mm
Max. Aperture RatioF2.0
Angular Field of ViewH:135.4°, V:71.2°, D:161.6°H:107.4°, V:62.2°, D:122.0°H:94.8°, V:49.3°, D:114.3°H:50.4°, V:28.8°, D:58.1°H : 26.3°V : 14.9°D : 30.0°
Lens TypeFixed focal
Mount TypeM12 Lens module with main unit
Pan/ Tilt/ Rotate
Pan / Tilt / Rotate Range-90°~+90°/ +52~+56°/ -180°~+180°-90°~+90°/ +26~+80°/ -180°~+180°-90°~+90°/ +22~+84°/ -180°~+180°-90°~+90°/ +10~+95°/ -180°~+180°-90°~+90°/ +10~+97°/ -180°~+180°
Mechanical
Color / Material Black / Plastic
Dimension (W x H x D)ø35.5 x 35.9 mm (ø 1.39" x 1.41")
Weight30g (0.07 lb)
Loading configurations…
Loading accessories…
Loading downloads…

Product Videos

No videos found for this product.

Please contact our team using the Ask an Expert form or call us on 1300 737 998.
