Hanwha SLA-2M6000D

from $72.77 (incl. GST)

POSMarket SKU: Z15553

This model is available in 4 different configurations. Select a configuration below or contact our experts on 1300 737 998.

2MP Sensor Module & Fixed Lens for PNM-7000VD

Product Overview

With Hanwha 2MP 6mm Fixed Focal Lens & Sensor Module/ SLA-2M6000D you can customize your PNM-7000VD multidirectional camera. This module integrates a 1/2.8" 2MP CMOS sensor and a 6mm fixed lens, enabling the PNM-7000VD to capture video at up to 1945 x 1097 resolution in a 50.4 x 28.8° field of view. Featuring electrical day/night functionality and 150 dB wide dynamic range, the module is designed to deliver clear images in low-light conditions down to 0.055 lux and to balance exposure in scenes with sharp lighting contrasts.

FEATURES
  • [email protected] (Color, B/W)
  • WDR (150dB)

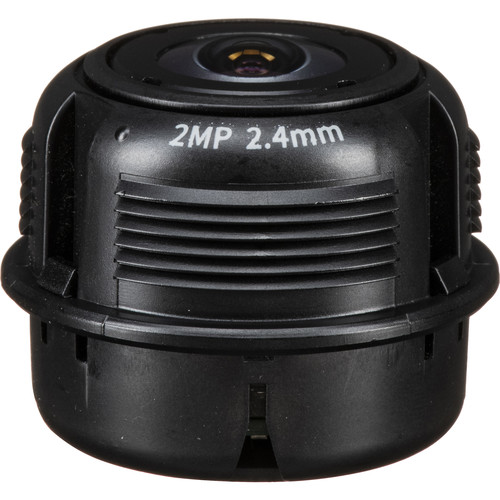

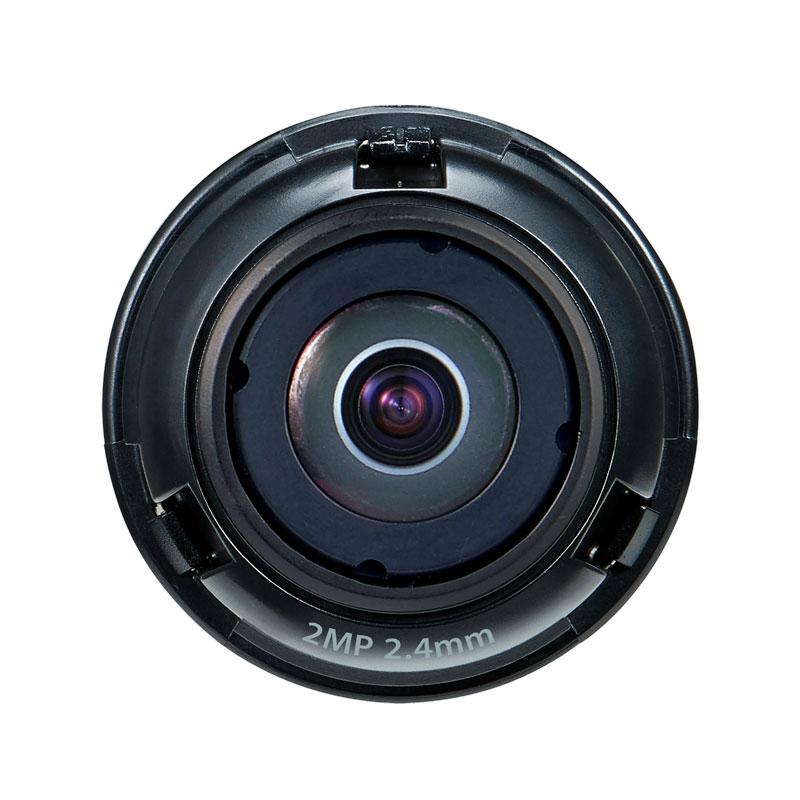

  • 2.4mm fixed lens (SLA-2M2400D)

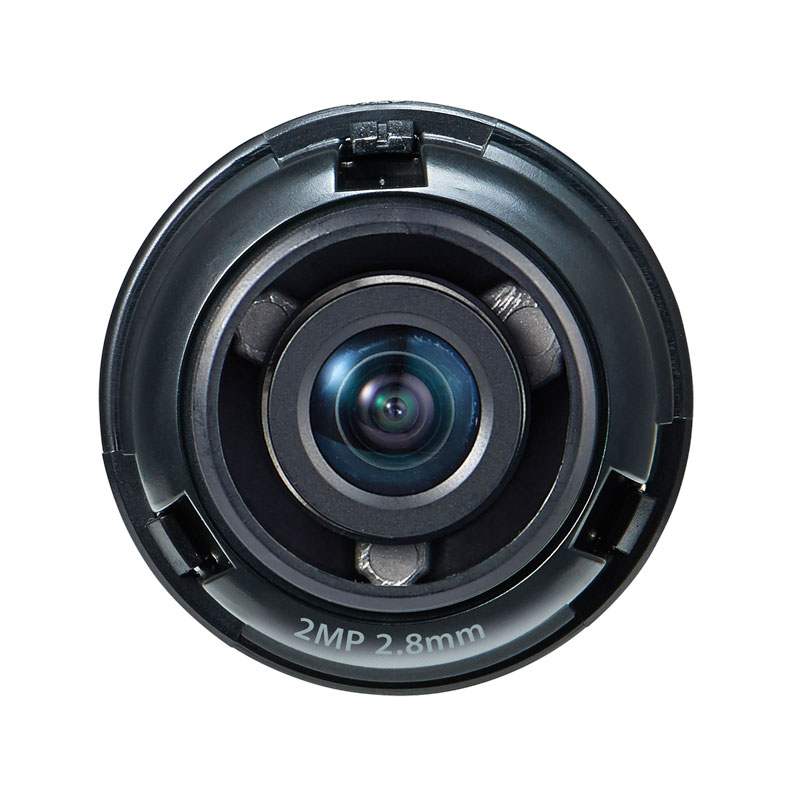

  • 2.8mm fixed lens (SLA-2M2800D)

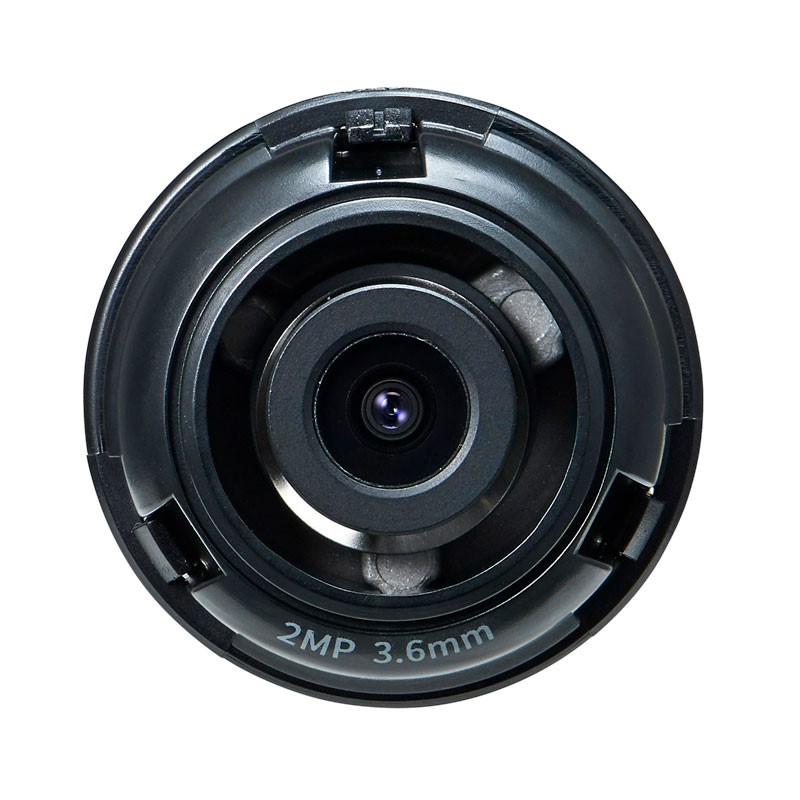

  • 3.6mm fixed lens (SLA-2M3600D)
  • 6.0mm fixed lens (SLA-2M6000D)
  • 1/2.8" 2MP Progressive Scan CMOS Sensor
  • 1945 x 1097 Effective Pixels
  • Electrical Day&Night

Product Specifications

SLA-2M6000DSLA-2M3600DSLA-2M2800DSLA-2M2400D
Video
Sensor1/2.8" 2 MP Progressive Scan CMOS1/2.8" 2 MP Progressive Scan CMOS1/2.8" 2 MP Progressive Scan CMOS1/2.8" 2 MP Progressive Scan CMOS
Total Pixels1945 x 1109 (2.16 MP)1945 x 1109 (2.16 MP)1945 x 1109 (2.16 MP)1945 x 1109 (2.16 MP)
Effective Pixels1945 x 1097 (2.13 MP)1945 x 1097 (2.13 MP)1945 x 1097 (2.13 MP)1945 x 1097 (2.13 MP)
Minimum Illumination Color: 0.055 Lux
B&W: 0.055 Lux		Color: 0.055 Lux
B&W: 0.055 Lux		Color: 0.055 Lux
B&W: 0.055 Lux		Color: 0.055 Lux
B&W: 0.055 Lux
S/N Ratio 50 dB50 dB50 dB50 dB
Wide Dynamic Range150 dB150 dB150 dB150 dB
Day & NightElectricalElectricalElectricalElectrical
Lens
Focal Length 6mm, Fixed3.6mm, Fixed2.8mm, Fixed2.4mm, Fixed
Maximum Aperturef/2.0f/2.0f/2.0f/2.0
Field of View (H x V) 50.4 x 28.8°94.8 x 49.3°107.4 x 62.2°135.4 x 71.2°
Adjustment Mechanism
Horizontal -176 to 176°-176 to 176°-176 to 176°-176 to 176°
Vertical0 to 65°0 to 54°0 to 50°0 to 30°
Rotate-90 to 90°-90 to 90°-90 to 90°-90 to 90°
Physical
Housing MaterialPlasticPlasticPlasticPlastic
Dimensions1.4 x 1.1" / 35.5 x 27.9 mm1.4 x 1.1" / 35.5 x 27.9 mm1.4 x 1.1" / 35.5 x 27.9 mm1.4 x 1.1" / 35.5 x 27.9 mm
Weight0.06 lb / 27 g0.06 lb / 27 g0.06 lb / 27 g0.06 lb / 27 g
