Hanwha SLA-5M3700P
POSMarket SKU: Z15584
This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

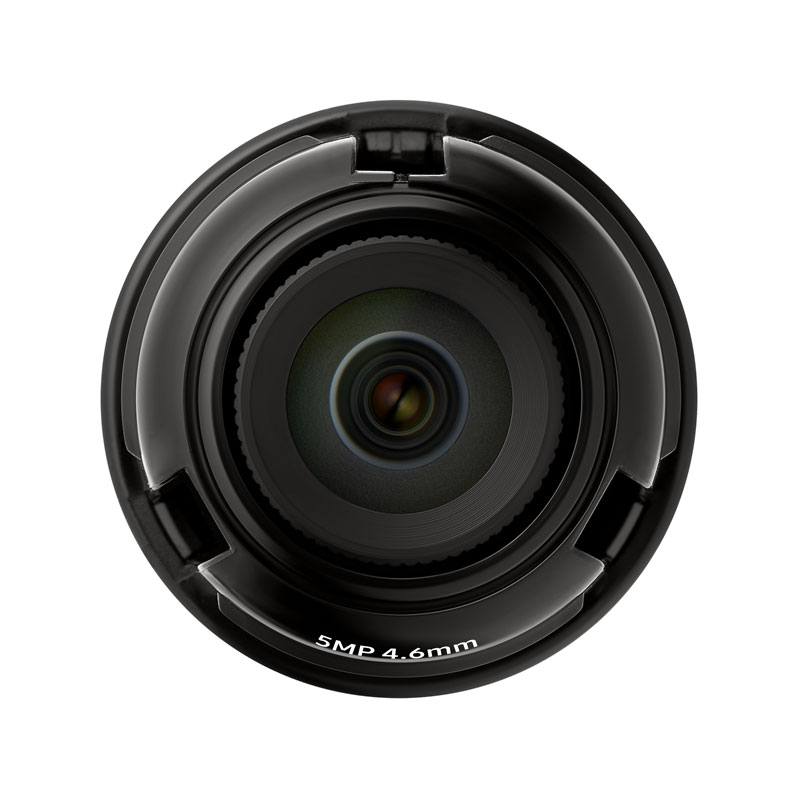

5MP 1/1.8" Fixed Focal Megapixel Lens to suit PNM-9320VQP
Product Overview
FEATURES
- For PNM-9320VQP Camera Body
- 1/1.8" 5MP Progressive Scan CMOS Sensor
- 2616 x 1976 Effective pixels
- 0.16Lux at F1.6 colour, B/W
- 120dB WDR
- Selectable lens options: 3.7 / 4.6 / 7.0mm fixed lens (5MP)
Product Specifications
| SLA-5M3700P | SLA-5M4600P | SLA-5M7000P | |
| Video | |||
| Imaging Device | 1/1.8" 5M CMOS | ||
| Total Pixels | 3096(H) x 2094(V) | ||
| Total Pixels | 2616(H) x 1976(V) | ||
| Scanning System | Progressive Scan | ||
| Min. Illumination | Color : 0.16Lux (F1.6, 1/30sec, 30IRE) B/W : 0.16Lux (F1.6, 1/30sec, 30IRE) | ||
| S / N Ratio | 50dB | ||
| Wide Dynamic Range | 120dB | ||
| Day & Night | Electrical | ||
| Lens | |||
| Focal Length (Zoom Ratio) | 3.7mm | 4.6mm | 7mm |
| Max. Aperture Ratio | F1.6 | ||
| Angular Field of View | H:97.5°, V:71.9°, D:126.2°, | H:77.9°, V:57.9°, D:98.7° | H:50.7°, V:37.8°, D:63.8° |
| Lens Type | Fixed focal | ||
| Mount Type | M12 Lens module with main unit | ||
| Pan/ Tilt/ Rotate | |||
| Pan / Tilt / Rotate Range | -90°~+90°/ +36~+73°/ -180°~+180°- | -90°~+90°/ +21~+85°/ -180°~+180°- | -90°~+90°/ +12~+93°/ -180°~+180° |
| Mechanical | |||
| Color / Material | Black / Plastic | ||
| Dimension (W x H x D) | ø35.5 x 35.9 mm (ø 1.39" x 1.41") | ||
| Weight | 35g (0.08 lb) |
