Hanwha SLA-5M3700Q

from $159.39 (incl. GST)

POSMarket SKU: Z15573

This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

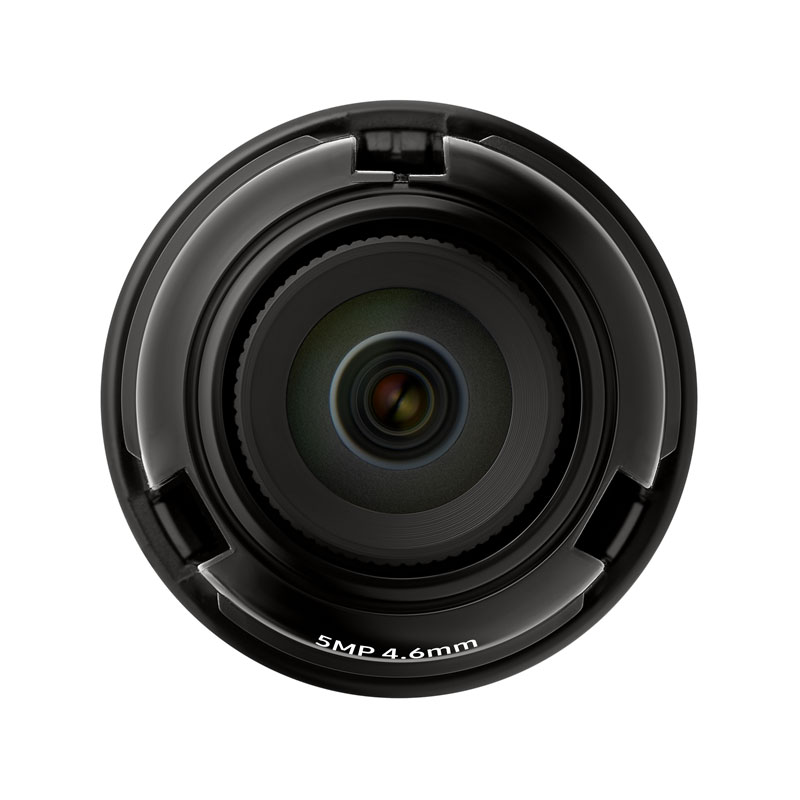

5MP Sensor Module & Fixed Lens for PNM-9000VQ

Product Overview

The PNM-9000VQ multidirectional camera with the WiseNet P Series 5MP Sensor Module & Fixed Lens from Hanwha Techwin, integrates a 1/1.8" 5MP CMOS sensor and from 3.7mm, 4.6mm, 7mm fixed lens, enabling the PNM-9000VQ to capture video at up to 2616 x 1976 resolution in a 97.5 x 71.9°, 77.9°, 57.9° field of view with versions of lenses. Featuring electrical day/night functionality and 120 dB wide dynamic range, the module is designed to deliver clear images in low-light conditions down to 0.055 lux and to balance exposure in scenes with sharp lighting contrasts.

FEATURES
  • For PNM-9000VQ Camera Body
  • 1/1.8" 5MP Progressive Scan CMOS Sensor
  • 2616 x 1976 Effective Pixels
  • Minimum Illumination: 0.16 Lux (SLA-5M4600Q, SLA-5M7000Q)
  • Minimum Illumination: 0.055 Lux (SLA-5M3700Q)
  • 3.7 / 4.6 / 7.0mm fixed lens (5MP)
Need help finding the right part or accessory for your CCTV/ Camera? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998

Product Specifications

SLA-5M3700QSLA-5M4600Q SLA-5M7000Q
Video
Sensor1/1.8" 5 MP Progressive Scan CMOS1/1.8" 5 MP Progressive Scan CMOS1/1.8" 5 MP Progressive Scan CMOS
Total Pixels3096 x 2094)3096 x 20943096 x 2094
Effective Pixels2616 x 19762616 x 19762616 x 1976
Minimum Illumination At f/2.0, 1/30 Sec, 30 IRE:

Color: 0.055 Lux
B&W: 0.055 Lux		At f/2.0, 1/30 Sec, 30 IRE:

Color: 0.16 Lux
B&W: 0.16 Lux		At f/2.0, 1/30 Sec, 30 IRE:

Color: 0.16 Lux
B&W: 0.16 Lux
S/N Ratio 50 dB50 dB50 dB
Wide Dynamic Range120 dB120 dB120 dB
Day & NightElectricalElectricalElectrical
Lens
Focal Length 3.7mm, Fixed4.6mm, Fixed7mm, Fixed
Maximum Aperturef/1.6f/1.6f/1.6
Field of View (H x V) 97.5 x 71.9°77.9 x 57.9°50.7 x 37.8°
Adjustment Mechanism
Horizontal -90 to 90°-90 to 90°-90 to 90°
Vertical59 to 66°50 to 80°40 to 89°
Rotate-180 to 180°-180 to 180°-180 to 180°
Physical
Housing MaterialPlasticPlasticPlastic
Dimensions1.39 x 1.41" / 35.5 x 35.9 mm1.39 x 1.41" / 35.5 x 35.9 mm1.39 x 1.41" / 35.5 x 35.9 mm
Weight0.08 lb / 35 g0.08 lb / 35 g0.08 lb / 35 g
