Hikvision DS-2780ZJ-X
POSMarket SKU: Z14489
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

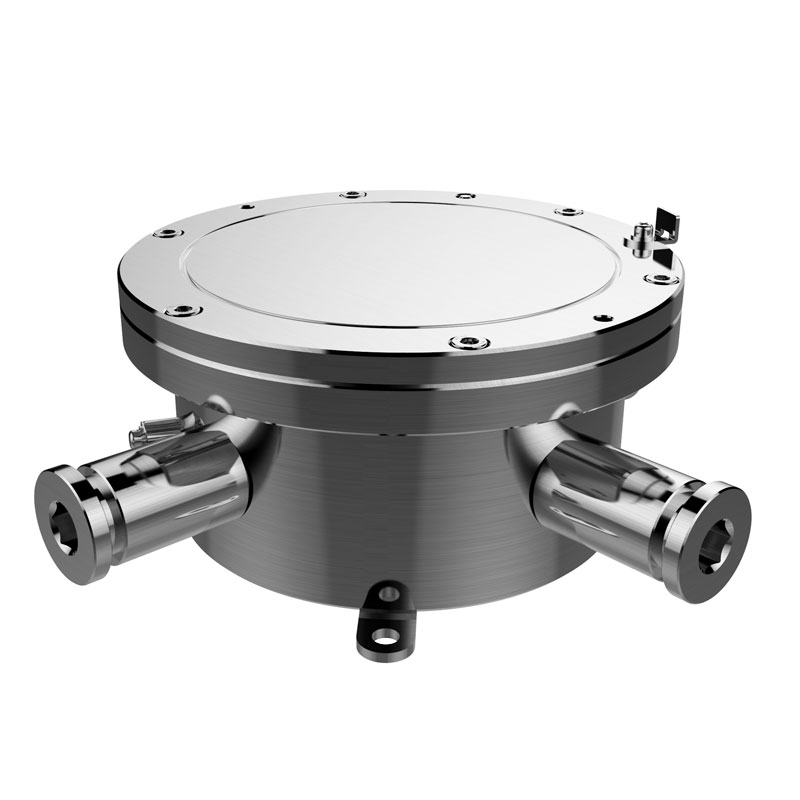

316L/304L Explosion Proof Terminal Box
Product Overview
Features
- Stainless steel 304 and stainless steel 316L (/316L) optional
- Four cable outlets
- ATEX and IECEx certified explosion-proof performance
- Ingress protection, IP68
Call 1300 737 998
Product Specifications
| Model | DS-2780ZJ-X/ 304L, DS-2780ZJ-X/ 316L |
| Parameters | Explosion-Proof Terminal Box |
| Material | DS-2780ZJ-X: stainless steel 304 DS-2780ZJ-X/316L: stainless steel 316L |
| Dimension | 272 mm× 272 mm × 96.8 mm (10.7" × 10.7" × 3.8") |
| Weight | Approx. 6.4 kg (14.1 lb.) |
| Cable Outlet | 4 cable outlets, M25 x 1.5 |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing) |
| Hazardous Area | Zone 1, Zone 2, Zone 21, and Zone 22 |
| Ingress protection | IP68 |
| Interface | 110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported) |
| Power Adapter Preinstalled | No |
| Wire Gauge | No. 22 to No. 12 AWG, max. 3.294 mm2 |
| Applicable Device | Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply |
