Hikvision DS-3E0524TF
POSMarket SKU: Z14500

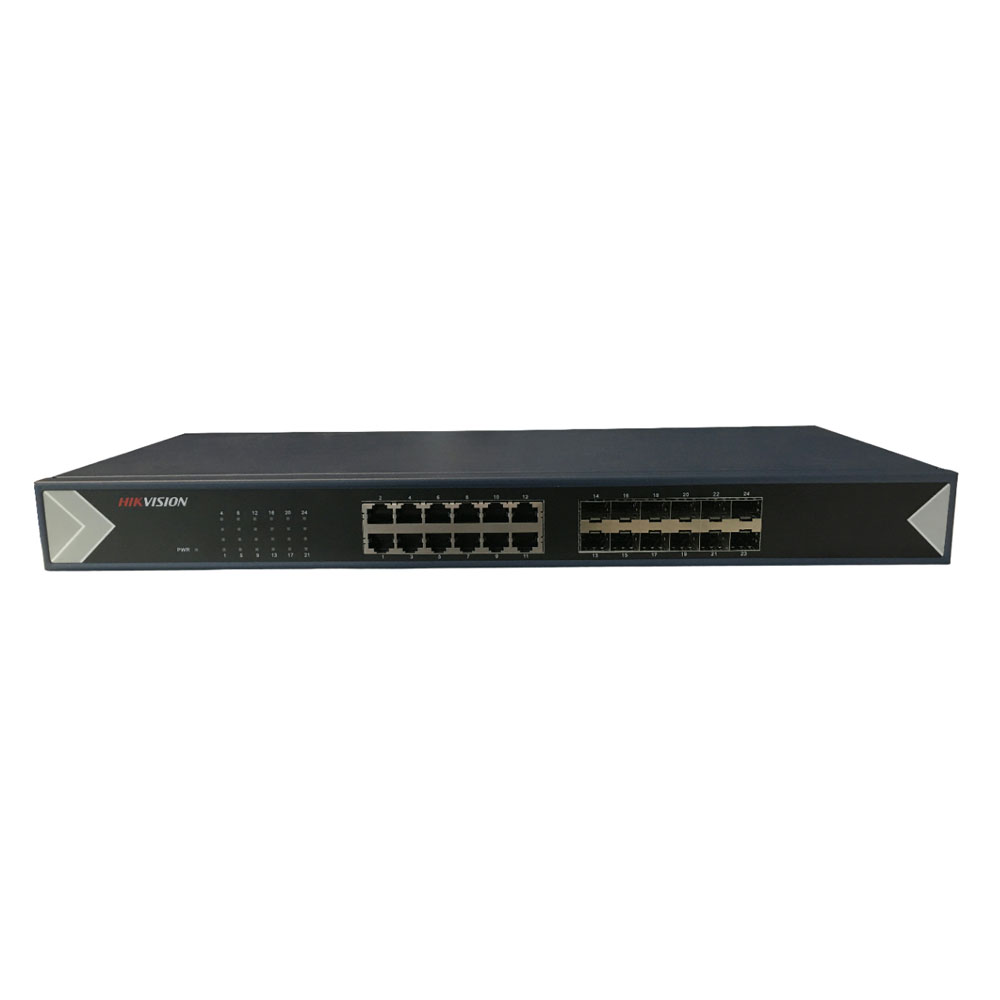

DS-3E0524TF: Hikvision 24 Port Unmanaged Gigabit Switch, 12 Port ethernet, 12 Port Fibre
Hikvision 24 Port Unmanaged Gigabit Switch
Product Overview
Features
- Gigabit network data-exchange
- 12 Gigabit Ethernet electrical ports and 12 Gigabit Ethernet
- SFP fiber optical port
- 10/100/1000M BaseT (X)(RJ45 ports)
- IEEE802.3, IEEE802.3u and IEEE802.3x network standards available
- Store-and-forward switch
- Delay of data-exchange less than 5us
- Wide temperature Range: -5 ~ 50 ËšC
- Solid metal chassis of high strength
- 19 Inches 1U standards rack installation
Product Specifications
| Network Parameters | |
| Port Number | 12 x Gigabit RJ45 ports, and 12 x Gigabit fiber optical ports |
| Port Type | Electrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive,Fiber optical port: SFP packaging Standard; IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Forwarding Mode | Store-and-forward switching |
| MAC Address Table | 16 K |
| Internal Cache | 12 Mbit |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| Software Function | |
| Priority Queue | 8 |
| General | |
| Shell | Metal material |
| Net Weight | 2.600 kg (5.73 lb) |
| Gross Weight | 3.302 kg (7.28 lb) |
| Dimension (W x H x D) | 440 × 44.5 × 186.5 mm (17.3 × 1.8 × 7.3 inch) |
| Operating Temperature | -5° C to +50 ° C (+23 ° F to +122 ° F) |
| Storage Temperature | -40 ° C to +85 ° C (-40 ° F to +185 ° F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Storage Humidity | 5% to 95% (no condensation) |
| Power Supply | 220 VAC |
| Power Consumption | ≤30 W |
