Planet POE-172

$135.14 (incl. GST)

POSMarket SKU: Z15499

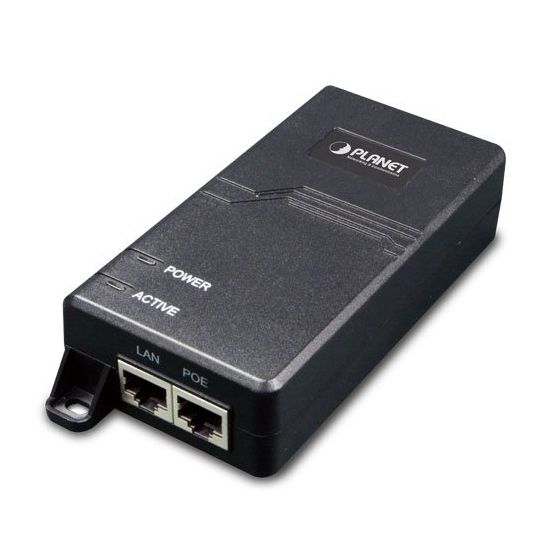

PLA-POE-172: Planet Single Port Ultra PoE Injector, 10/100/1000Mbps, 60W, Internal PWR

Single Port Ultra PoE Injector

Product Overview

The Planet PLA-POE-172 Ultra Power over Ethernet Injector provides a maximum of 60-watt power and a high-speed Ethernet data connection anywhere in your network infrastructure. It is designed specifically to meet the demand for growing higher power required network equipment such as PTZ cameras.

Features
  • 2 x RJ45 interfaces
  • 1-port 10/100/1000Mbps data + power output
  • 1-port 10/100/1000Mbps data input
  • Up to 60 watts of power on 4-pair UTP
  • 240 VAC input power socket

Product Specifications

Manufacturer Planet
Brand Planet
Packaged Quantity 1
Type Accessories
Accessory TypeInjector
InterfaceLAN: 1 x RJ45 STP, “Data” Input Port
PoE: 1 x RJ45 STP, “Data + Power” Output Port
AC Connector: 1 x AC input power socket, IEC-320 C6
Network CableUltra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
LED IndicatorSystem: Power x 1 (green)
PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)115 x 62.5 x 31 mm
Weight235g
Unit Output VoltageDC 56V, 1.08A
Power Requirements100-240V AC @50/60Hz, 1.5A max.
Power Consumption60 watts max.
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Operating Humidity5 ~ 95%, relative humidity, non-condensing
Storage Humidity5 ~ 95%, relative humidity, non-condensing
Loading configurations…
Loading accessories…
Loading downloads…

Product Videos

No videos found for this product.

Please contact our team using the Ask an Expert form or call us on 1300 737 998.

Contact our Team

Warehouse Locations

Map of POSMarket warehouse locations across Australia

NSW

  • Huntingwood 2148
  • Rosehill 2142
  • Rydalmere 2116

QLD

  • Acacia Ridge 4110
  • Tingalpa 4173

VIC

  • Box Hill 3128

WA

  • Burswood 6100

Related Products

Hikvision DS-HIPOE-INJ Hikvision DS-HIPOE-INJ

Accessories › Injectors

Axis T8134 Axis T8134

Accessories › Injectors

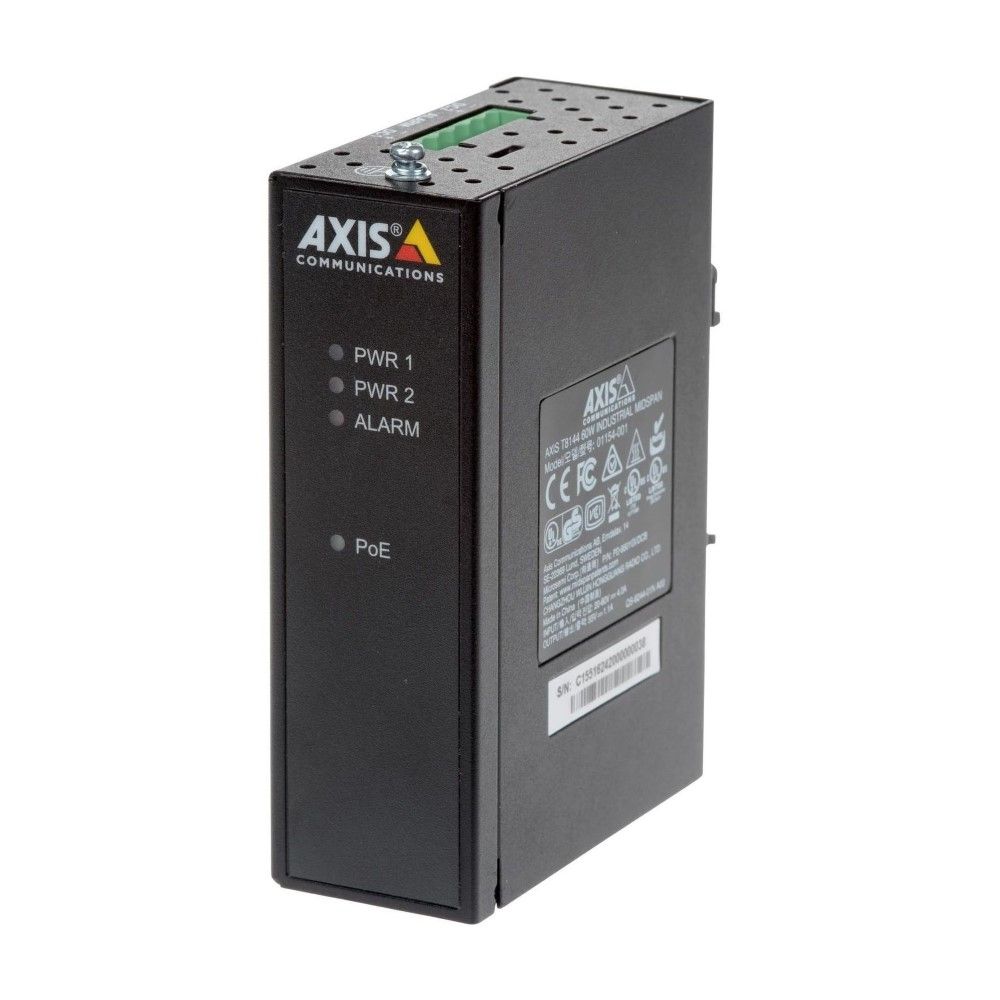

Axis T8144 Axis T8144
