SEE Security LPAR480

$CALL

POSMarket SKU: Z15761

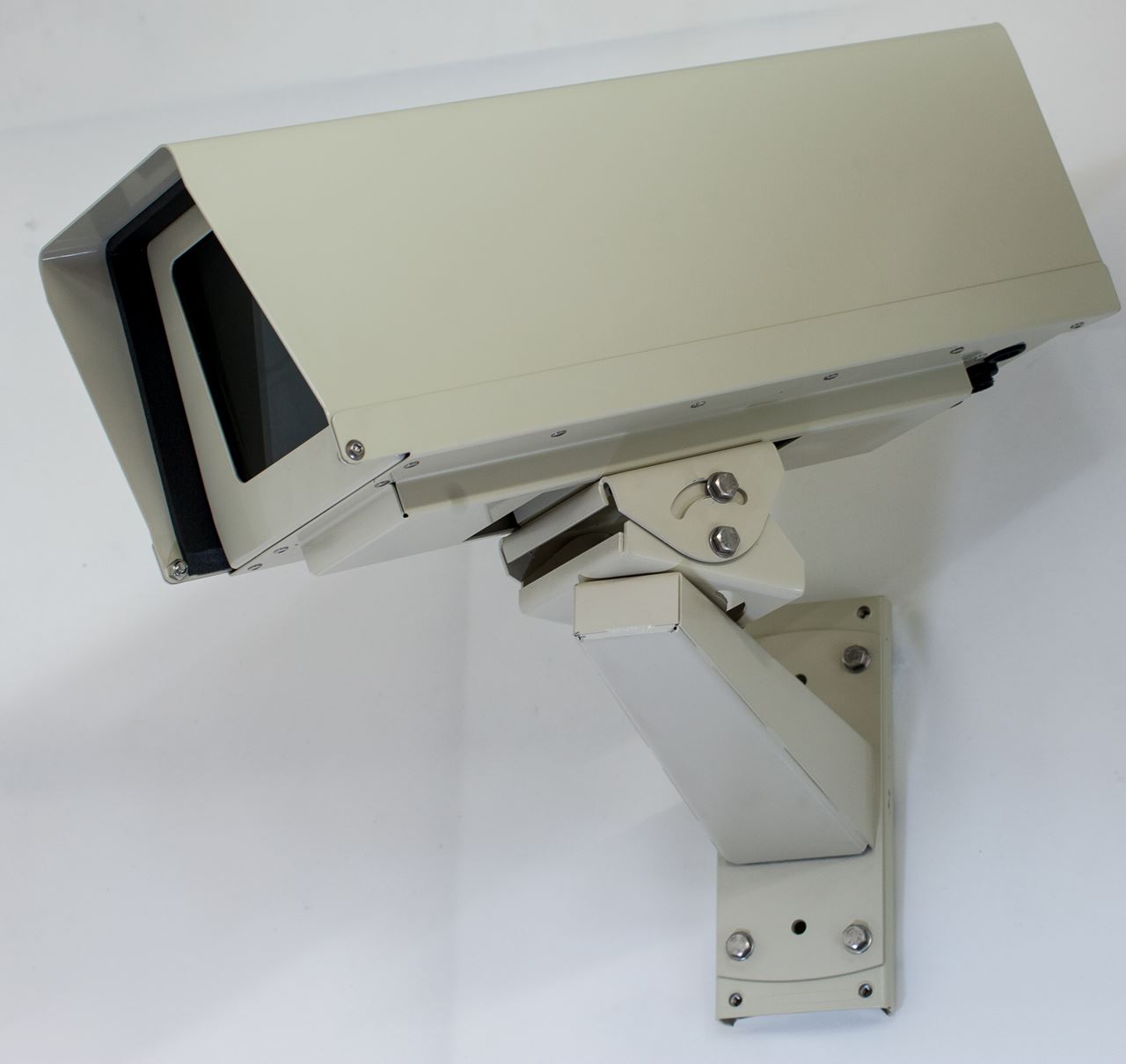

LPAR480: IP66 Indoor/Outdoor Environmental Housing, Zincanneal Steel, Beige

IP66 Outdoor camera housing for general purpose applications, and an environmental housing.

Product Overview

Available in a powder coated zinc anneal for general purpose use. The LPAR480 housing is designed to accommodate 1/4" to 1/3" CCD camera fitted with fixed and zoom lenses. Including a 100mm clear space behind the camera for connections when the maximum camera lens combination is used, this housing can be mounted off poles, building walls or in factories. It is also suitable for use in mines.

Options
The HDWMB3 and HDMPT2 wall bracket and manual pan tilt are the only standard mounting hardware available for the housing. These mounting brackets and pan tilts available as optional extras and are not included in the price of the housing.

Applications
Mounted off poles, building walls or in factories. Also ideal for use in mines.

Features
  • IP66 Outdoor/ indoor housing
  • Powder coater zinc anneal in moss vale sands
  • Max Camera Lens length 371mm
  • Suit all brands of photography camera applications
  • Can be mounted on poles, buildings walls etc. Also, can be used for high vandal areas and commonly popular with time lapse photography.
Need help finding the right part or accessory for your CCTV/ Camera? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998

Product Specifications

LPAR480
Construction1.6mm zinc anneal
FinishMossvale sands (light beige) polyester powder coat
Lens6.00mm arris edged glass
Cable Entry2 x 20mm PVC cable compression glands and 2 blanking grommets
Access2xSouthco stainless steel rotary clasps at the rear of lid
ElectricalOptional heater thermostat 24 VAC 50Hz 11watts. Fan 24VAC 50Hz 3.2 watts
Maximum Camera Size371 mm (L) x 178mm (W) x 140 mm (H). 170 mm height available without the camera sled.
Weight8.9kg
Loading configurations…
Loading accessories…
Loading downloads…

Product Videos

No videos found for this product.

Please contact our team using the Ask an Expert form or call us on 1300 737 998.
