Tensor E10180R

from $28.88 (incl. GST)

POSMarket SKU: Z15676

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

BNC Male Video Balun - Slim

Product Overview

In many security applications, video signal is carried over 75 ohm coaxial cabling and there is a need to convert to balanced transmission using lower cost 100 ohm twisted pair cables? The video Balun will enable video signal to be interfaced using coaxial on one side to Cat 5 twisted pair cabling on the other using modular RJ45 connectors to achieve quick and reliable connections.

Features
  • 1 video path from BNC Male into 1 RJ45 jack unshielded
  • Slim Case allows installation in tight spots
  • Bi-directional signal conversion
  • Passive device (no power required)
  • Impedance 75 to 100 Ohm
  • Compatible with E10170/E10180S/E10180T/E10185R/E10185S/E10185PL
  • Suitable for CAT5E cable
  • 57.9 x 12.5 x 17mm

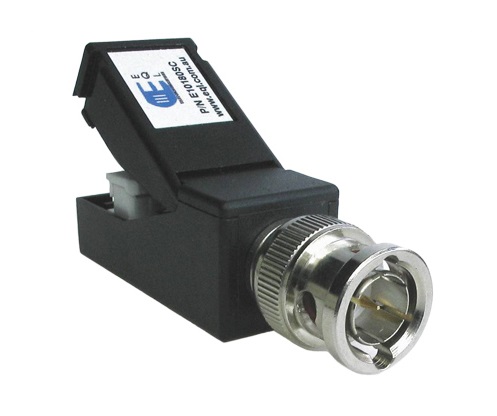

  • *E10180C:
  • BNC Male to Insulation Displacement Connector (IDC)
  • Quick and reliable connections
  • Passive device (no power required)
  • Compatible with E10180TC/E10180V/E10185C/E10185SC/E10185PC
  • Suitable for CAT5E Cable
  • 62.9 x 12.5 x 17mm
Need help finding the right part or accessory for your CCTV/ Camera? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998

Product Specifications

BNC Male Video Balun - Slim
Bandwidth DC to 8MHz
Insertion Loss < 2 dB to 8MHz
Impedance 75 ohm BNC, 100 ohm RJ45
Maximum Signal Voltage 1.1 Vp-p
Return Loss > 15 dB to 8 MHz
Common Mode Rejection > 40 dB @ 8 MHz
RJ45 Contacts Gold, 50 micro inch
Temperature Range 0 to 55 oC operating, -22 to 80oC Storage
95% Relative Humidity
Casing Fire Retardant Plastic ABS UL 94V-0
Maximum Distance Color: Up to 400 m Cat 5e
B&W Up to 600 m Cat 5e
Grounding At one end Recommended
Compatible with E10180S / E10180T / E10185R / E10185S / E10185PL
