Tensor E10180T
POSMarket SKU: Z15729
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
BNC Male Video Balun
Product Overview
The E10180T video balun will enable video signal carried on Cat 5 cable to be converted to BNC coaxial interface for direct connection to the DVR. The mini coaxial tail of the BNC Male will allow ease of installation at the DVR end where space is often limited.
Features
- 1 video path from BNC Male with 100 mm mini coaxial cable to RJ45 unshielded Jack.
- Bi-directional signal conversion.
- High Reliability and Durability
- Housed in a fire retardant wall mountable Case
- Impedance 75 to 100 Ohm
- High quality and performance
- Passive device (no power supply required)
- Stable over working temperature between 0 °C to +55 °C

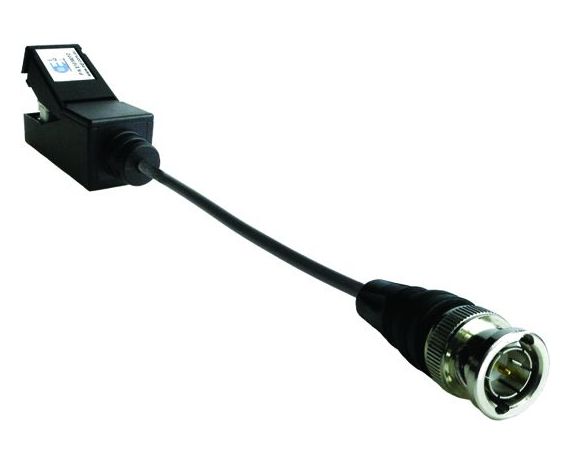

- E10180TC:
- BNC Male to Insulation Displacement Connector (IDC)
- With 100mm mini coaxial tail for easy connection in tight spots
- Passive device (no power required)
- Compatible with E10180C/E10180V/E10185C/E10180SC/E10185PC
- Suitable for CAT5E Cable
Call 1300 737 998
Product Specifications
| E10180T | |
| Bandwidth: | DC to 8 MHz |
| Insertion Loss: | < 2 dB to 8 MHz |
| Impedance: | 75 ohm BNC, 100 Ohm RJ45 |
| Maximum Signal Voltage: | 1.1 Vp-p |
| Return Loss: | > 15 dB to 8 MHz |
| Common Mode Rejection: | > 40 dB @ 8 MHz |
| RJ45 Contacts | Gold, 50 micro inch |
| Temperature Range: | 0 to 55°C operating, -22 to 80°C Storage, 95% Relative Humidity |
| Casing: | Fire Retardant Plastic ABS UL 94V-0 |
| Maximum Distance: | Colour: Up to 400 m Cat 5e B&W: Up to 600 m Cat 5e |
| Grounding: | At one end Recommended |
| Compatible with: | E10180S / E10180R / E10185R / E10185S / E10185PL |
| E10180TC | |
| Bandwidth | DC to 8MHz |
| Insertion Loss | < 2 dB to 8MHz |
| Impedance | 75 ohm BNC, 100 ohm RJ45 |
| Maximum Signal Voltage | 1.1 Vp-p |
| Return Loss | > 15 dB to 8 MHz |
| Common Mode Rejection | > 40 dB @ 8 MHz |
| RJ45 Contacts | Gold, 50 micro inch |
| Temperature Range | 0 to 55 oC operating, -22 to 80oC Storage 95% Relative Humidity |
| Casing | Fire Retardant Plastic ABS UL 94V-0 |
| Maximum Distance | Color: Up to 400 m Cat 5e |
| B&W | Up to 600 m Cat 5e |
| RJ45 Connections | E10180R, E10180S, E10180T 4/+ 5/- E10184S 7/+ 8/- |
