Tensor T0111-002
POSMarket SKU: Z15750

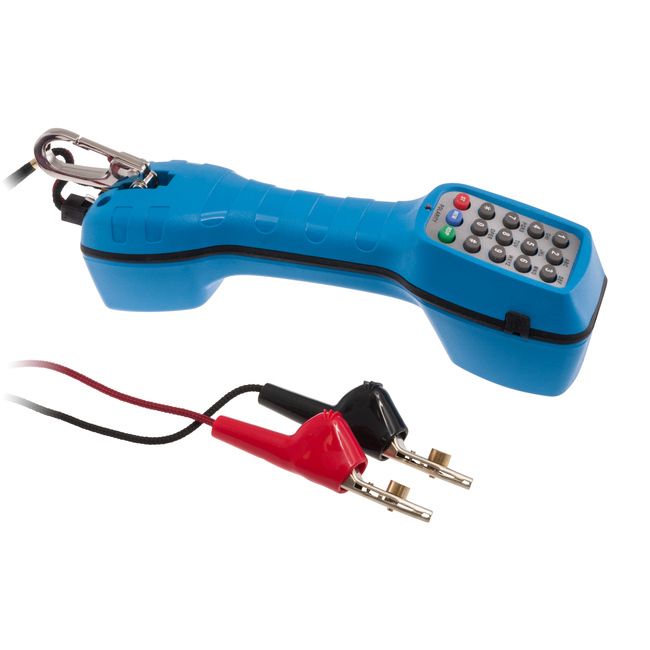

T0111-002: Linesman Test Phone
LinesmanTesting phone for Technician, Tech Butt test phone
Product Overview
Belt clip and durable cord also included.
Features
- 2-way hands-free speaker
- Adjustable volume switch
- Line polarity check and monitor/talk switch.
- Tone or pulse dialing with last number redial
- 12 memories.
- Robust ABS housing with belt clip and durable coiled cord.
Call 1300 737 998
Product Specifications
| Loop Limit | 2KΩ max at 48V DC (nominal 20mA minimum loop current) | |
| DC Resistance | 300Ω typical (Talk mode) | |
| Monitor Impedance | 39KΩ nominal at 1KHz | |
| Rotary Dial Output |
Pulse Rate
Percent Break Interdigital Pause Leakage During Break | 10pps 0.8pps
61% 2% 1000mS typical >50K |
| DTMF Output | Tone Frequency Error
Tone level High/Low Tone Difference | 1.2% maximum
+8 2dBm combined (typical) 4dB maximum |
| Memory Dialing | Memory Capacity
Digit Capacity PBX Pause |
12 memories plus LNR
16 digits per memory 4 seconds |
| Monitor Amplifier | Transistor | |
| Power Source | 9V battery provides 25 hours continuous use (typical) | |
| Speaker levels | Low, Medium, High | |
| Auto Power Shut-off | After 5 minutes of no audio signal | |
| Dimensions | 26.0cm x 7.0cm x 8.9cm | |
| Weight | 560g | |
| Environmental | Temperature Range
Altitude Relative Humidity |
Operating +50°C max; Storage -40°C to +66°C
To 3,000 Metres 5% to 95% |
Product Videos
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
Contact our Team
Warehouse Locations
NSW
- Huntingwood 2148
- Rosehill 2142
- Rydalmere 2116
QLD
- Acacia Ridge 4110
- Tingalpa 4173
VIC
- Box Hill 3128
WA
- Burswood 6100
Related Products

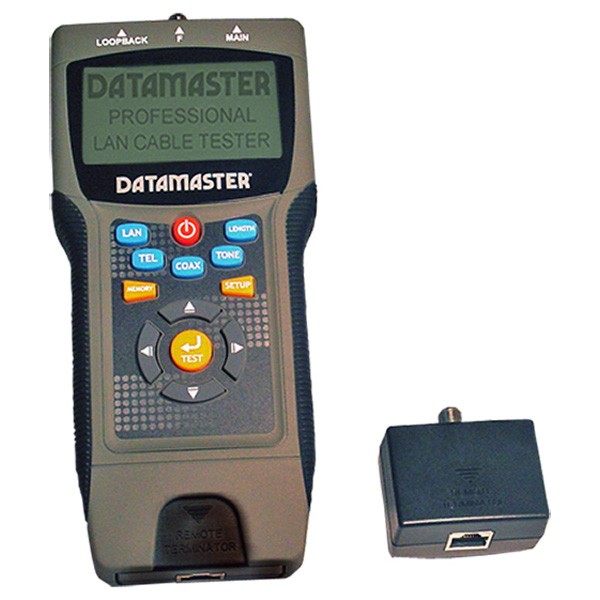

Tensor T0046
Accessories › Tester, Tools

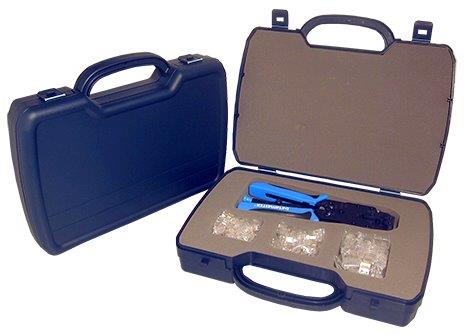

Generic T0019KIT
Accessories › Tester, Tools

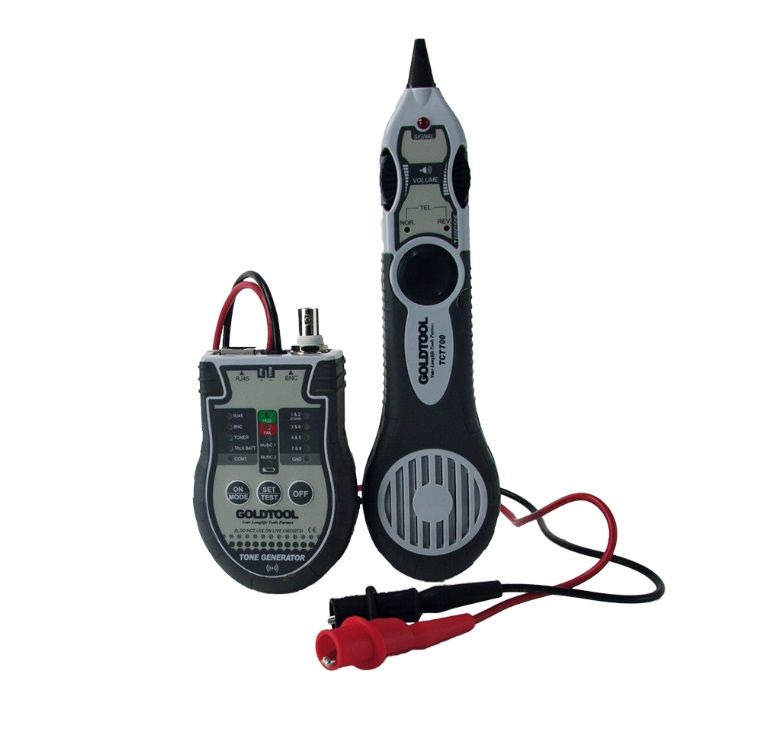

Generic T0116
