Axis F1004

from $200.75 (incl. GST)

POSMarket SKU: Z14918

This model is available in 3 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Axis' Pinhole / Bullet / Small sensor unit. For extremely discreet surveillance in a small size and price for discreet surveillance and bullet-style design for easy installation

Product Overview

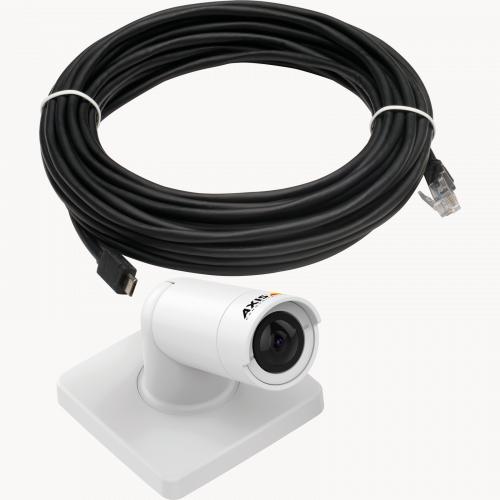

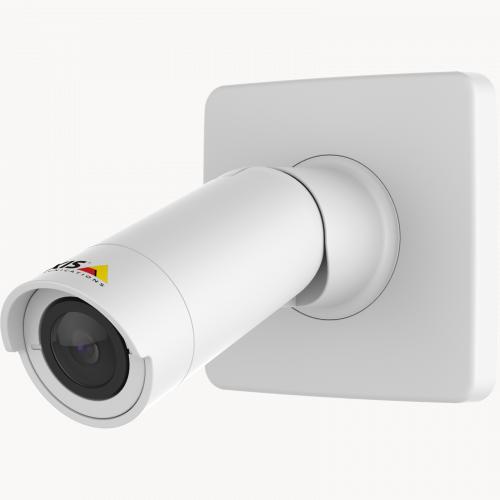

The Axis F1004 Bullet Sensor Unit has a highly compact bullet-style design for easy and discreet installation on indoor ceilings and walls. It can rotate and tilt to the desired viewing direction. AXIS F1004 Bullet comprises a fixed lens and an image sensor. It offers a 102° horizontal field of view, a 720p video resolution, and good low-light performance. It has a detachable 8-m (26 ft) cable for connection to an AXIS F Main Unit.

FEATURES
  • Easy and discreet installation
  • Rotates and tilts to the desired viewing direction
  • 102°horizontal field of view
  • HDTV 720p resolution

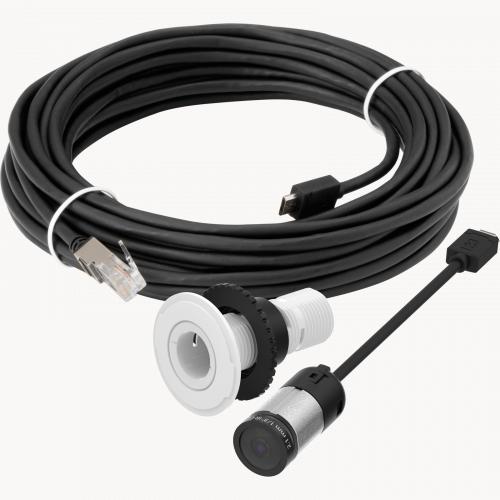

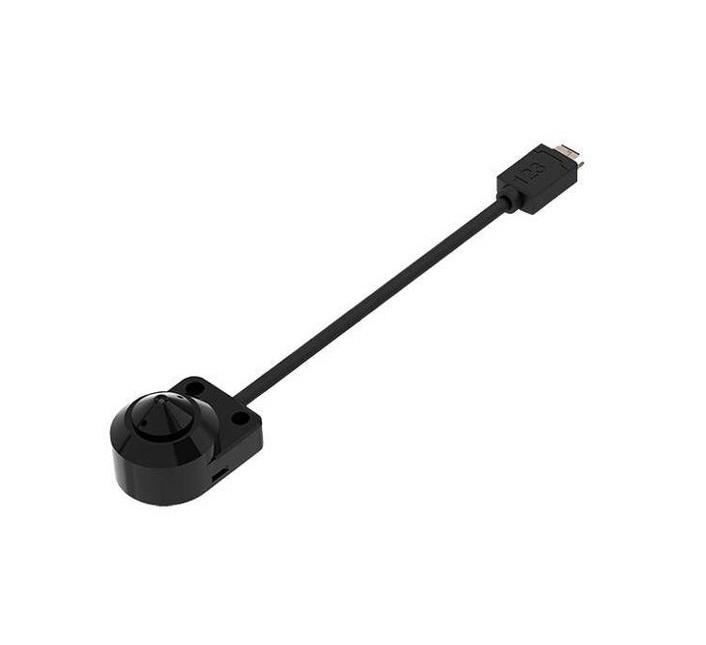

Whilst the Axis F1004 Pinhole Sensor Unit has a pinhole lens for extremely discreet indoor video surveillance. It is ideal for use in retail stores, ATMs, and ticket and vending machines. It can be mounted in tight places, and behind a thin metal, plastic or glass panel with the included mounting bracket. AXIS F1004 Pinhole offers a 57º horizontal field of view, a 720p video resolution and good low-light performance. It has a detachable 8-m (26 ft) cable for connection to an AXIS F Main Unit.

FEATURES
  • Pinhole lens for extremely discreet surveillance
  • 57° horizontal field of view
  • HDTV 720p resolution
  • Detachable cable for easy and flexible installation

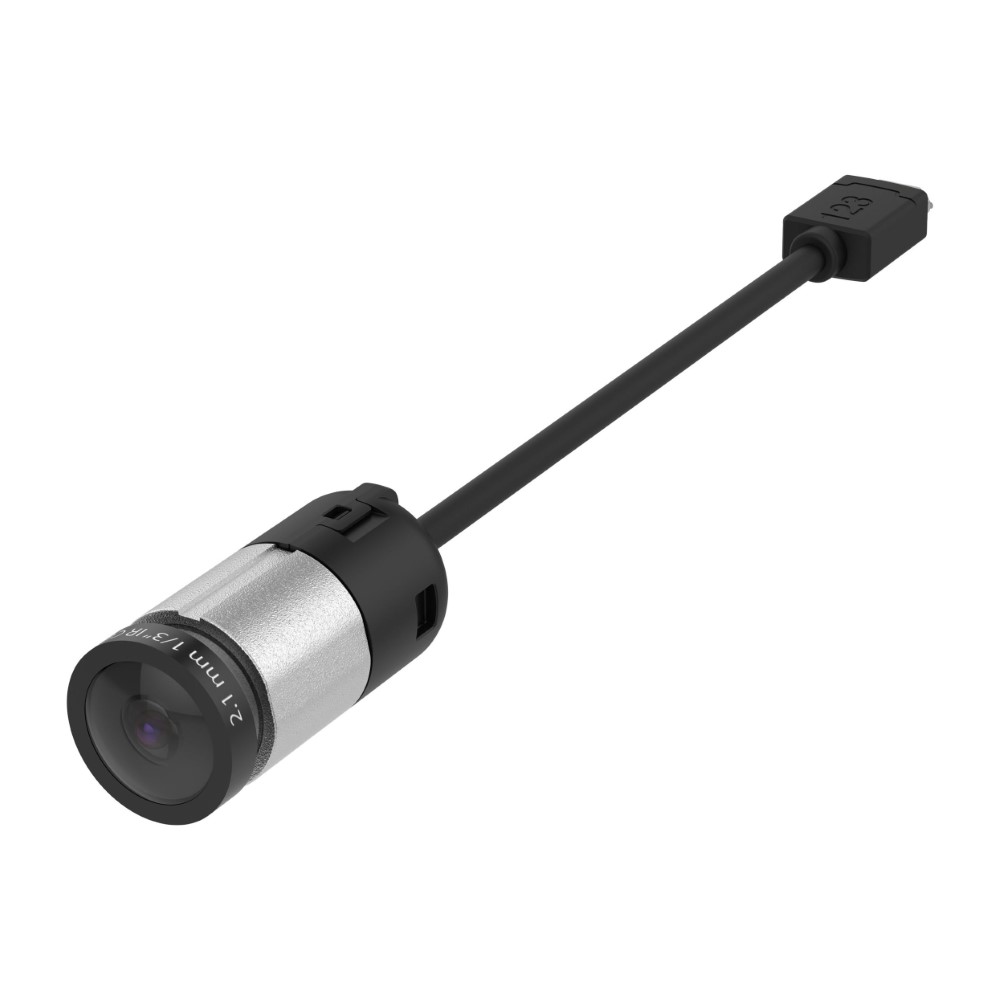

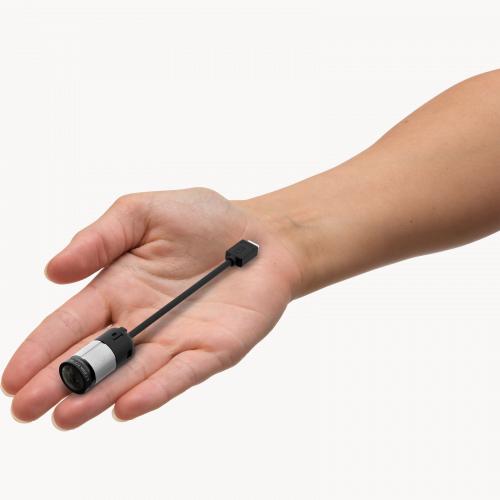

And the F1004 Sensor Unit is small in size and price. For use with an AXIS F Main Unit, AXIS F1004 offers a lower cost, highly discreet sensor unit for indoor surveillance applications. AXIS F1004, which comprises a fixed lens and image sensor, provides a 720p resolution and a 102º horizontal field of view. AXIS F1004 has a detachable 8-m (26 ft.) cable for connecting to a main unit. A flush ceiling/wall mount kit is included. Optional accessories include surface and recessed mounts that enable the sensor unit to be tilted, and a 15-m (49 ft.) cable for connecting AXIS F1004 to a main unit.

FEATURES
  • Small size and price
  • 102° horizontal field of view
  • HDTV 720p
  • Detachable cable for easy and flexible installation

Product Specifications

Model Axis F1004 Bullet Sensor Unit #0935-001
Image Sensor 1/4" (effective) progressive scan RGB CMOS sensor
Lens 2.1mm fixed
Aperture f/2.2
Field of View Horizontal: 102°
Vertical: 56°
Resolution 1280 x 720
Frame Rate 25/30 fps (50/60 Hz)
Minimum Illumination Color: 0.4 lux
Shutter Speed 1/6 to 1/24500 s
Adjustments Pan: +/- 180°
Tilt: 0-90°
Rotation: +/- 90°
Wide Dynamic Range Yes, WDR
Casing Material Plastic
Operating Temperature -4 to 122°F (-20 to 50°C)
Operating Humidity 10 to 85% RH (non-condensing)
Storage Temperature -40 to 149°F (-40 to 65°C)
Dimensions 2.38 x 2.38 x 3.5" (60 x 60 x 89 mm)
Weight 2 oz (55 g)
Model F1004 Sensor Unit #0765-001
Image Sensor 1/4" CMOS effective progressive scan, RGB
Resolution 720p
Focal Length 2.1mm fixed
Aperture f/2.0
Angle of View Horizontal: 102°
Vertical: 56°
Minimum Illumination 0.4 lux
Shutter Speed 1/24500 to 1/6 seconds
Required Accessories Axis F Series Main Unit
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 0.63 x 1.48" / 1.60 x 3.75 cm
Weight 0.2 lb / 96.0 kg
Model Axis F1004 Pinhole Sensor Unit #01003-001
Image Sensor 1/4" progressive scan RGB CMOS sensor
Resolution 1280 x 720 at 25/30 fps (50/60 Hz)
Lens 3.7mm
Field of View Horizontal: 57° Vertical: 31°
Minimum Illumination 0.5 lux
Wide Dynamic Range WDR
Shutter Speed 1/24,500 to 1/6 sec
Casing Aluminum
Operating Temperature -4 to 122°F (-20 to 50°C)
Operating Humidity 10 to 85%, non-condensing
Storage Temperature -40 to 149°F) (-40 to 65°C)
Dimensions Sensor Unit: 1.06 x 0.8 x .7" (27 x 20 x 18 mm); WeightSensor Unit: 0.5 oz (14 g)
Cable: 4.5 oz (128 g)
