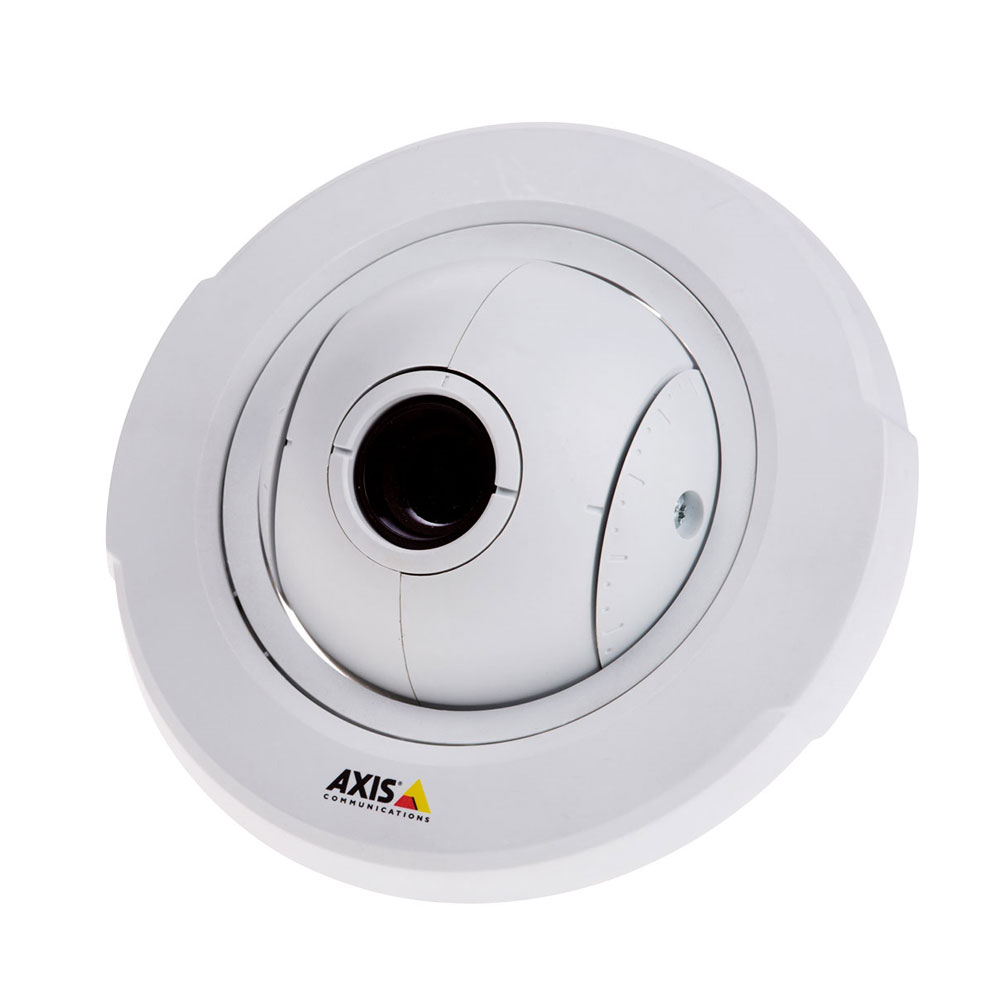

Axis FA4090-E
POSMarket SKU: Z14878

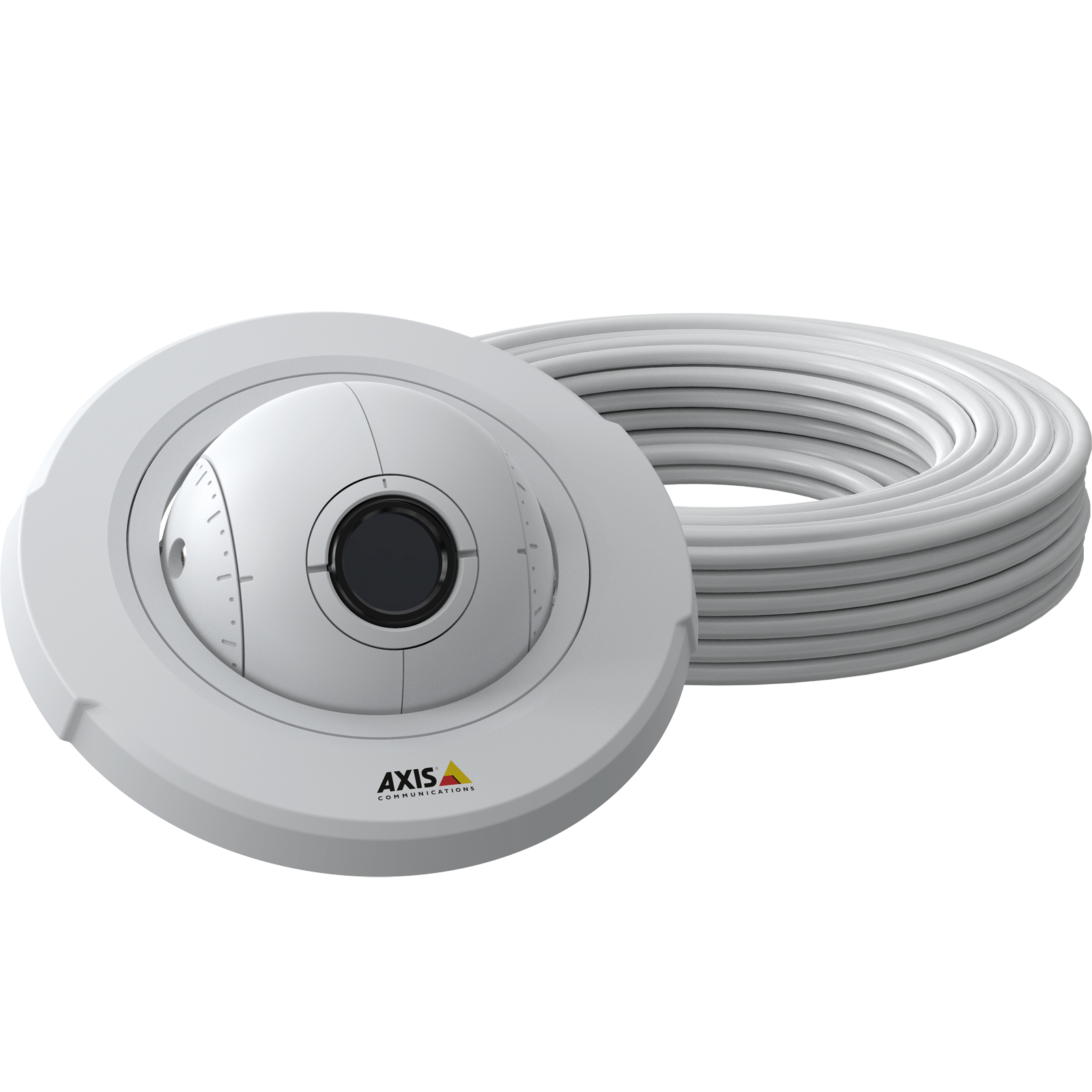

01729-001: FA4090-E Thermal Sensor Unit, 12m Cable, 4mm, 8.3 FPS, IP67, Req. FA54 Main Unit
Axis' Outdoor-ready thermal sensor unit
Product Overview

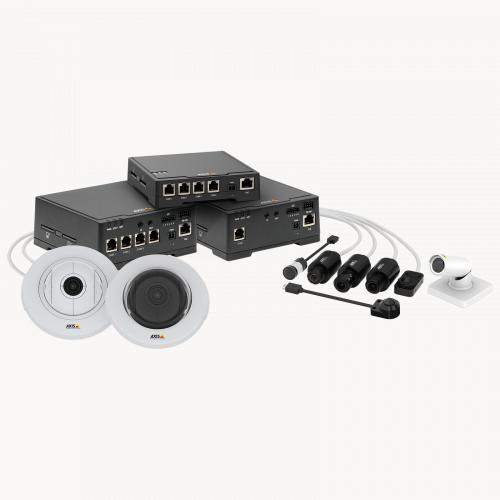

AXIS FA 4090-E Thermal Sensor Unit can be used in a single, or multi-channel setup to create a flexible, tailored approach to surveillance depending on your needs – indoors or out. Using AXIS FA-Series, you can use up to four sensor units, together with AXIS FA54 Main Unit. It also allows you to mix, for instance, thermal cameras with visual cameras in one stream. The sensor unit can be used for intruder detection and allows you to place a visual sensor unit in the same area to further identify whether or not there is a threat. 
Furthermore, you can build a flexible perimeter protection solution using analytics, such as AXIS Guard suite together with a modular solution with four thermal cameras. This could be useful for outdoor environments, such as at construction sites to protect containers with valuable materials. Modular thermal cameras helps keep the area safe in a cost-efficient way while reducing the number of false alarms.
FEATURES
- Reliable and budget-friendly detection
- Thermal technology for low false alarm
- Functional and highly discreet design
- Outdoor ready sensor unit
- For use with AXIS FA54 main unit
Product Specifications
| Camera | |
| Sensor | Uncooled Microbolometer |
| Resolution | 208 x 156 |
| Pixel Size | 12 µm |
| Spectral Range | 8 to 14 µm |
| Lens Type | Athermalized |
| Focal Length | 4mm |
| Aperture | f/1.2 |
| Field of View (H x V) | 35.4 x 28.0° |
| Near Focus | 3.3' / 1 m |
| Sensitivity | NETD <100mK |
| Frame Rate | 8.3 fps |
| Detection Range | 1.5 Pixels on Target Human: 182 yd / 166 m Vehicle: 559 yd / 511 m |
| Recognition Range | 6 Pixels on Target Human: 45 yd / 41 m Vehicle: 139 yd / 127 m |
| Identification Range | 12 Pixels on Target Human: 22 yd / 20 m Vehicle: 69 yd / 63 m |
| General | |
| Connectors | RJ12 for Connection to FA54 Main Unit |
| Operating Temperature | -22 to 131°F / 30 to 55°C Intermittent Maximum: 140°F / 60°C |
| Startup Temperature | Above -22°F / -30 °C |
| Operating Humidity | 10 to 100% RH, Condensing |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| IP Rating | IP67 |
| Casing | Aluminum |
| Cable Length | 39' / 12 m |
| Dimensions | 4.7 x 2.8" / 120 x 72 mm |
| Weight | 0.8 lb / 370 g |
