Axis M1045-LW
POSMarket SKU: Z14895
0812-006: M1045-LW Wireless Cube Camera, H.264, 10m IR, WiFi, Zipstream, 110deg Fixed Lens

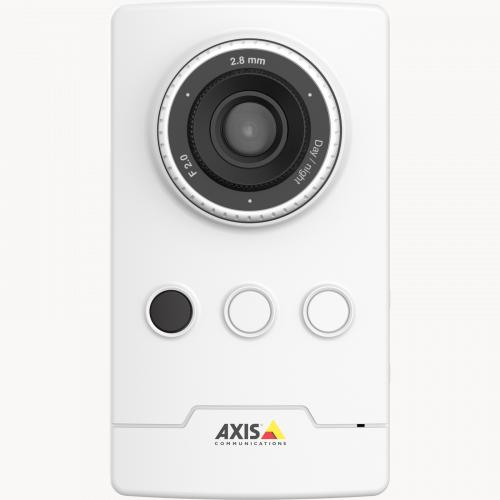

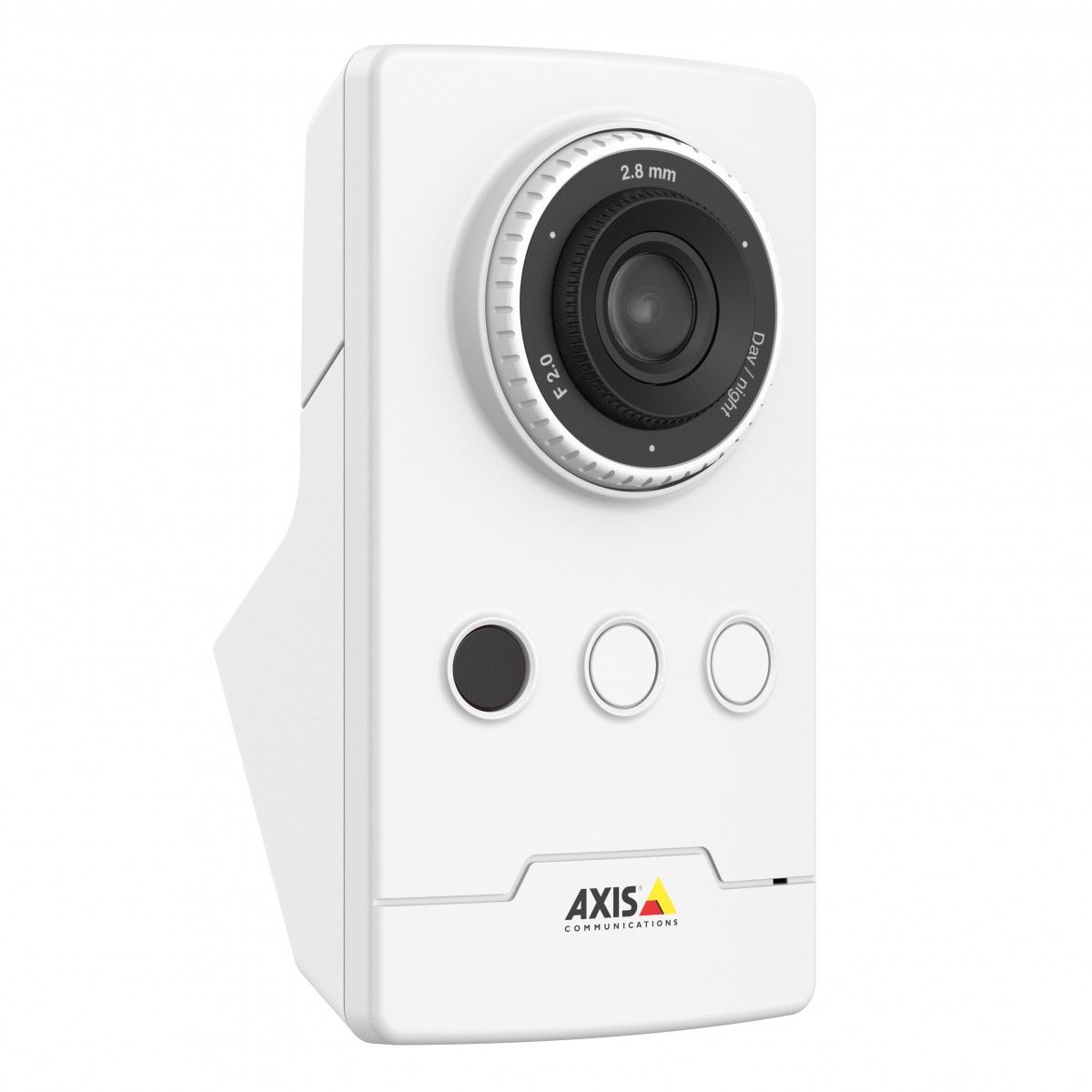

Axis' wireless HDTV 1080p network camera with edge storage and IR illumination
Product Overview

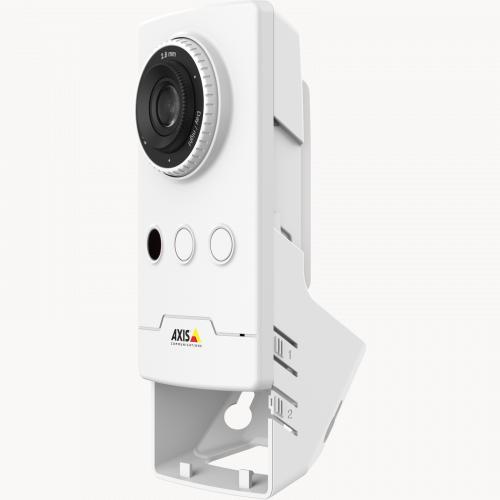

With M1045-LW is made for easy, foolproof installation, you just plug it in and press record. This wireless camera comes with a combined corner and wall bracket that lets anyone install it perfectly: Drop the camera in the bracket and it’s perfectly positioned to provide 110°coverage of the room. And AXIS M1045-LW is wireless, so there are no unnecessary cords or cables to worry about. Just place the camera in the bracket, plug it in and you’re ready to start recording.
You’ll always be able to see exactly what’s going on at your premises! Thank you for this camera that sees in the dar- regardless of time of day or lighting. With HDTV 1080p, it delivers excellent Axis image quality. Wide Dynamic Range (WDR) technology ensures you can see details even when there are dark and light areas in the scene. And IR illumination means you can record useful videos even in the dark.
In addition to an attractive price and easy installation, our discreet little camera saves you money in other ways too. For example, you can store footage on the camera on a memory card, which saves bandwidth and eliminates the need for a server. And a motion sensor means that AXIS M1045-LW only records when it detects movement.
Finally, Axis Zipstream technology lowers bandwidth and storage requirements by an average of 50%, while preserving high-quality images: Scenes containing interesting details are recorded in full image quality and resolution while other areas are filtered out, to optimally use available bandwidth and storage.
FEATURES
- Wireless communication and edge storage
- IR illumination
- Bracket for wall and corner mount
- HDTV 1080p resolution at 30 fps
- WDR
Product Specifications
| Camera | |
| Image Sensor | 1/3" progressive scan RGB CMOS sensor |
| Lens | 2.8mm, f/2.0 Fixed iris, IR corrected |
| Mount | M12 |
| Field of View | Horizontal: 110° Vertical: 61° |
| Day/Night | Automatically removable IR cut filter |
| Minimum Illumination | Color: 0.25 lux at 50 IRE, f/2.0 B/W: 0.05 lux at 50 IRE, f/2.0 0 lux with IR illuminator on |
| Shutter Speed | 1/28,000 to 1/5 sec (50 Hz) 1/32,500 to 1/5 sec (60 Hz) |
| PTZ | Digital |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles, MJPEG |
| Resolution | 1920 x 1080 to 320 x 240 |
| Frame Rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Streaming | Multiple, individually configurable streams in H.264 (main, baseline, and high profiles) and MJPEG Axis' Zipstream technology in H.264 Controllable frame rate and bandwidth Variable bitrate, constant bit rate H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation (0, 180°), text and image overlay, privacy masks, mirroring of images, WDR |
| Network | |
| Wireless Interface | Internal antenna IEEE 802.11a/b/g/n at 2.4 or 5 GHz |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (Wi-Fi Protected Setup PBC compatible) |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, support for Axis Camera Application Platform, Cross Line Detection, Digital Autotracking and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action | File Upload: FTP, HTTP, network share, and email Notification: Email, HTTP, HTTPS, and TCP Pre- and post-alarm video buffering Video recording to edge storage, activation of IR LED, overlay text |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | Polycarbonate, aluminum, recycled plastic |
| Sustainability | PVC-free, 64% recycled plastic |
| Memory | 512 MB RAM, 256 MB flash |
| Power | 4.75-5.25 VDC, typical 2.7 W, maximum 4.4 W |
| IR LED Range | Up to 32' (10 m), adjustable intensity |
| Connectors | Micro-USB Type B for power only RJ45 10Base-T/100Base-TX |
| Storage | Support for microSD/microSDHC/microSDXC card (available separately), recording to dedicated network-attached storage (NAS) (available separately) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10 to 85% RH, non-condensing |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Video Management Software | Axis Companion video management software, Axis Camera Station, video management software from Axis' Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 4.2 x 2.4 x 1.5"(106 x 60 x 37 mm) |
| Weight | 0.28 lb (127 g) |
