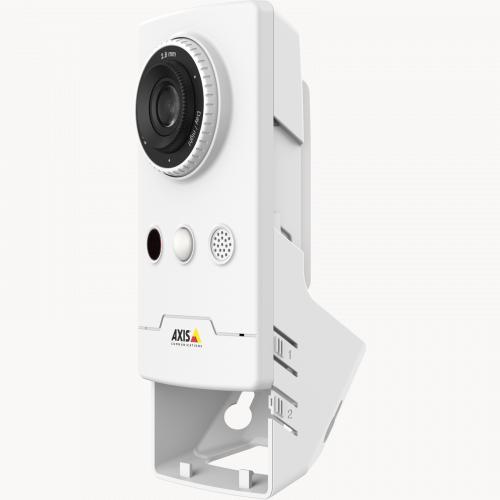

Axis M1065-L
POSMarket SKU: Z14950
0811-001: M1065-L Cube Camera, 1080p, H.264, 10m IR, PoE, Zipstream, 110deg Fixed Lens
Axis' Full-featured HDTV 1080p Network Camera with PoE, edge storage and built - in microphone.
Product Overview
With AXIS M1065-L, you can detect intruders and warn them off your premises before it’s too late. AXIS M1065-L is equipped with a microphone and a speaker, so you can record a motion-triggered message that will send thieves and vandals packing. And the camera can alert you to the situation and deliver footage to your PC, tablet or smart phone, so you can alert the police fast. Plus, AXIS M1065-L can be powered either over Ethernet or by power supply. The choice is yours.
In addition to an attractive price and easy installation, our discreet little camera saves you money in other ways too. For example, you can store footage on the camera on a memory card, which saves bandwidth and eliminates the need for a server. And a motion sensor means that AXIS M1065-L only records when it detects movement. Finally, Axis Zipstream technology lowers bandwidth and storage requirements by an average of 50%, while preserving high-quality images.
FEATURES
- Built-in microphone and mini-speaker
- PIR motion sensor
- Power over Ethernet
- Bracket for wall and corner mount
- IR illumination
Product Specifications
| Camera | |
| Image Sensor | 1/3" progressive scan RGB CMOS sensor |
| Lens | 2.8mm, f/2.0 Fixed iris, IR corrected |
| Mount | M12 |
| Field of View | Horizontal: 110° Vertical: 61° |
| Day/Night | Automatically removable IR cut filter |
| Minimum Illumination | Color: 0.25 lux at 50 IRE, f/2.0 B&W: 0.05 lux at 50 IRE, f/2.0 0 lux with IR illuminator on |
| Shutter Speed | 1/28,000 to 1/5 sec (50 Hz) 1/32,500 to 1/5 sec (60 Hz) |
| PTZ | Digital |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles, MJPEG |
| Resolution | 1920 x 1080 to 320 x 240 |
| Frame Rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Streaming | Multiple, individually configurable streams in H.264 (main, baseline and high profiles) and MJPEG Axis' Zipstream technology in H.264 Controllable frame rate and bandwidth Variable bit rate, constant bit rate H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation (0, 180°), text and image overlay, privacy masks, mirroring of images, WDR |
| Audio | |
| Streaming | Two-way, half duplex |
| Compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate |
| Input/Output | Built-in microphone (can be disabled), built-in speaker 82 dB-SPL at 20" (0.5 m) |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, audio detection Support for Axis Camera Application Platform, Cross Line Detection, Digital Autotracking, and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action | File Upload: FTP, HTTP, network share, and email Notification: Email, HTTP, HTTPS, and TCP Pre- and post-alarm video buffering Video and audio recording to edge storage, activation of IR LED, audio clip playback, overlay text |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | Polycarbonate, aluminum, recycled plastic |
| Sustainability | PVC-free, 64% recycled plastic |
| Memory | 512 MB RAM, 256 MB flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at type 1 Class 2, typical 2.7 W, maximum 4.8 W 4.75 to 5.25 VDC, typical 2.5 W, maximum 4.7 W |
| IR LED Range | Up to 32' (10 m), adjustable intensity |
| PIR Sensor | Up to 19.7' (6 m) |
| Connectors | Micro-USB Type B for power only RJ45 10Base-T/100Base-TX PoE |
| Storage | Support for microSD/microSDHC/microSDXC card (available separately), recording to dedicated network-attached storage (NAS) (available separately) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10 to 85% RH, non-condensing |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Video Management Software | Axis Companion video management software, Axis Camera Station, video management software from Axis' Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions | 4.2 x 2.4 x 1.5" (106 x 60 x 37 mm) |
| Weight | 0.3 lb (134 g) |
