Axis M1065-LW

$605.00 (incl. GST)

POSMarket SKU: Z14946

0810-006: M1065-LW Cube Camera, 1080p, H.264, 10m IR, WiFi, Zipstream, 110deg Fixed Lens

Axis' network cube camera
Full-featured wireless HDTV 1080p camera with edge storage

Product Overview

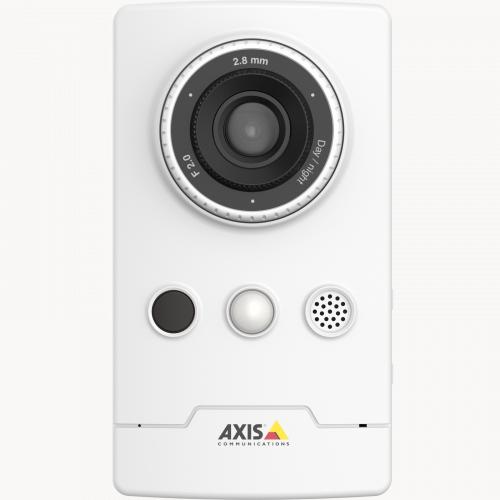

The Axis M1065-LW features wireless communication and supports microSD card for edge storage. It has a built-in microphone for recording audio, a mini-speaker that can announce pre-recorded messages and a PIR motion sensor for detecting movement even in the dark. The WDR enabled camera offers 1080p resolution at full frame rate, day and night functionality with a mechanical IR cut filter, and IR illumination. It is easy to install with included wall and corner bracket, and has a 110 degree horizontal field of view.

The M1065-LW 1080p Wi-Fi Camera with Night Vision from Axis Communications features a 1/3" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. This camera comes with an adjustable mount that allows you to position the 110°wide-angle lens to monitor the area needed. An IR cut filter and IR LED allow the camera to produce clear images of objects up to 32' away in complete darkness and a built-in PIR motion sensor provides accurate motion detection. With the Wide Dynamic Range (WDR) further helps the camera in varying lighting conditions.

In addition to that, this camera, you can detect intruders and warn them off your premises before it’s too late. AXIS M1065-LW is equipped with a microphone and a speaker, so you can record a motion-triggered message that will send thieves and vandals packing. And the camera can alert you to the situation and deliver footage to your PC, tablet or smart phone, so you can alert the police fast. With AXIS M1065-LW, you can even store footage on the camera on a memory card, which saves bandwidth and eliminates the need for a server, and connects wirelessly via Wi-Fi for a quick and secure setup. Also a motion sensor means that the camera only records when it detects movement.

FEATURES
  • Wireless communication and edge storage
  • Built-in microphone and mini-speaker
  • PIR motion sensor

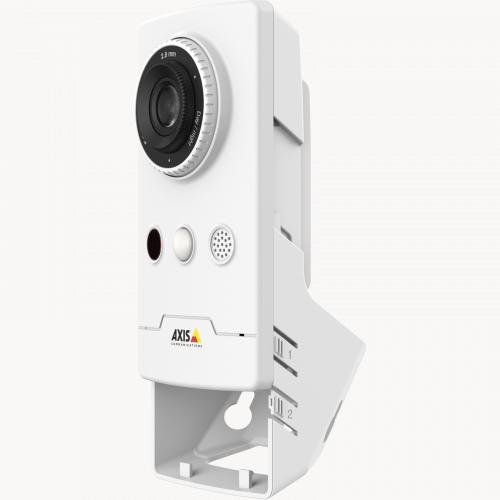

  • Bracket for wall and corner mount
  • IR illumination

Product Specifications

Camera
Image Sensor 1/3" progressive scan RGB CMOS sensor
Lens 2.8mm, f/2.0
Fixed iris, IR corrected
MountM12
Field of View Horizontal: 110°
Vertical: 61°
Day/Night Automatically removable IR cut filter
Minimum Illumination Color: 0.25 lux at 50 IRE, f/2.0
B&W: 0.05 lux at 50 IRE, f/2.0
0 lux with IR illuminator on
Shutter Speed 1/28,000 to 1/5 sec (50 Hz)
1/32,500 to 1/5 sec (60 Hz)
PTZ Digital
Video
Compression H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles, MJPEG
Resolution 1920 x 1080 to 320 x 240
Frame Rate Up to 25/30 fps (50/60 Hz) in all resolutions
Streaming Multiple, individually configurable streams in H.264 (main, baseline and high profiles) and MJPEG
Axis' Zipstream technology in H.264
Controllable frame rate and bandwidth
Variable bit rate, constant bit rate H.264
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation (0, 180°), text and image overlay, privacy masks, mirroring of images, WDR
Audio
Streaming Two-way, half duplex
Compression AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Input/Output Built-in microphone (can be disabled), built-in speaker 82 dB-SPL at 20" (0.5 m)
Network
Wireless Interface Internal antenna
IEEE 802.11a/b/g/n at 2.4 or 5 GHz
Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (Wi-Fi Protected Setup PBC compatible)
Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System Integration
Application Programming Interface Open API for software integration, including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S
Analytics Axis Video Motion Detection 3, audio detection
Support for Axis Camera Application Platform, Cross Line Detection, Digital Autotracking and third-party applications
Event Trigger Analytics, edge storage events
Event Action File upload: FTP, HTTP, network share, and email
Notification: Email, HTTP, HTTPS, and TCP
Pre- and post-alarm video buffering
Video and audio recording to edge storage, activation of IR LED, audio clip playback, overlay text
Data Streaming Event data
Built-In Installation Aids Pixel counter
General
Casing Polycarbonate, aluminum, recycled plastic
Sustainability PVC-free, 64% recycled plastic
Memory 512 MB RAM, 256 MB flash
Power 4.75 to 5.25 VDC
Typical 2.7 W, maximum 5 W
IR Range Up to 32' (10 m), adjustable intensity
PIR Sensor Configurable sensitivity. Maximum range of 19.7' (6 m)
Connectors Micro-USB Type B for power only
RJ45 10Base-T/100Base-TX
Storage Support for microSD/microSDHC/microSDXC card (available separately), recording to dedicated network-attached storage (NAS) (available separately)
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 85% RH, non-condensing
Storage Temperature -40 to 149°F (-40 to 65°C)
Video Management Software Axis Companion video management software, Axis Camera Station, video management software from Axis' Application Development Partners
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Dimensions 4.2 x 2.4 x 1.5" (106 x 60 x 37 mm)
Weight 0.28 lb (127 g)
