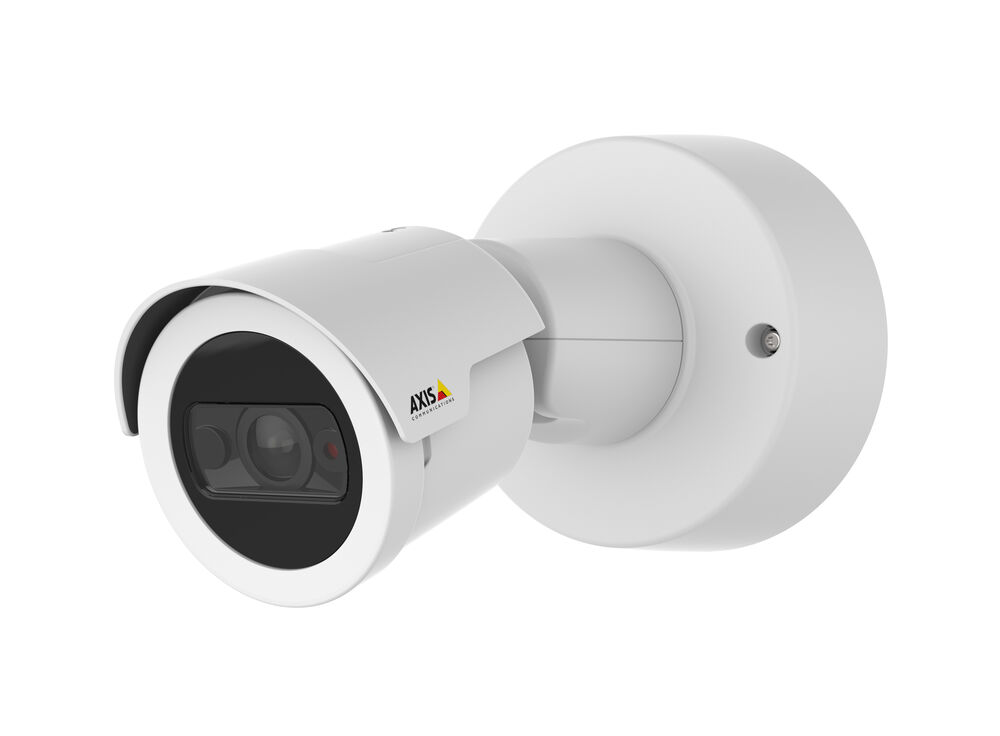

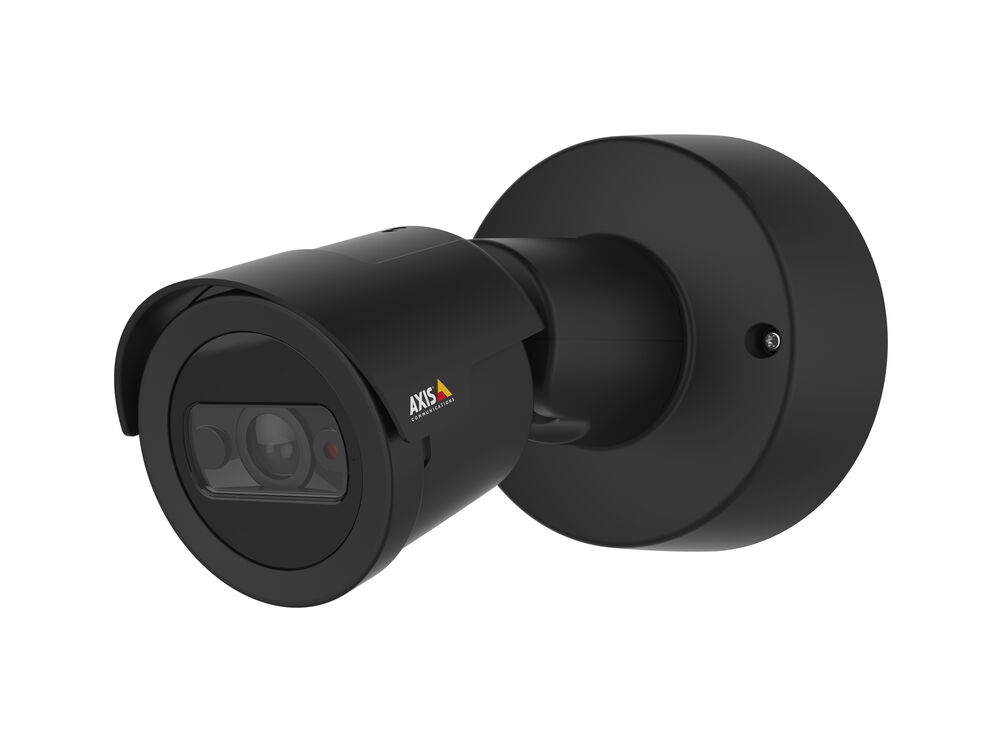

Axis M2026-LE Mk II
POSMarket SKU: Z14832
01049-001: M2026-LE MK II 4MP Bullet Camera, H.264/5, IR, PoE, IP66 IK08, 130deg Lens
Axis Network Camera. Affordable, outdoor-ready camera with 4 MP and built-in IR
Product Overview
Axis Zipstream technology compresses video footage in H.264 and H.265, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a number of safety features, including password protection, IP address filtering, user access logging, digest authentication, HTTPS encryption, and Centralized Certificate Management.
This device will send an email notification or store video recordings of an event to your edge storage when it occurs. It is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IP66-, IK08-, and NEMA 4X-rated making it suitable for outdoor use.
FEATURES
- Outdoor-ready, IP66- and NEMA 4X-rated
- 4 MP / Quad HD 1440p
- Built-in IR illumination
- 130deg field of view
- Zipstream and H.265 video compression
Product Specifications
| Camera | |
| Image Sensor | 1/3" progressive scan RGB CMOS |
| Lens | M12 mount, fixed iris, fixed focus |
| 2.4mm, f/2.2 | Horizontal Field of View: 130° Vertical Field of View: 73° |
| Day and Night | Automatically removable infrared cut filter |
| Minimum Illumination | Color: 0.3 lux at 50 IRE, f/2.2 B&W: 0.06 lux at 50 IRE, f/2.2 0 lux with IR illumination on |
| Shutter Time | 1/31,500 to 1/5 sec |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles H.265 (MPEG-H Part 2) MJPEG |
| Resolution | 2688 x 1520 to 320 x 240 |
| Frame Rate | Up to 25/30 fps with power line frequency 60/50 Hz |
| Streaming | Multiple, individually configurable streams in H.264, H.265, and MJPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/MBR H.264/H.265 |
| Multi-View Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control WDR, Rotation: 0, 90, 180, and 270° including corridor format, text and image overlay, privacy masks, mirroring of images |
| Pan/Tilt/Zoom | Digital PTZ |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, Centralized Certificate Management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S and ONVIF Profile G |
| Analytics | Included AXIS Video Motion Detection, active tampering alarm Supported AXIS Digital Autotracking, AXIS Cross Line Detection Support for AXIS Camera Application Platform enabling installation of and third-party applications |
| Event Triggers | Analytics, edge storage events |
| Event | |
| Actions | Notification: Email, HTTP, HTTPS, and TCP and SNMP trap Video recording to edge storage Send video clip Pre- and post-alarm video buffering Overlay text Data Streaming Event data |
| Built-In Installation Aids | Pixel counter |
| General | |
| Casing | IP66-, NEMA 250 Type 4X-, and IK08-rated, polymer casing Encapsulated electronics, captive screws (Torx 10) |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5.1 W, max 7.9 W |
| Connectors | 1 x RJ45 10base-T/100base-TX PoE |
| IR Illumination | Power-efficient, long-life 850 nm IR LEDs |
| Range of reach | up to 50' (15 m) depending on scene |
| Storage | Support for microSD/SDHC/SDXC card Support for recording to network-attached storage (NAS) |
| Operating Temperature | -22 to 122°F (-30 to 50°C) |
| Relative Humidity | 10 to 100% (condensing) |
| Storage Temperature | 40 to 149°F (-40 to 65°C) |
| General | |
| Dimensions | Straight: 4 x 6.9" (101 x 174 mm) Angled: 4 x 4.6" (101 x 118 mm) |
| Weight | 1.1 lb (0.5 kg) |
