Axis P1244
$605.00 (incl. GST)
POSMarket SKU: Z14957
0896-001: P1244 Network Camera, 720p, H.264, Zipstream, PoE, 2.1mm, 102deg Fixed Lens
Axis' small, cost-effective, highly discreet indoor modular network camera with HDTV 720p performance.
Product Overview
The Axis P1244 is a small, cost-effective modular camera with HDTV 720p performance. The indoor camera is ideal for use in highly discreet installations such as in retail stores, banks and museums, and for installation in tight places such as in ATMs (automated teller machines), ticket, vending and health monitoring machines.

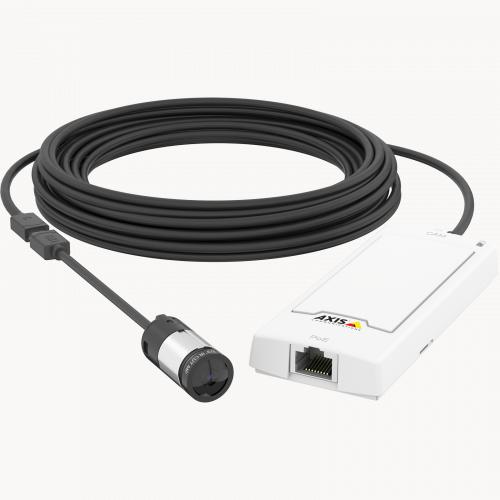

The P1244 720p Network Modular Camera from Axis Communications captures 1280 x 720 resolution video at up to 30 fps thanks to its 1/4" progressive scan RGB CMOS sensor. Its 2.1mm fixed lens provides a wide 102°field of view to monitor a large room. This compact camera features a 26' detachable cable in order to provide a discreet connection between the sensor and base unit. To further ease installation, this camera has an RJ45 Ethernet connection with PoE and comes with a flush mount kit.

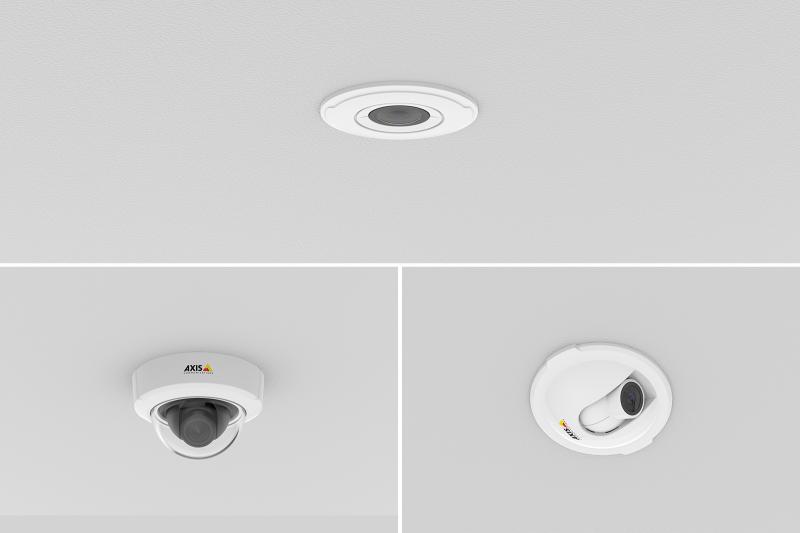

The Small sensor unit is a thumb-sized unit that offers a 102° horizontal field of view and provides color video in light as low as 0.4 lux. The sensor unit can be integrated in machines, or mounted in doorways, walls and ceilings with the included flush mount kit. Optional surface and recessed mounts enable the sensor unit to be tilted in the desired viewing direction.
And the compact main unit, is with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
The P1244 720p Network Modular Camera from Axis Communications captures 1280 x 720 resolution video at up to 30 fps thanks to its 1/4" progressive scan RGB CMOS sensor. Its 2.1mm fixed lens provides a wide 102°field of view to monitor a large room. This compact camera features a 26' detachable cable in order to provide a discreet connection between the sensor and base unit. To further ease installation, this camera has an RJ45 Ethernet connection with PoE and comes with a flush mount kit.
The Small sensor unit is a thumb-sized unit that offers a 102° horizontal field of view and provides color video in light as low as 0.4 lux. The sensor unit can be integrated in machines, or mounted in doorways, walls and ceilings with the included flush mount kit. Optional surface and recessed mounts enable the sensor unit to be tilted in the desired viewing direction.
And the compact main unit, is with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
FEATURES
- HDTV 720p and 102 degree horizontal field of view
- Easy and highly discreet installation
- Axis' Zipstream technology
- Built-in microSD card slot
- Power over Ethernet
Product Specifications
| Camera | |
| Image Sensor | 1/4" (effective) progressive scan RGB CMOS sensor |
| Lens | Fixed iris, 2.1mm, f/2.2 |
| Field of View | Horizontal: 102° Vertical: 56° |
| Minimum Illumination | Color: 0.4 lux |
| Shutter Time | 1/24500 to 1/6 s |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, high profiles and MJPEG |
| Resolutions | 1280 x 720 to 480 x 270 |
| Frame Rate | 25/30 fps (50/60 Hz) |
| Video Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth VBR/CBR H.264 Axis Zipstream technology in H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, corridor format, text and image overlay, privacy mask, mirroring of images, wide dynamic range (dynamic contrast) |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, and ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, active tampering alarm support for Axis Camera Application Platform enabling installation of Axis Cross Line Detection and third-party applications |
| Event Trigger | Analytics, edge storage events |
| Event Action | File upload: FTP, SFTP, HTTP, HTTPS, network share Notification: Email, HTTP, HTTPS, and TCP Pre- and post-alarm video buffering Send SNMP trap, WDR mode |
| Installation | Built-in pixel counter |
| Data Streaming | Event data |
| General | |
| Casing | P12 Mk II Main Unit: Steel and plastic F1004 Sensor Unit: Zinc and plastic |
| Memory | 512 MB RAM, 256 MB flash |
| Power | PoE IEEE 802.3af/at Type 1 Class 2 Maximum: 4.0 W Typical: 2.5 W |
| Connectors | RJ45 10Base-T/100Base-TX Ethernet RJ12 for sensor unit |
| Storage | Support for microSD/microSDHC/microSDXC card up to 64 GB (available separately) Support for recording to dedicated network-attached storage (NAS) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Operating Humidity (Relative) | 10 to 85% RH (condensing) |
| Video Management Software | Axis Camera Companion, Axis Camera Station |
| Dimensions | P12 Mk II Main Unit: 0.65 x 1.8 x 4.3" (16.5 x 46 x 109 mm) F1004 Sensor Unit: 1.5 x 0.63" (37.5 x 16 mm) Sensor Unit Cable: 26' (8 m) |
| Weight | P12 Mk II Main Unit: 2.5 oz (72 g) F1004 Sensor Unit: 0.78 oz (22 g) Sensor Unit Cable: 4.5 oz (128 g) |
