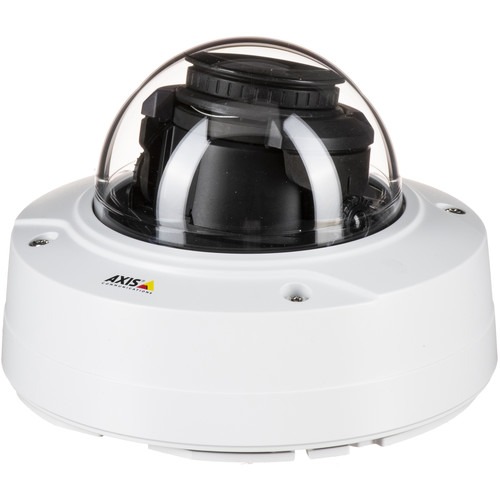

Axis P3228-LV
$1,981.38 (incl. GST)
POSMarket SKU: Z14830
0887-001: P3228-LV 8MP Dome Camera, H.264, Zipstream, IR, 4K, PoE, IK8, 3.5-10mm VF Lens
AXIS P32- LV Series Network Camera, Streamlined 4K fixed dome for any light conditions
Product Overview
The AXIS P3228-LV is a streamlined 4K fixed dome that features a varifocal lens with remote zoom and focus, which facilitates installation and eliminates the need for hands-on fine tuning. Equipped with Forensic WDR to handle scenes with strong variations in light, Lightfinder technology, as well as built-in IR illumination with OptimizedIR, this versatile camera provides exceptional video quality in any light conditions. It supports Axis Zipstream technology that significantly reduces bandwidth and storage requirements.
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a slew of sophisticated safety features, including password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access logging, and centralized certificate management.
This device will send an email notification or store video recordings of an event to your edge storage when it occurs. It is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IK08-rated for impact protection.
FEATURES
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a slew of sophisticated safety features, including password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access logging, and centralized certificate management.
This device will send an email notification or store video recordings of an event to your edge storage when it occurs. It is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IK08-rated for impact protection.
FEATURES
- 4K video in full frame rate
- Forensic WDR and Lightfinder
- OptimizedIR illumination
- Remote zoom and focus
- Zipstream for reduced bandwidth and storage needs
Product Specifications
| Camera | |
| Image Sensor | 1/2.5" progressive scan RGB CMOS |
| Lens | Varifocal, 3.5-10mm, f/1.7 Horizontal Field of View: 100-38° Vertical Field of View: 51-22° Remote zoom and focus, P-iris control, IR corrected |
| Day and Night | Automatically removable infrared cut filter |
| Minimum Illumination | Color: 0.19 lux, f/1.7 B&W: 0.04 lux, f/1.7, 0 lux with IR illumination on |
| Shutter Time | 1/62,500 to 2 seconds |
| Pan / Tilt / Rotate | Pan ±180°/ tilt -40 to 75° / rotation ±95° |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles MJPEG |
| Resolution | 3840 x 2160 to 160 x 190 |
| Frame Rate | 25/30 fps with power line frequency 60/50 Hz |
| Streaming | Multiple, individually configurable streams in H.264 and MJPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Multi-View Streaming | 8 individually cropped out view areas |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Image Settings | Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behavior at different light levels, Forensic WDR: up to 120 dB depending on scene, text and image overlay, mirroring of images, privacy masks, Rotation: 0, 90, 180, and 270°, including corridor format |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles S and G |
| Analytics | Included AXIS Video Motion Detection, active tampering alarm Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Event Triggers | Analytics, edge storage events, virtual inputs through API |
| Event Actions | File upload via FTP, SFTP, HTTP, HTTPS network share, and email Notification via email, HTTP, HTTPS, TCP, and SNMP trap Overlay text, video recording to edge storage, pre- and post-alarm video buffering, send video clip, IR illumination on/off |
| Data Streaming | Event data |
| Built-In Installation Aids | Remote zoom, remote focus, pixel counter |
| General | |
| Casing | IP52-rated, IK08 impact-resistant, polycarbonate casing with hard-coated dome and dehumidifying membrane Encapsulated electronics and captive screws Color: White NCS S 1002-B |
| Sustainability | PVC free |
| Memory | 1 GB RAM, 512 MB flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Max 11.5 W, typical 8.6 W |
| Connectors | 1 x RJ45 10base-T/100base-TX PoE |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 100' / 30 m or more depending on the scene |
| Storage | Support for microSD/SDHC/SDXC card SD card encryption Support for recording to network-attached storage (NAS) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Relative Humidity (non-condensing) | 10 to 85% |
| Storage Temperature | 40 to 149°F / -40 to 65°C |
| General | |
| Dimensions | 5.8 x 4" / 149 x 101 mm |
| Weight | 1.2 lb / 550 g |
