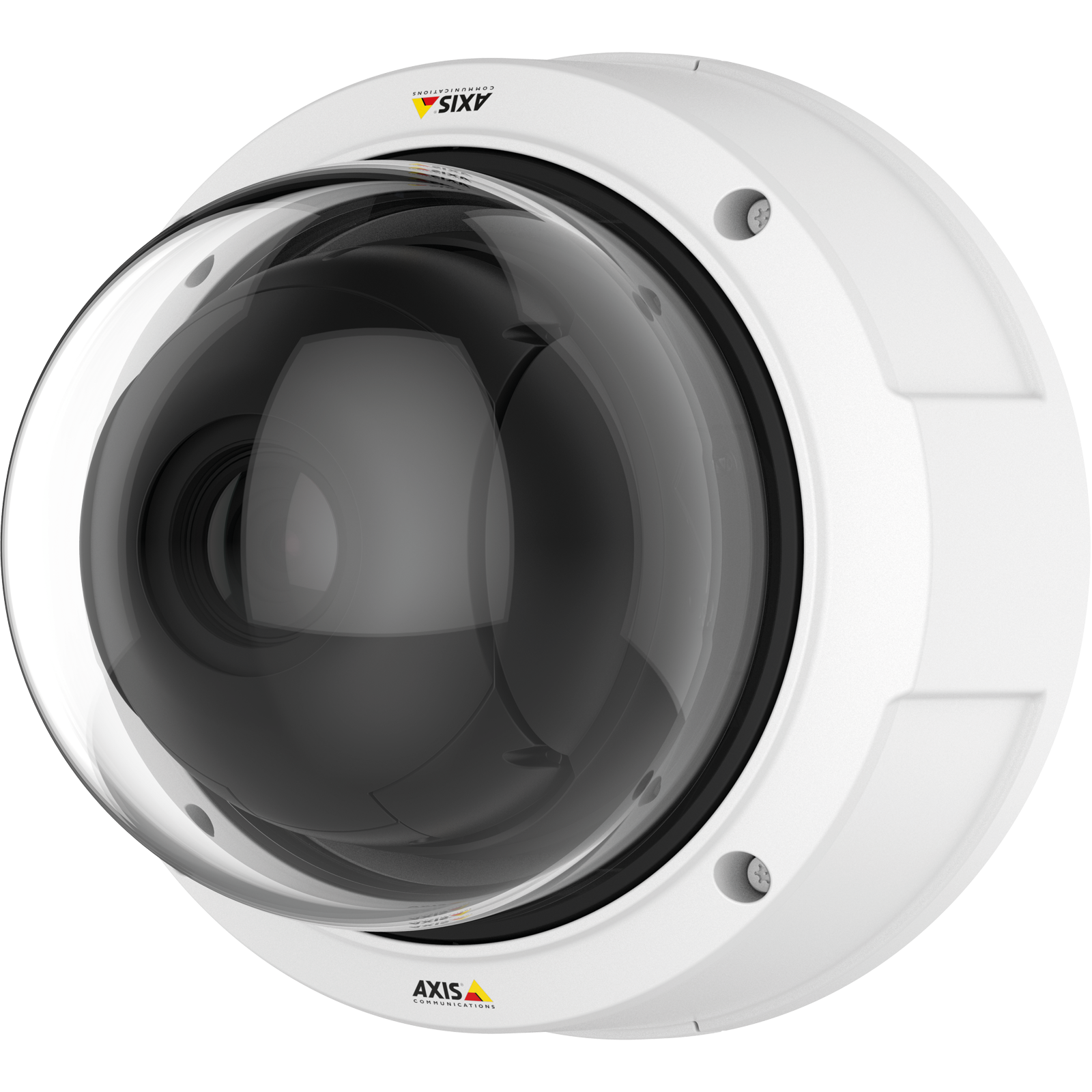

Axis Q3617-VE
POSMarket SKU: Z14858
0744-001: Q3617-VE 4MP Dome Camera, H.264, PoE, 1/1.8" Sensor, WDR, 4.1-9mm VF Lens
Axis' outstanding image quality with easy installation Network Camera.
Product Overview
Thanks to its 1/1.8" sensor and high-performance image processing, AXIS Q3617-VE supports Lightfinder and WDR -Forensic Capture with optimal image quality in difficult light conditions. It provides 4 MP at 30 fps with WDR, or 6 MP at 20 fps with WDR disabled. AXIS Q3617-VE offers a unique remote pan/tilt/roll/zoom (PTRZ) solution, easy conduit connection and cable management for minimized installation time. The PTRZ capability is also useful if the camera needs to be redirected. Robust and reliable, AXIS Q3617-VE is designed for harsh environments. Electronic image stabilization delivers steady images even during vibrations.
FEATURES
Top of the line image quality - always
With our biggest sensors ever in a fixed dome camera, AXIS Q3617-VE provides the best possible image quality no matter what. WDR – Forensic Capture lowers noise and increases the image signal when there are both light and dark areas in a scene for forensic optimization. Axis Lightfinder technology delivers sharp color images in poor light conditions. And electronic image stabilization keeps the picture steady. AXIS Q3617-VE also gives you up to 6 MP at 20 fps without WDR or up to 4 MP at 30fps with WDR. And Axis Zipstream technology - saves bandwidth and storage by up to 50% without
When efficiency is of the essence
AXIS Q3617-VE offers a unique solution: our remote PTRZ pan/tilt/roll/zoom feature. It allows for exceptionally speedy and efficient installation to keep costs and time low. And, if circumstances sometimes require you to readjust the view of the camera, remote PTRZ makes it possible to make changes from afar, without ever pausing the recording.
A camera that can take it
With its robust mechanical design, AXIS Q3617-VE is ready for outdoor installation in tough environments. It features IK10 vandal resistance, vibration resistance and shock detection. So you can count on your critical surveillance system staying up and running no matter what.
Product Specifications
| Camera | |
| Image Sensor | 1/1.8" progressive scan RGB CMOS sensor |
| Focal Length | 4.1-9mm |
| Control | Remote focus and zoom, P-iris control, IR corrected |
| Field of View | 6 MP Horizontal: 101-46° 4 MP 16:9 Horizontal: 90-41° 6 MP Vertical: 66-30° 4 MP 16:9 Vertical: 49-23° |
| Day/Night | Automatic, removable IR cut filter |
| Minimum Illumination | Color: 0.18 lux at 50 IRE, f/1.6 B/W: 0.03 lux at 50 IRE, f/1.6 |
| Shutter Speed | 1/100,000 to 2 sec |
| Adjustments | Pan: 370° Tilt: +/-81° Roll: +/-110° |
| Video | |
| Compression | H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles MJPEG |
| Resolution | 3072 x 2048 to 160 x 90 |
| Frame Rates | 6 MP (3072 x 2048) without WDR: 20 fps 4 MP 16:9 (2720 x 1536) or 4:3 (2304 x 1728) with WDR: 25/30 fps with power line frequency 50/60 Hz |
| Streaming | Multiple, individually configurable streams in H.264 and MJPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Multi-View Streaming | Up to 4 individually cropped out view areas |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zone, noise reduction, fine tuning of behavior at low light, rotation (0, 90, 180, 270° and corridor format), text and image overlay, privacy mask, mirroring of images, Electronic Image Stabilization (EIS), barrel distortion correction |
| Wide Dynamic Range (WDR) | up to 115 dB |
| ePTZ | 2.2x optical zoom and 2x digital zoom Digital PTZ Optical zoom and digital PTZ preset positions |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, Centralized Certificate Management |
| Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform, Axis Video Hosting System (AVHS) with One-Click Connection, ONVIF Profile S |
| Analytics | Axis Video Motion Detection 3, active tampering alarm, support for Axis Camera Application Platform enabling installation of Axis Perimeter Defender, Axis Digital Autotracking, and third-party applications |
| Event Trigger | Analytics, edge storage events, shock detection |
| Event Action | File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: Email, HTTP, HTTPS, and TCP Video recording to edge storage, pre- and post-alarm video buffering, zoom or digital PTZ preset, overlay text, send SNMP trap |
| Data Streaming | Event data |
| Built-In Installation Aids | Pan/Tilt/Roll: Designed to withstand at least 200 full cycles Autoroll, remote zoom, remote focus, pixel counter |
| General | |
| Casing | IP66-, IP67-, IP6K9K-, IK10-, and NEMA-4X-rated casing with polycarbonate dome, aluminum base and dehumidifying membrane |
| Sustainability | PVC-free |
| Memory | 1 GB RAM, 256 MB flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power Consumption | Typical: 6.1 W Maximum: 11.4 W |
| Connectors | RJ45 10Base-T/100Base-TX PoE |
| Storage | Support for microSD/SDHC/SDXC card (available separately) Support for recording to dedicated network-attached storage (NAS) (available separately) |
| Operating Temperature | -40 to 140°F (-40 to 60°C) |
| Operating Humidity | 10-100% RH, condensing |
| Storage Temperature | -40 to 149°F (-40 to 65°C) |
| Video Management Software | Axis Camera Companion, Axis Camera Station, video management software from Axis Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |

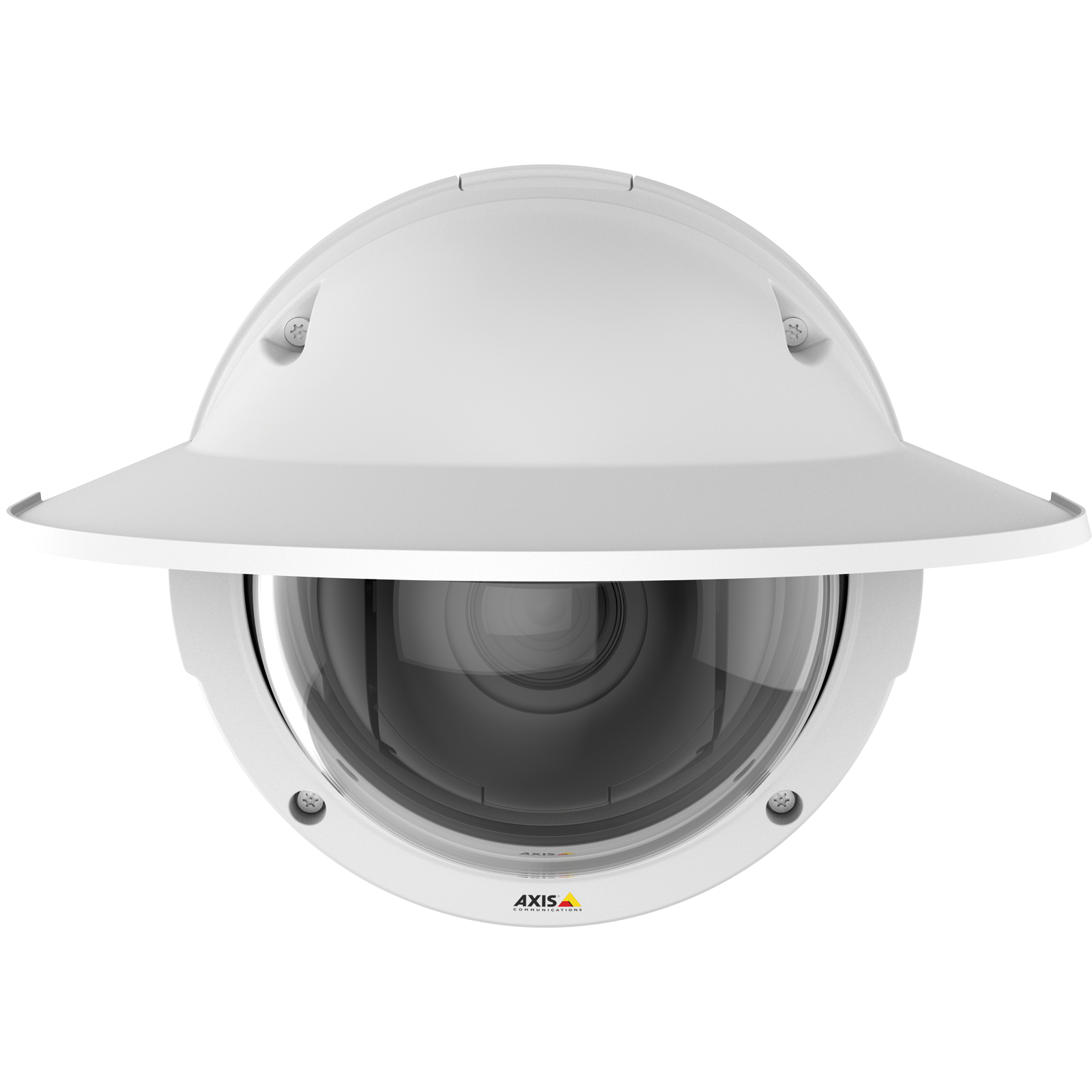

| Dimensions | Without Weather Shield: 6.5 x 7.8" (166 x 198 mm) With Weather Shield: 8.8 x 7.8" (224 x 198 mm) |
| Weight | With Weather Shield: 5.1 lb (2.3 kg) |
